5 Creating Measurement Scenes

5 - 6

Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

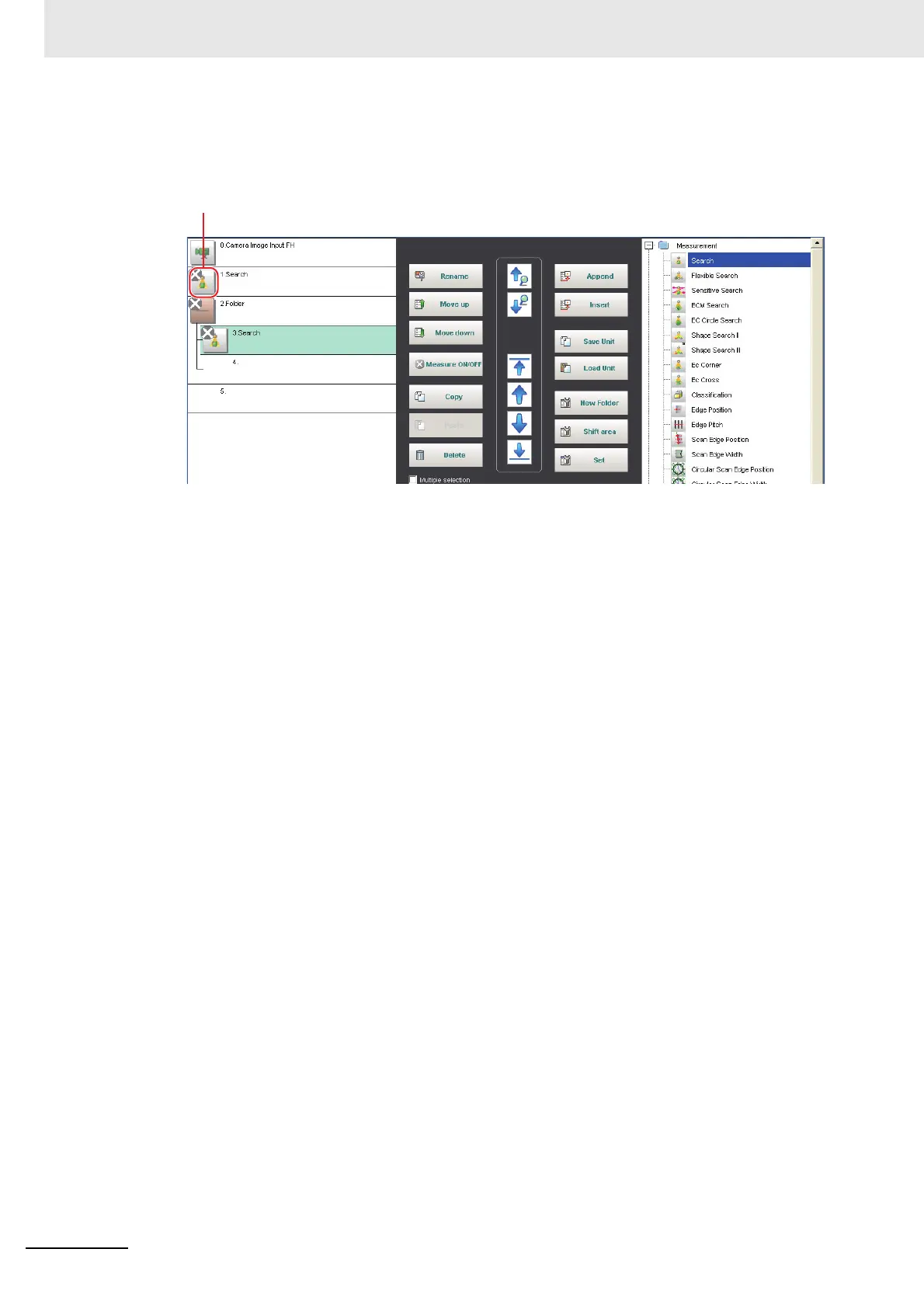

6 Either click the icon of the processing unit to be set or click the [Set] button.

The Properties Tab Page is displayed. Set detailed conditions. The displayed contents depend

on the processing item.

7 Set the conditions.

The displayed contents depend on the processing item.

Property setting buttons

Default Chapter16
