5 Creating Measurement Scenes
5 - 8
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

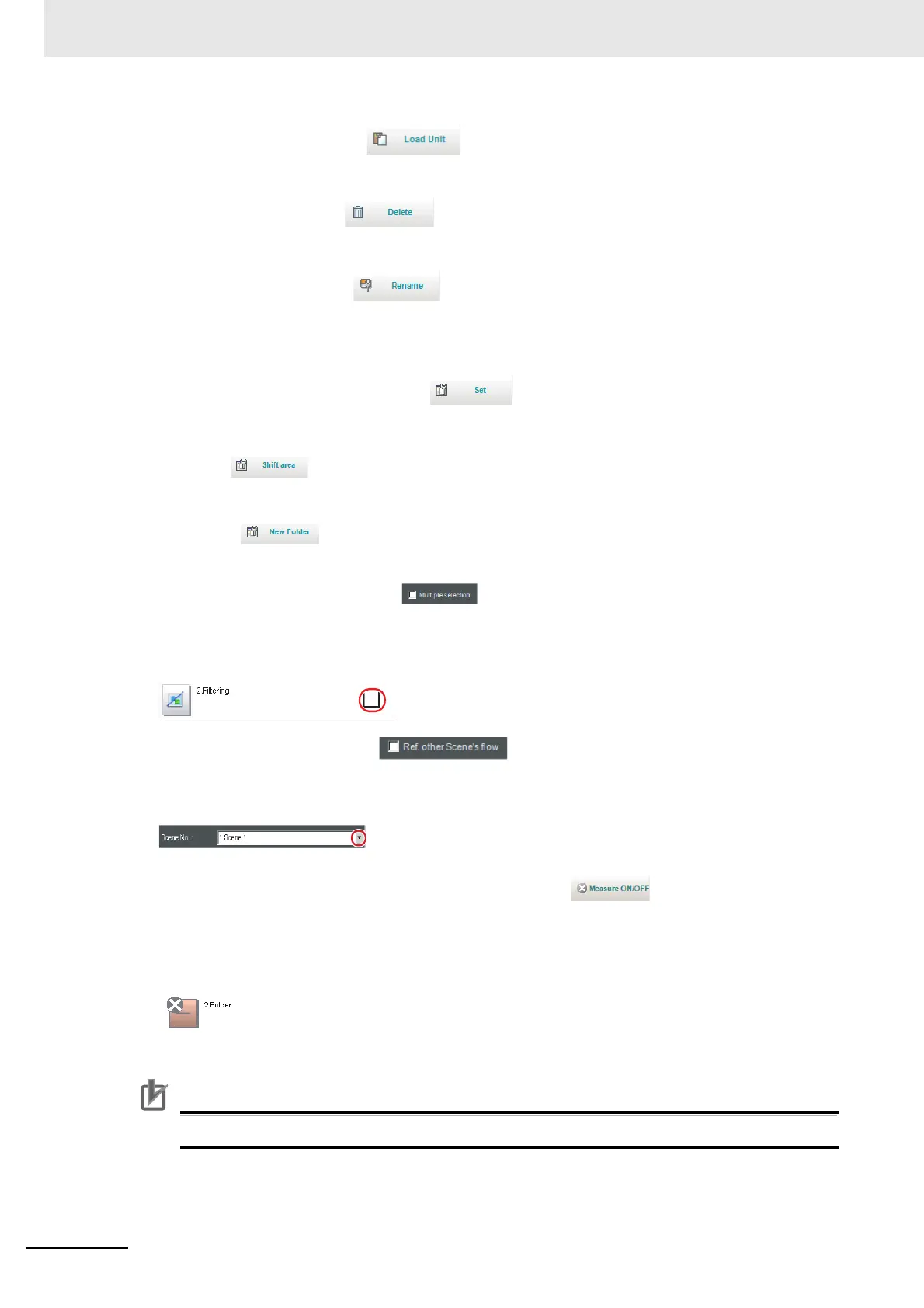

• Loading Processing Unit Data ( )
Loads the data for a processing unit from a file.
• Deleting a Processing Unit ( )
Deletes a processing unit from the scene.
• Renaming Processing Units ( )
Renames a processing unit in the scene. Unit names must begin with a character other than ° (semi-
voiced sound symbol) and (voiced sound symbol). Also, unit names cannot consist of only a sin-
gle-byte number, only a "+", or only a ".".
• Setting the Details of a Processing Unit ( )
Sets the properties of a processing unit in the scene.
• Shift Area ( )
Changes the related figure data in one batch.
• New Folder ( )
Used when multiple processing units are managed as a group.
• Handling Multiple Processing Units ( )
Used when processing units are copied or deleted together. Click the [Multiple selection] button to
display the check boxes for the processing items. The selected processing units can be manipulated
as a group.
• Referring to Other Scene Flows ( )
Units in other scenes can be referred to and added to the current scene flow.
• Selecting a scene to refer to displays the flow for that scene.
• Switching processing unit measurement execution ON/OFF ( )
You can switch off the processing unit within a scene so that measurement is not executed for indi-
vidual processing units. The processing unit that has been switched off cannot execute measure-
ment until switched on. Clicking the button toggles the measurement execution setting between ON
and OFF.
Make sure to enable Measure for the image input processing unit for unit 0 before use.
To Next Page
