5 - 63
5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-4 Using Variables
• When a variable is assigned to an Input parameter, the value of the Scene variable or Sys-
tem variable is set for the data assigned before the measurement is processed. If a nonexis-
tent variable is assigned, the assignment is ignored and the measurement is executed using
the current data. In this case, it does not affect the judgment of the processing unit.
• When a variable is assigned to an Output parameter, the value of the Scene variable or Sys-
tem variable is set for the data assigned after the measurement is processed. If a nonexistent
variable is assigned, the assignment is ignored. In this case, it does not affect the judgment
of the processing unit.
• When arranging a parallelized flow using Parallelize processing items, arrange the flow by
considering the execution timing of each variable.
• With a cell selected, its variable assignment setting can be deleted by depressing the [Del]
key on the keyboard or clicking [Delete] on the shortcut menu displayed by right-clicking.
• With a cell selected, its variable assignment setting can be copied by depressing [Ctrl]+[C] on
the keyboard or clicking [Copy] on the shortcut menu displayed by right-clicking.
• A copied variable assignment setting can be pasted to a selected cell by depressing
[Ctrl]+[V] on the keyboard or clicking [Paste] on the shortcut menu displayed by right-clicking.

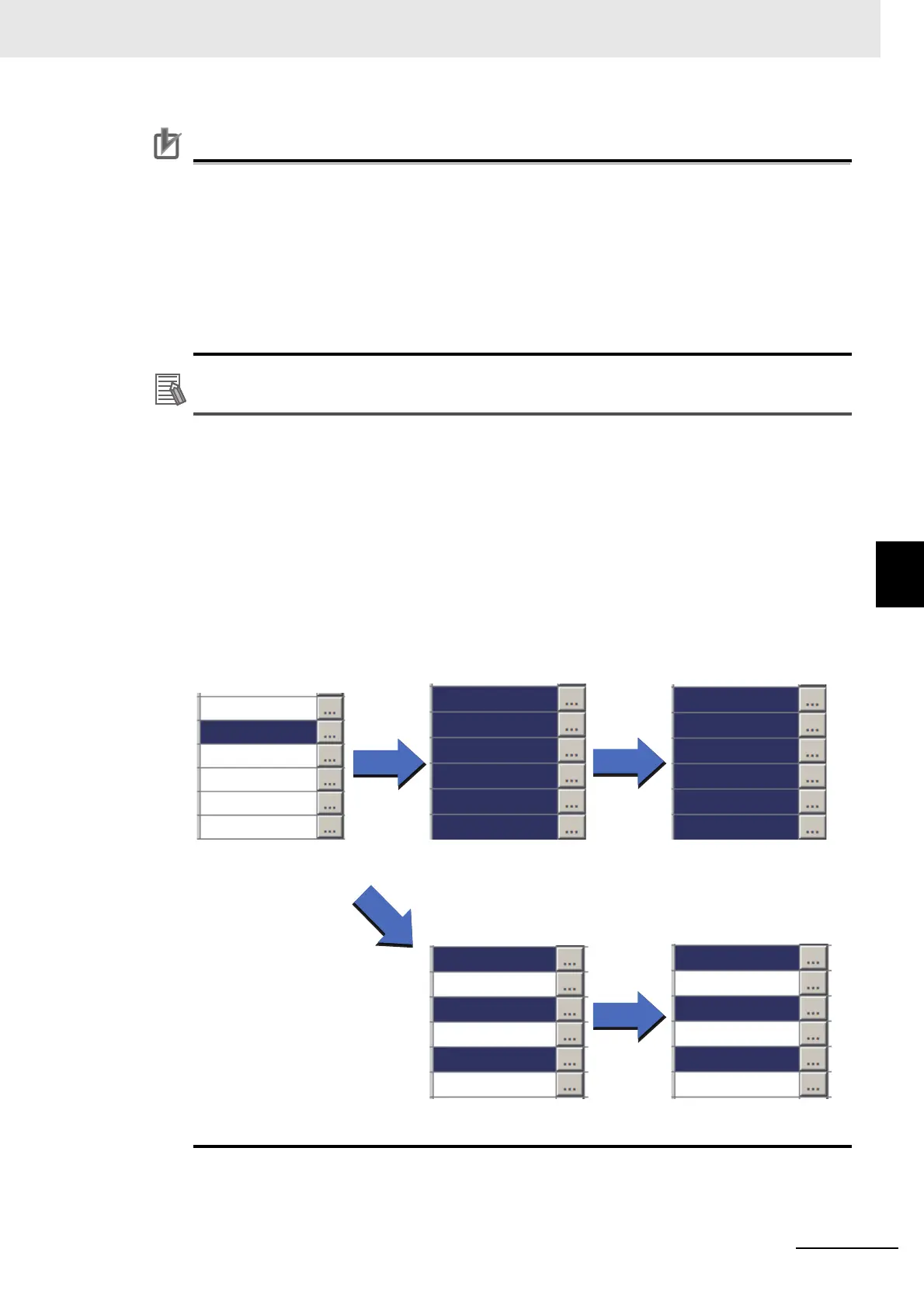

• With a cell selected to which an array variable with a numeric value in the index is assigned,
copy it and select multiple cells to be sequentially assigned. Depress [Ctril]+[B] on the key-
board or right-click and click [Sequential number paste] on the shortcut menu displayed. The
copied variable assignment setting is pasted to the selected cells while incrementing the
index number of the array variable by one.
Example:
Copy a cell with a numeric
value set in the array index
Select multiple cells Sequential number paste
Select multiple cells Sequential number paste
SY.ZZZ&&(2)
SY.ZZZ&&(3)
SY.ZZZ&&(4)
SY.ZZZ&&(2)
SY.ZZZ&&(3)
SY.ZZZ&&(4)
SY.ZZZ&&(5)
SY.ZZZ&&(6)
SY.ZZZ&&(7)
