6 Performing Measurement and Adjustment
6 - 26
Vision System FH/FHV/FZ5 Series Users Manual (Z365)
The network drive function is useful when you need to log image data or measurement data directly to
a computer that is connected by Ethernet.
You can specify the shared folder on a computer that is connected by Ethernet as the destination for
logged images or logged data.
Direct reading and writing with the computer eliminates the need for reading and writing through exter-
nal storage devices. At the same time, it also eliminates the need to stop measurements to insert or
remove the external storage device.
Setting Up the Network Drive
Register the shared folder on a network drive with a shared name.
1 Select [Tool] menu [System settings] [Other] [Network drive setting].
2 Select the shared name to be registered, and click [Edit].
3 Enter the information to be allocated to the network drive (shared name), such as the shared
folder, user name, and password.
4 The shared folder on the connected computer will appear in the [Select file/folder] dialog box.
Specifying a Network Drive as a Logging Destination
To import logging data to a computer, you specify a shared folder on the computer as the logged
data destination.
Additional Information
The data saving time depends on the conditions of the network and the destination drive.
Be sure to check the operation thoroughly with the actual devices that will be used.
Saving Logged Data Directly to a Shared Folder on a Computer
([Network Drive Function])

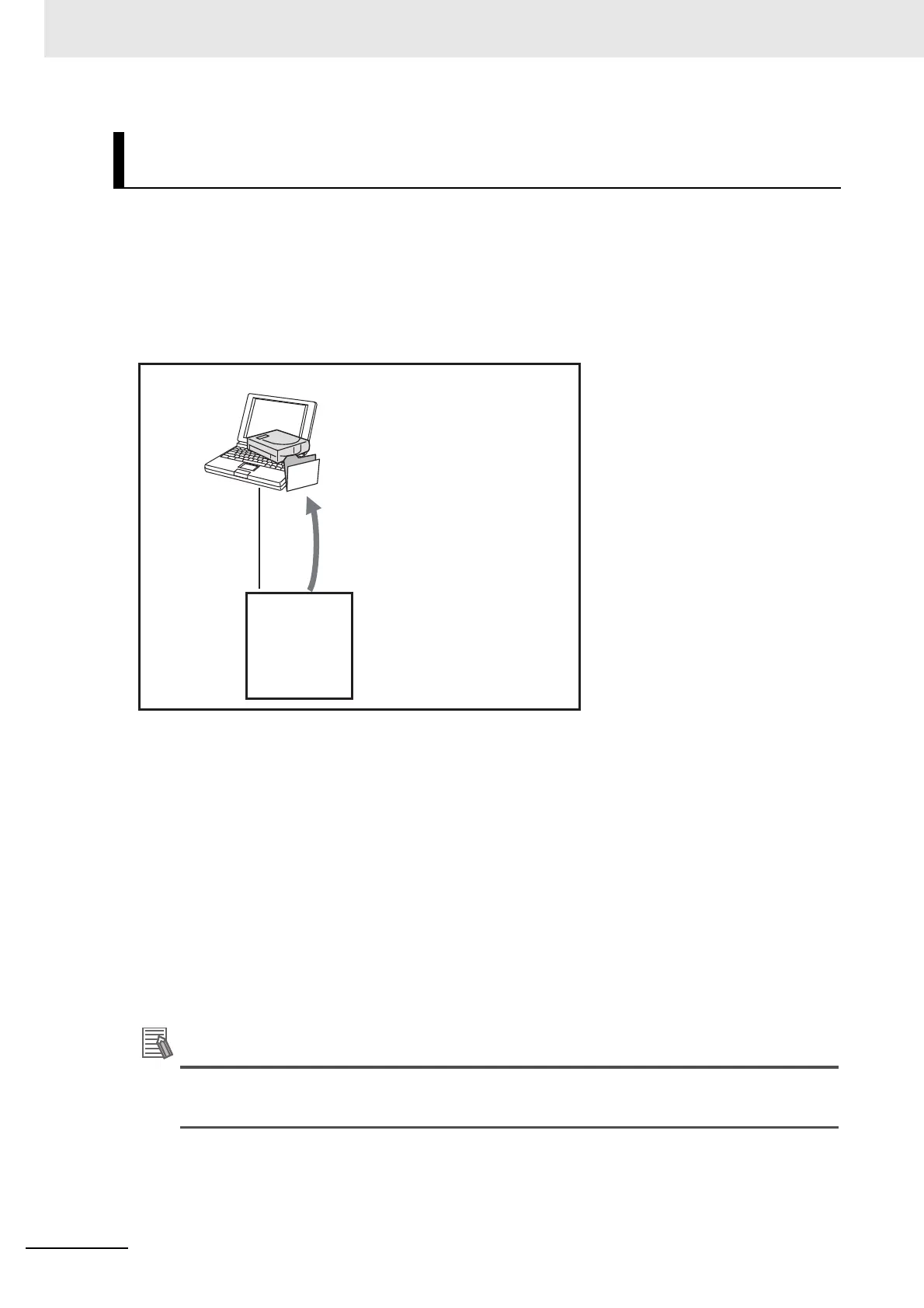

Computer
FH Controller
Ethernet
Shared folder on computer
(the shared folder must be set up
on the computer)
Saving directly
• Logged images
• Logged data
Set the Controller to save to the
shared folder on the computer.
