6 Performing Measurement and Adjustment
6 - 34
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

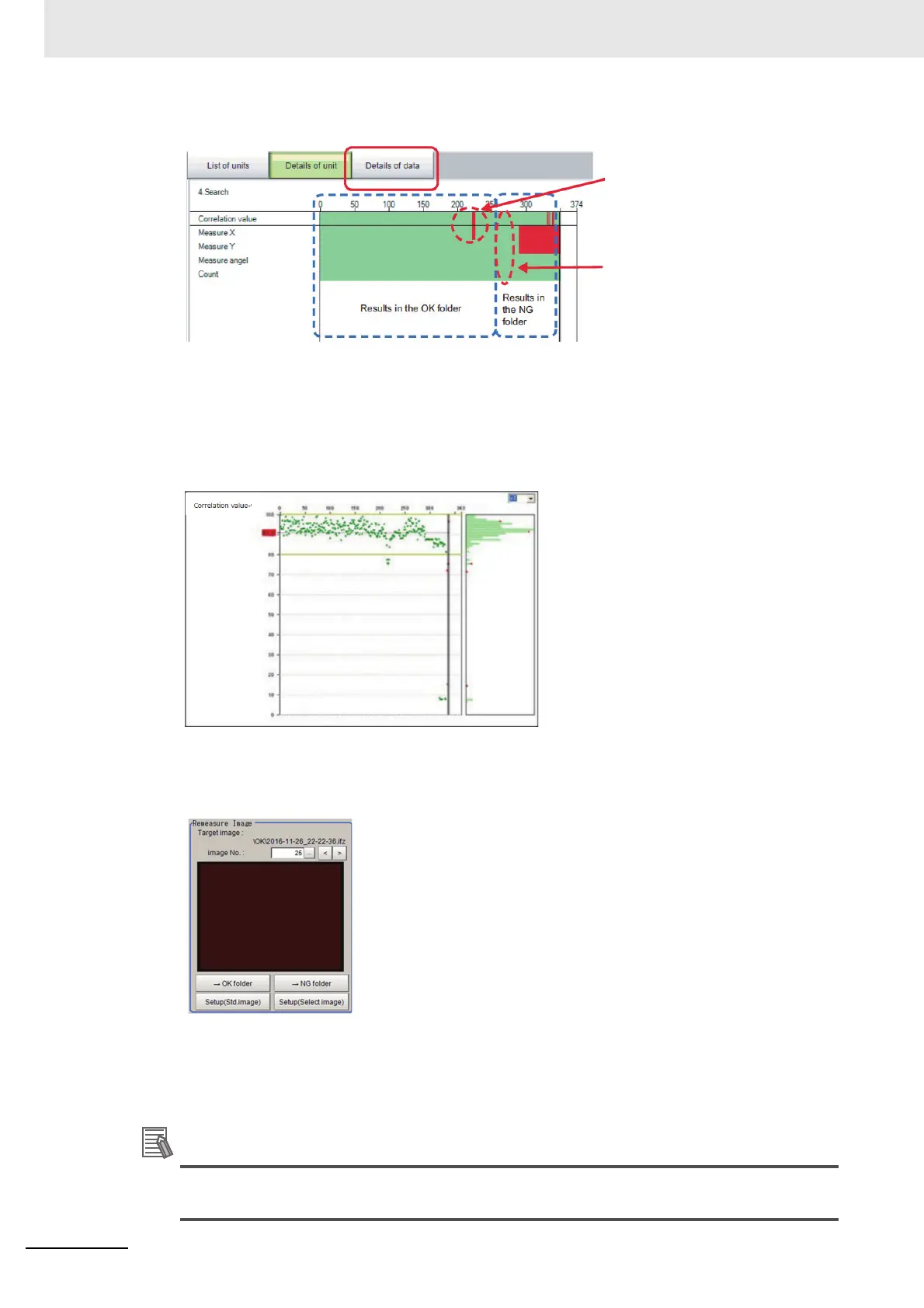

5 The cause of NG is displayed. To check the details of values further, click [Details of data].
6 Adjust processing units by referring to the displayed content.
In the following example, Correlation values are clearly lower on some images.
Based on the revealed cause of incorrect judgement, use the [Setup (Std. image)] or [Setup
(Select image)] buttons to adjust the setting values of the processing unit.
For re-measurement results statistics, a standard deviation calculated with unbiased standard
deviation is displayed.
7 Click a part of the displayed content that is a cause of incorrect judgement.
The “Remeasure Image” is switched to the incorrectly judged image.
Click [Setup (Std. image)] or [Setup (Select image)] to adjust settings of processing units.
8
Repeat steps 4 to 7 to correct the setting values corresponding to all causes of incorrect judgement.
9 Click [Execute batch measurement] to confirm that no images are incorrectly judged.
If there are still incorrectly judged images, repeat the same procedure until a re-measurement
finds no incorrectly judged image.
OK/NG judgments can be changed by using [→OK folder] and [←NG folder] buttons. In this
case, the changes will not be reflected until re-measurement is performed.
The Correlation value is
clearly judged as NG.
Correct the judgement
condition so that these
images are judged as
NG.
When clicking [Setup (Select image)], a property setting window for
the selected processing unit is displayed. Adjust settings with the
current image displayed in the Remeasure Image” area.
When performing the settings with the reference image previously
used or any image, click [Setup (Std. image)]. After selecting an
image file, a property setting window for the selected processing
unit is displayed.
To Next Page
