6 - 43
6 Performing Measurement and Adjustment
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
6-7 Managing Images used for Model Registration and Reference [Registered Image Man-
ager]
6
6-7-1 Specifying the Destination to Save

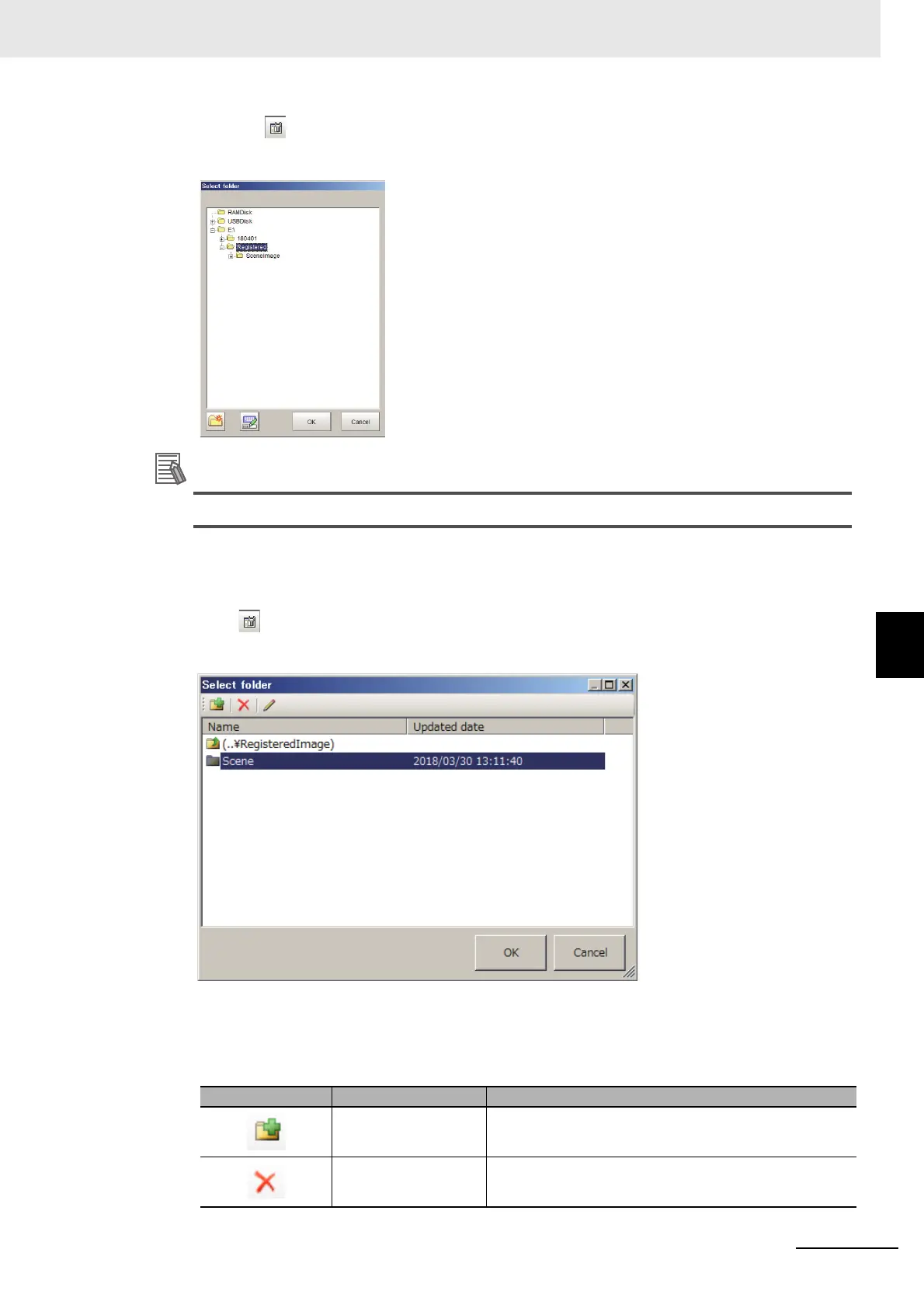

3 Click the on the right side of the "Registration destination" text box.
"Select folder" dialog box is displayed.
Additional Information
This setting will not be initialized even when [System initialization] in [Tool] is executed.
4 Specify, change, or newly create the root directly for the destination and click [OK].
The root directly for the registered image is set.
5 Click on the right side of "Folder" text box to set a sub-folder.
"Select folder" dialog box is displayed.
6 Specify, change, or newly create a sub-folder.
7 Click [OK].
The sub-folder is set.
Icon/Button Function Description
New folder Creates a new folder.
Delete Deletes the selected folder.
