7 Increasing/Switching Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
7-2 Switching the Scene or Scene Group
7
7-2-2 Switching Scene Groups

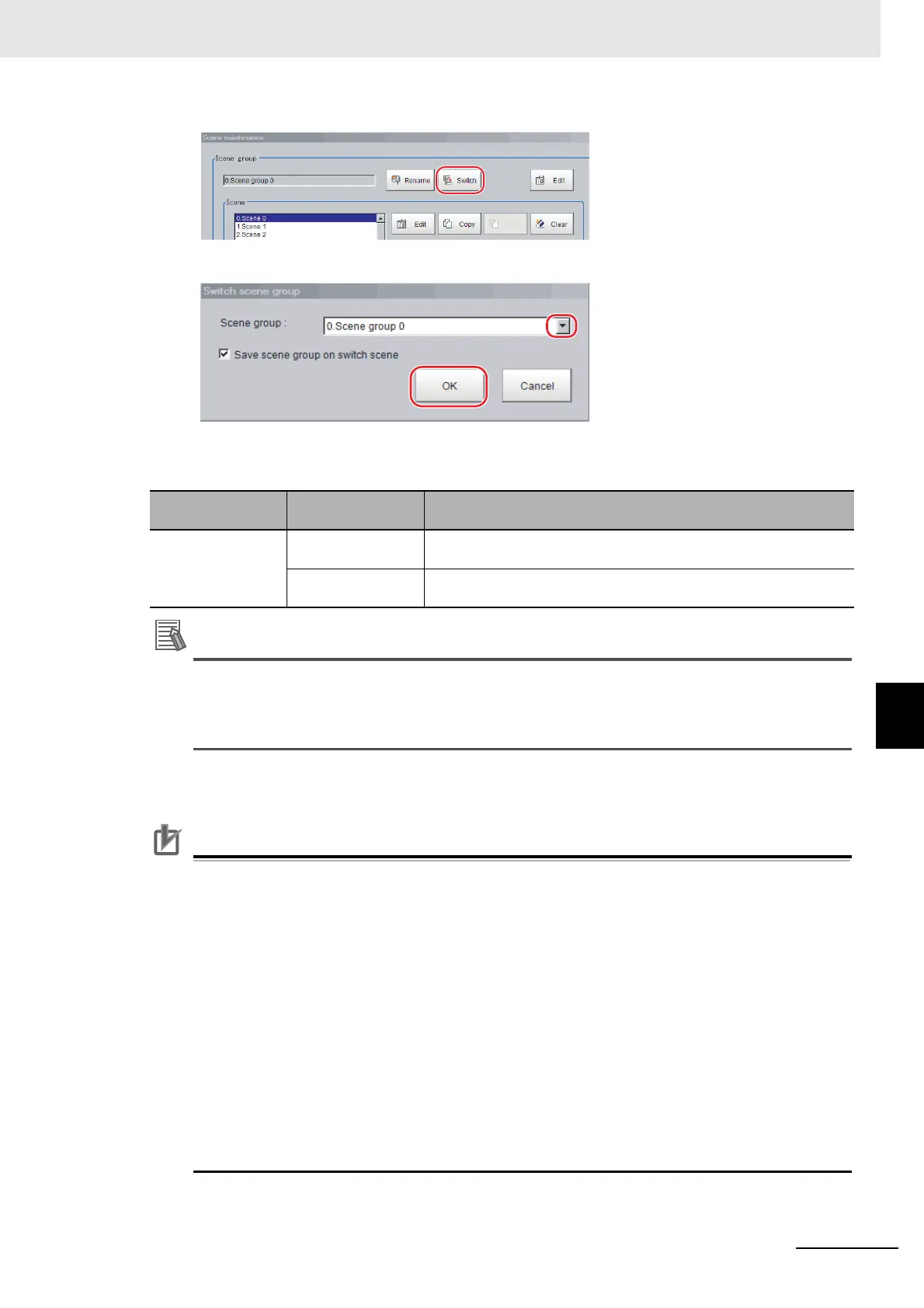

3 Switch to the scene group to edit.
(1) Click the [] button to select the scene group to edit.
(2) Select whether the scene group should be saved when switching to another scene group.
Additional Information
The setting for whether to save a scene group when switching is linked to the settings of the
[Measure setting] dialog box.
Refer to 4-15 Setting the Conditions that are Related to Operation during Measurement [Mea-
surement Conditions] on page 4-58.
(3) Click [OK].
The scene group is switched and the [Scene maintenance] dialog box is displayed again.
Important
• If you select [Save scene group on switch scene], data may be lost if the power supply is
turned OFF while switching the scene group. Make sure that the power supply is not turned
OFF while the scene group is being switched.
• If the available external storage is not sufficient to save data when switching the scene
group, the data will be initialized if the power supply is turned OFF because the scene group
data in the external storage is temporarily cleared during the saving process. To avoid this
problem, increase the available external storage without turning OFF the power supply or
reduce the scene group data size, and save the data to the external storage again.
• Immediately after starting up the FH series/FZ5 series Sensor Controller and immediately
after switching scenes, there will be no input image. No input image is processed as the
same color image as in the factory default state.
• If you open the Properties Dialog Box before inputting an image, click the Cancel button to
close the dialog box. Clicking the OK button in the dialog box will change the setting to the
same color camera setting as the factory default setting.
Refer tol "NG (memory shortage)" is displayed in the "Detail result" area on page 11-10.
Parameter
Set value
[Factory default]
Description
Save scene group
on switch scene
[Selected] When the scene group is switched, the data of the scene group
before changing is saved.
Not selected The scene group data is not saved when you switch to another
scene group. Therefore, you can switch the scene group faster.
