8 Setting Windows

Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

8-3 Arranging Windows [Layout Functions]

8-3-6 Toolbox Pane

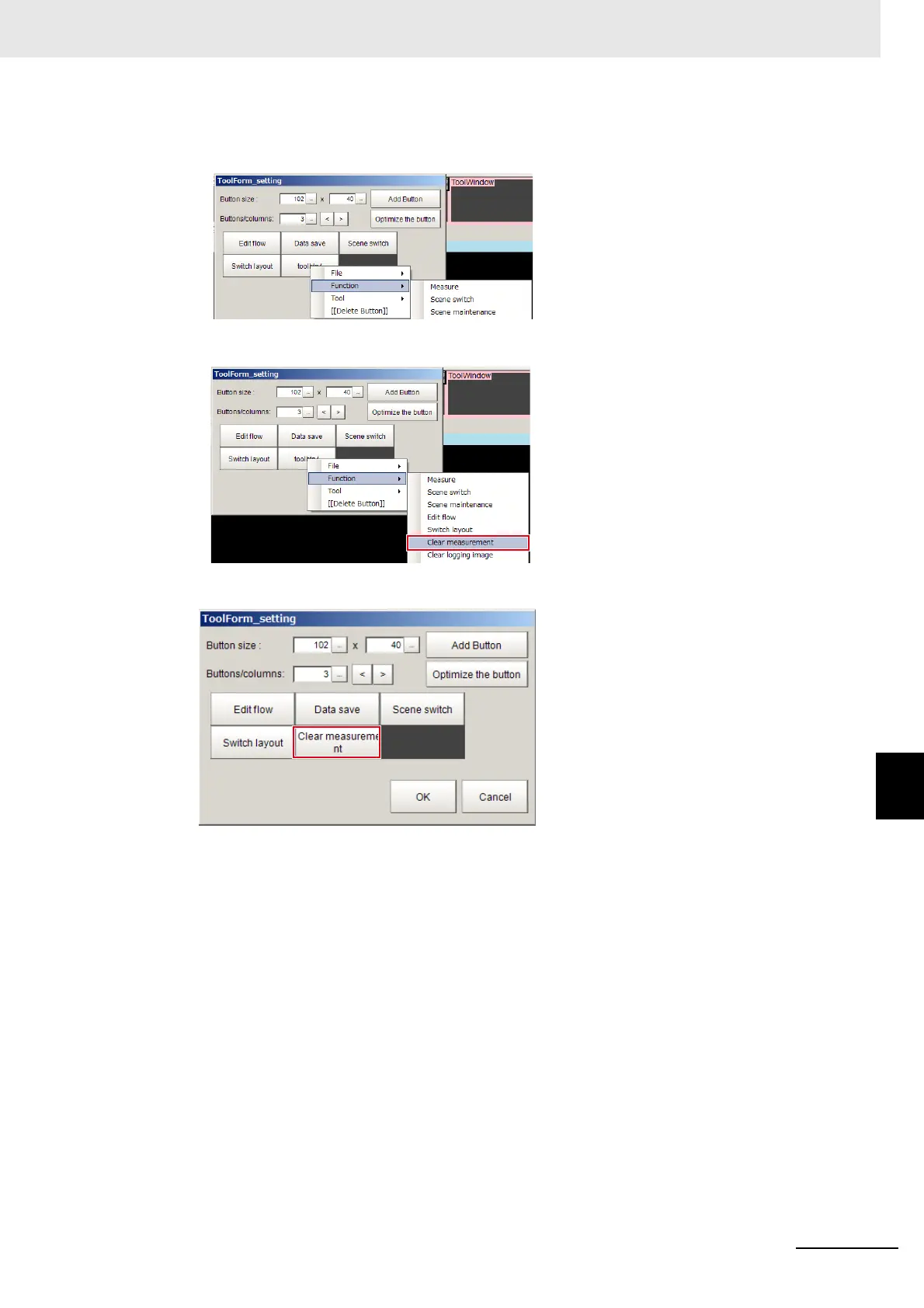

3 Click the added button.

The following shortcut menu is displayed.

4 Select “Clear measurement” on “Function”.

The “Clear measurement” button is added to the Toolbox pane.
