9 - 37
9 Saving/Loading Data
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
9-8 Copying Settings for Each
Line in Multi-line Random-trig-
9
9-8-2 Line Maintenance tool operations
• Do the following immediately after loading the BKD data.
1. Restart the Sensor Controller without performing [Data save].
2. Launch the Line Maintenance.
• Do the following immediately after changing [System setting].
1. Click [Data save] each Lines.
2. Restart the Sensor Controller.
3. Launch the Line Maintenance.

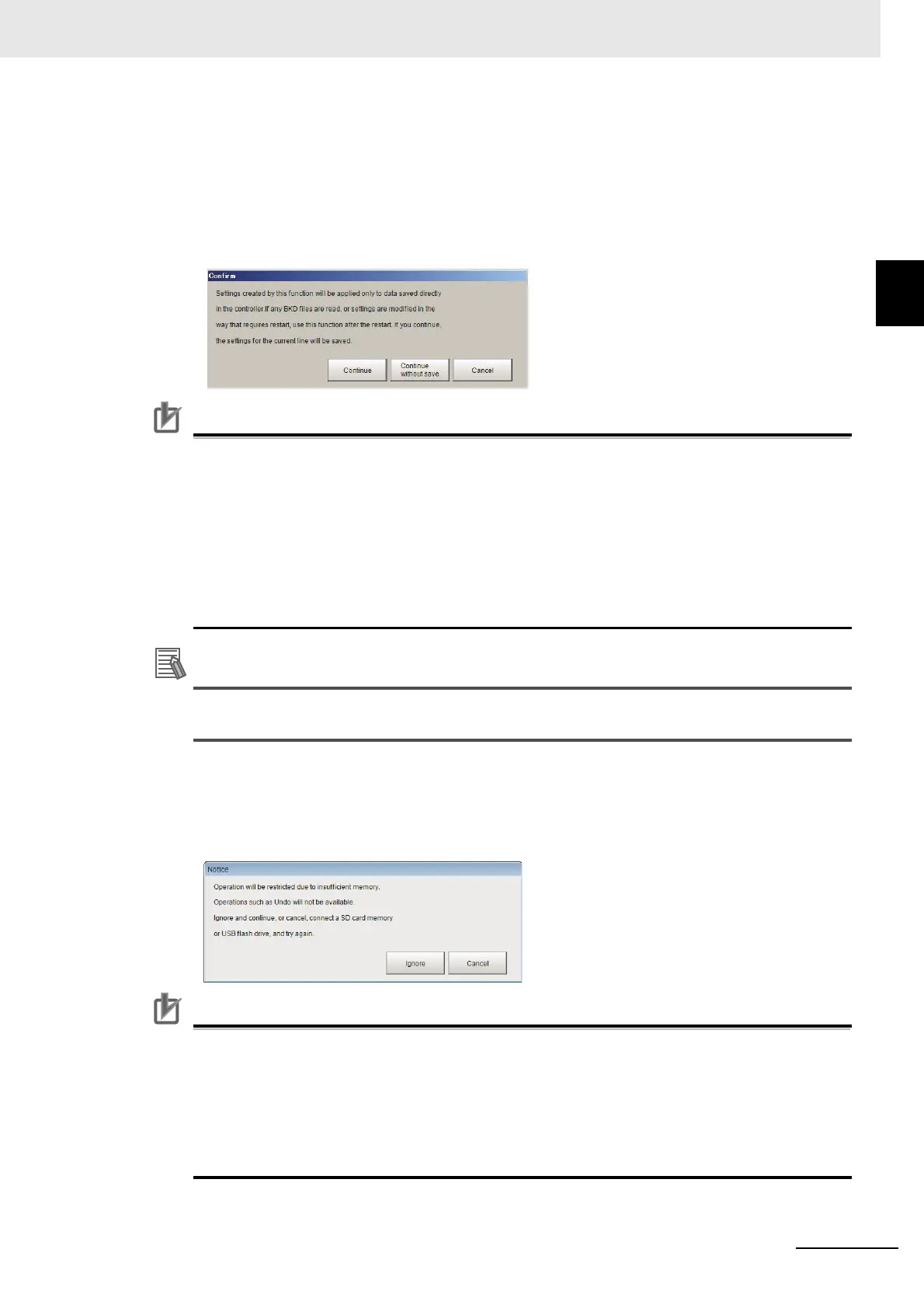

• Use [Data save] for each line prior to launching Line Maintenance tool. Settings data for lines
which have not already had {Data save] performed can not be copied. The settings data for
line 1-7 will not be saved to sensor controller memory if [Continue] is selected.
• After loading a BKD file (System setting + Scene group 0 data), do not save the data. Launch
the Configuration copy function after restarting Sensor Controller without saving.
• After loading the change of system setting or INI file (system set data), save to the Sensor
Controller. restart the Sensor Controller, and then launch the Configuration copy function.
Refer to 9-6 Loading Settings Data from the Controller RAMDisk or an External Storage
Device to the Sensor Controller on page 9-13.
If you do not want to copy settings that have been modified, select [Continue without save]. The
pre-modified settings data will be copied.
3 If there is insufficient sensor controller memory, the Caution screen will display.
If there is enough free memory, this screen will not display and you can proceed to Step 4.
Select [Cancel] and close the tool. Launch the Line Maintenance tool after connecting an exter-
nal memory device (2 GB, or higher recommended).
• When copying, or clearing settings data that requires higher memory capacity, some func-
tions may be limited depending on the available sensor controller memory. It is recom-
mended that the sensor controller be connected to an external storage device prior to
launching the tool. (2 GB, or higher recommended)
• Do not disconnect the external storage device while using the Line Maintenance tool. Doing
so could corrupt the external storage device, or cause the sensor controller to not operate
normally.
To Next Page
