10 Advanced Usage
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
10-2 Multi-trigger Imaging Processing with
Any Timing [Multi-trigger Imaging]
10

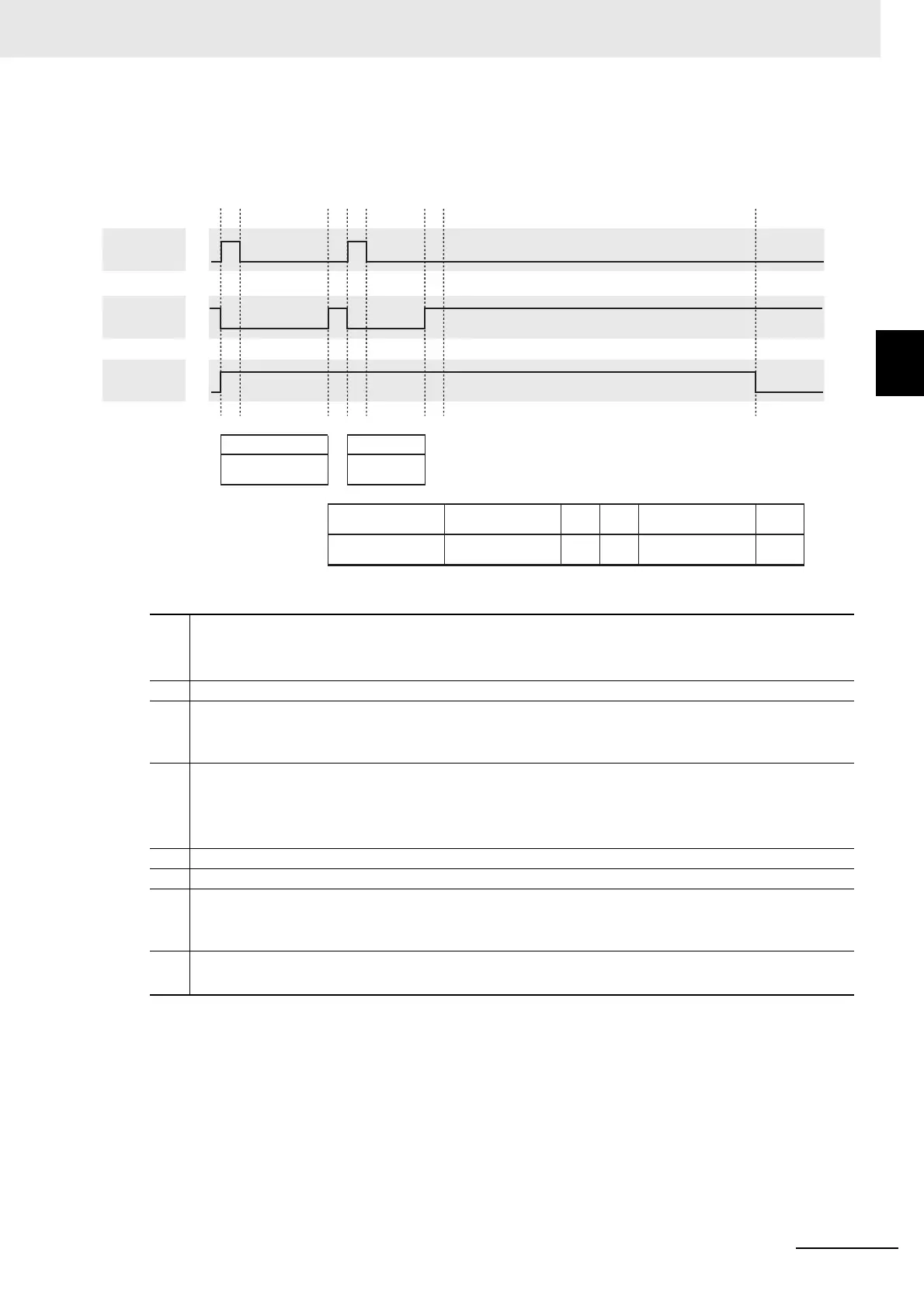

10-2-4 About Multi-input Function (Multi-trigger Imaging)
 Multi-input + Parallel processing OFF
1.
After checking if READY is ON and BUSY is OFF, turn ON the STEP (STEP1).
When STEP turns ON, READY turns OFF and BUSY turns ON.
Camera Image Input (2 Camera Image Input FH) is executed.
2. After READY turns OFF and BUSY turns ON, turn OFF the STEP.
3.
Since multi-input mode is selected for this example, READY turns ON after completing Camera Image
Input (2 Camera Image Input FH).
After completing image input, measurement processing (3 Search) is executed.
4.
After checking if READY is ON, turn ON the STEP (STEP2).
When STEP turns ON, READY turns OFF.
Since multi-input mode is selected for this example, Input image (5 Camera Image Input) is performed in
the same way as 2 Camera Image Input FH.
5. After READY turns OFF, turn OFF the STEP.
6. After completing Input image (5 Camera Image Input FH), READY turns OFF.
7.
Since Parallel processing is disabled, "6 Search" measurement processing is executed after "3 Search"
measurement processing is completed.
The measurement is performed according to the flow setting.
8.
After measurement processing is completed, BUSY turns OFF.
Display processing (11 Result Display) is performed.
2.Camera
Image Input FH
Measurement processing
6.Search
8.Calculation
9.Conditional
Branching
Measurement
processing
10.Search
11.Result
Display
Measurement
processing
Measurement
processing
Measurement
processing
Display
processing
5.Camera
Image Input FH
Input image
Input image
3.Search
Sensor Controller
Processing
6321
STEP1
↓
STEP2
↓
4 587
STEP
READY
BUSY
