Omron fh-1 series User Manual

10 - 27
10 Advanced Usage
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
10-2 Multi-trigger Imaging Processing with
Any Timing [Multi-trigger Imaging]
10
10-2-4 About Multi-input Function (Multi-trigger Imaging)

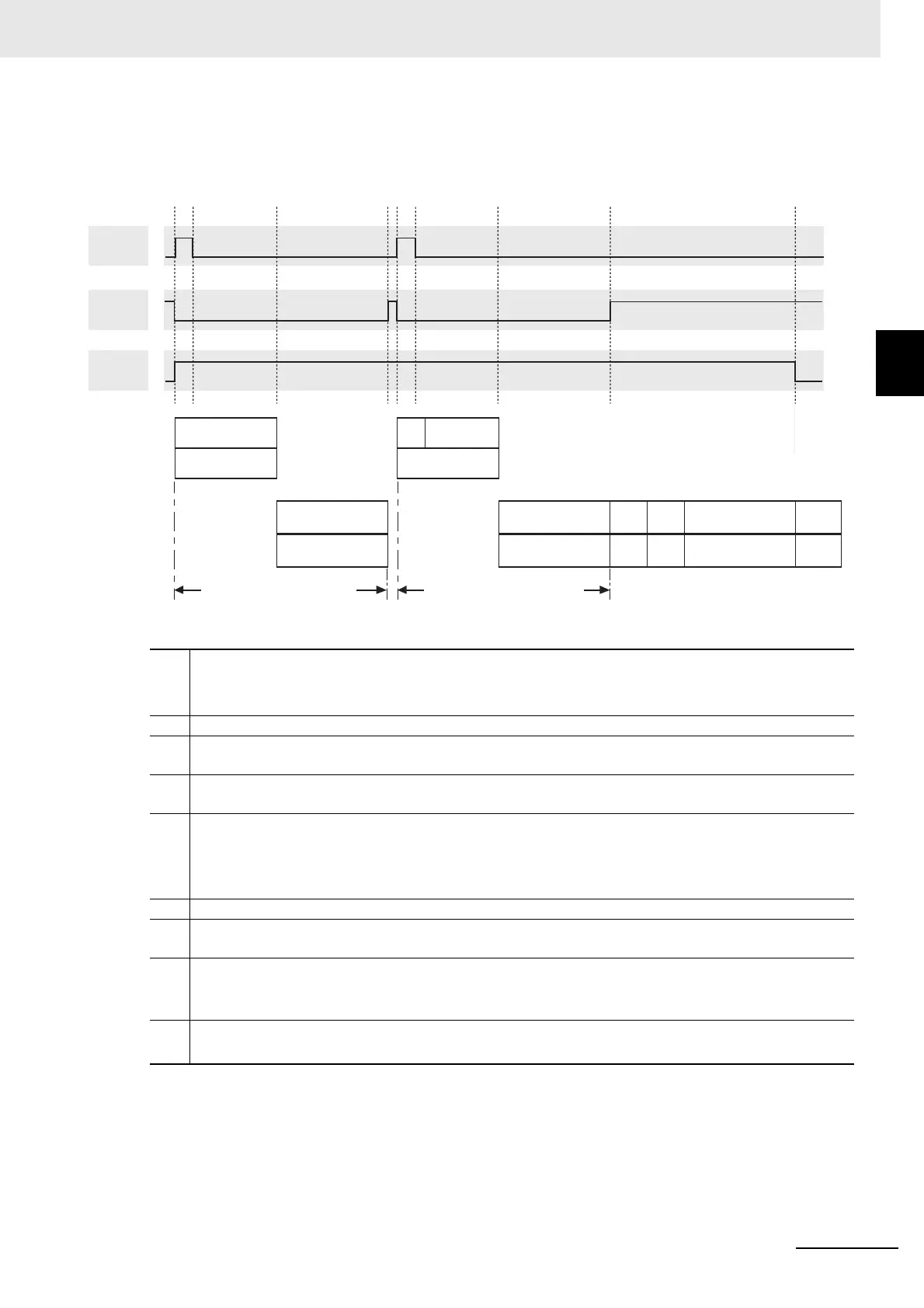

 Non-Multi-input + Parallel processing OFF
1.
After checking if READY is ON and BUSY is OFF, turn ON the STEP (STEP1).
When STEP turns ON, READY turns OFF and BUSY turns ON.
Camera image Input (2 Camera image input FH) is executed.
2. After READY turns OFF and BUSY turns ON, turn OFF the STEP.
3.
Since both Multi-input mode and Parallel processing are disabled, measurement processing (3 Search) is
executed after Camera Image Input without turning ON the READY.
4.
After measurement processing (3. Search) is completed, READY turns ON. (The READY remains OFF
until the "1 Multi-trigger Imaging" Task block is completed).
5.
After checking if READY is ON, turn ON the STEP (STEP2).
When STEP turns ON, READY turns OFF.
Since Non-Multi-input mode is selected, processing starts with camera settings for "5 Camera Image
Input".
6. After READY turns OFF, turn OFF the STEP.
7.
Since both Multi-input mode and Parallel processing are disabled, measurement processing (6 Search) is
executed after Camera Image Input without turning ON the READY.
8.
After measurement processing (6. Search) is completed, READY turns ON. (The READY remains OFF
until the "4 Multi-trigger Imaging" Task block is completed).
8 Calculation that comes after Multi-trigger Imaging End is performed.
9.
After Multi-trigger Imaging End measurement processing is completed, BUSY turns OFF.
Display processing (11 Result Display) is performed.
1.Multi-trigger Imaging Task block
4.Multi-trigger Imaging Task block
Camera
settings
2.Camera
Image Input FH
5.Camera
Image Input FH
Input image
Input image
Sensor
Controller
Processing
6321
STEP1
↓
STEP2
↓
4 589
Measurement processing
6.Search
8.Calculation
9.Conditional
Branching
Measurement
processing
10.Search
11.Result
Display
Measurement
processing
Measurement
processing
Measurement
processing
Display
processing
3.Search
7
STEP
READY
BUSY
