A - 21
Appendices
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
A-6 Image file
A
JPG(JFZ) file types are image file types supported in software version 5.71, or later.
This is an image logging file format based on JPG image file types in a directory format.
The JFZ file format is for Multiple image logging and is actually a container file comprised
of multiple JPG format image files. See the JFZ file structure below.
The file names for the JPG image files included in the JFZ image logging file are determined automati-
cally.
The name is configured camera number and input order of camera input as below.

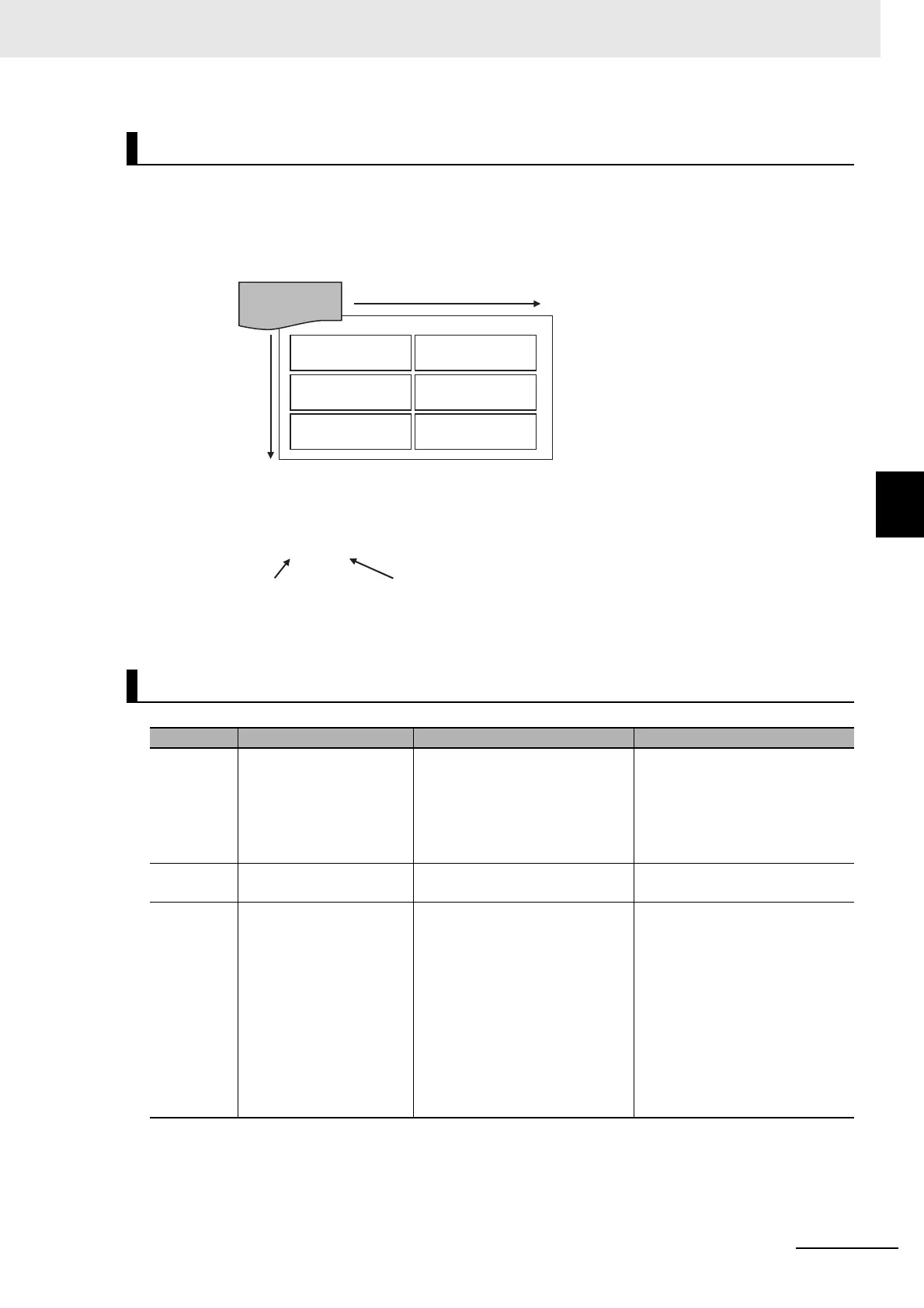

JPG(JFZ) file type
Differences among IFZ/BMP(BFZ)/JFZ(JFZ) file types
Item IFZ BPM(BFZ) JPG(JFZ)
File type OMRON image file type. Image file type configured BMP
image file as a folder.
Image file format in which Jpeg
format image files are organized
in folders.
This file type has been
used in FH/FZ/FJ series.
This file type was added from the
Sensor Controller software ver-
sion 5.50.
A file format added to Sensor
controller software version 5.71
File function For Multiple image logging
function.
Corresponding Multiple image
logging function.
Supports image logging for multi-
ple image capture.
File com-
patibility
In Sensor Controller soft-
ware version 5.30, or ear-
lier, Loading, or
measurement is sup-
ported and multiple cam-
era configuration is also
supported. However,
because Multiple image
logging is not supported,
only the last logging
image file can be loaded.
Same support as for a single
BMP format image file in Sensor
Controller software version 5.30,
or earlier.
Loading and measuring with this
file type is not supported in sen-
sor controller software version
5.70 or earlier.
"Loading and measuring is sup-
ported in sensor controller soft-
ware version 5.71 or later."
Since it is an irreversible com-
pression image format, the mea-
surement result differs from IFZ,
or BMP (BFZ) format
Camera number
***.jfz
Number of
Camera input image
Number of camera input image
(Image*)
Camera number
(Camera*)
