Oracle EXADATA X5-2 User Manual

About Controls and Connectors
Figure
Legend
Description
2 Service Action Required LED: amber
3 Power/OK LED: green
4 Power button
5 SP OK LED: green
6 - 17 Storage drive 0 (HDD) through storage drive 11 (HDD)
18 Top Fan Fault LED: amber; Power Supply (PS) Fault LED: amber; System Over Temperature Warning
LED: amber
19 USB 2.0 connectors (2)
Related Information
■
“Troubleshooting Using the Server Front and Rear Panel Status Indicators ” on page 26

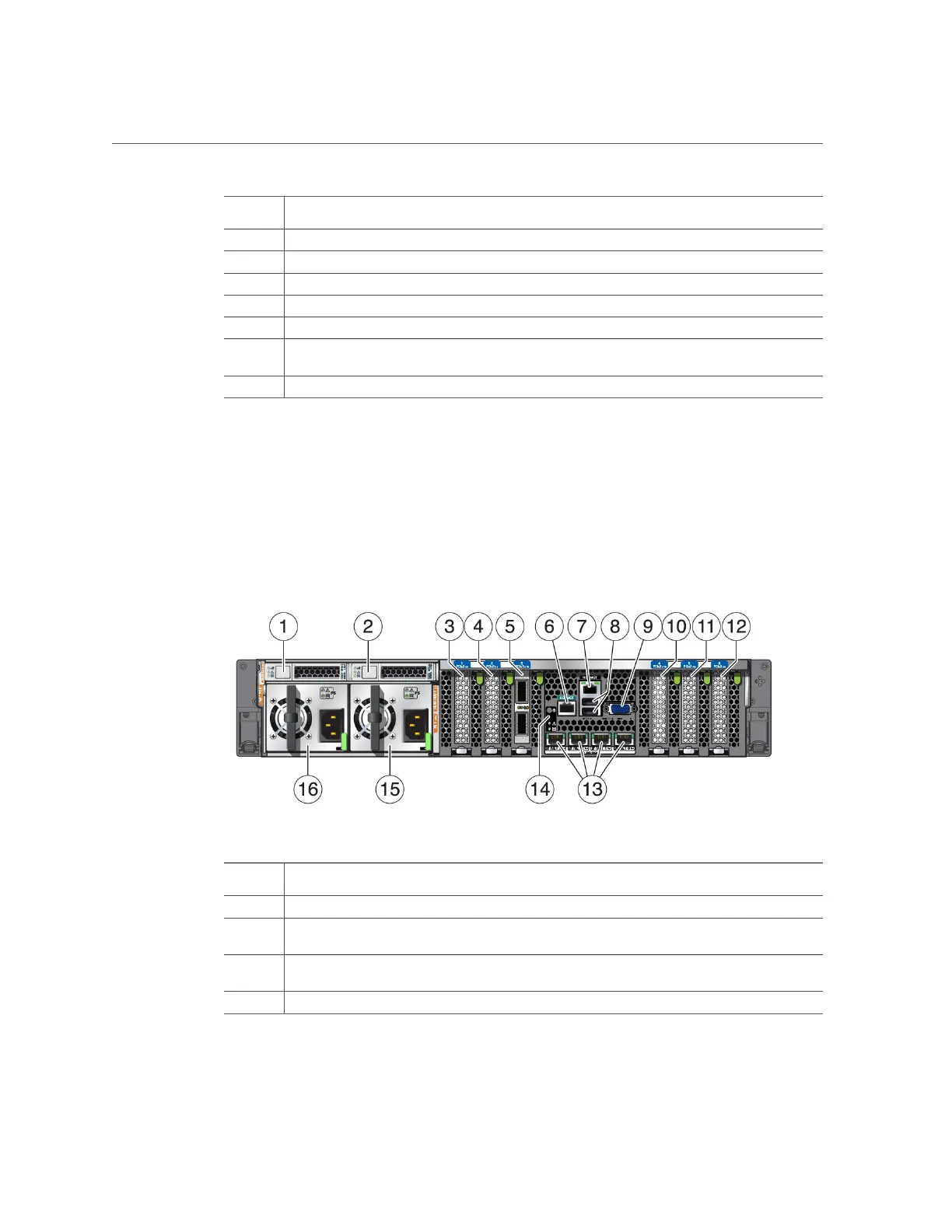

Rear Panel Components and Cable Connections
Figure
Legend
Description
1 - 2 Rear storage drive 0 (HDD/SSD) and storage drive 1 (HDD/SSD)
3, 4, 10,
11
PCIe slots 1, 2, 4, 5 (These slots contain the Oracle Flash Accelerator F160 NVMe PCIe Add In Card.)
5 PCIe slot 3 (This slot contains the Sun Dual Port QDR InfiniBand Host Channel Adapter for PCIExpress
Gen 3.)
6 Serial management (SER MGT)/RJ-45 serial port
About the Oracle Exadata Storage Server X5-2 High Capacity 15
