Servicing PCIe Cards
■
“Remove a PCIe Card” on page 88
■
“Install a PCIe Card” on page 90
Related Information
■
“Servicing the Oracle Storage 12 Gb/s SAS PCIe RAID HBA Card” on page 123
PCIe Slot Locations

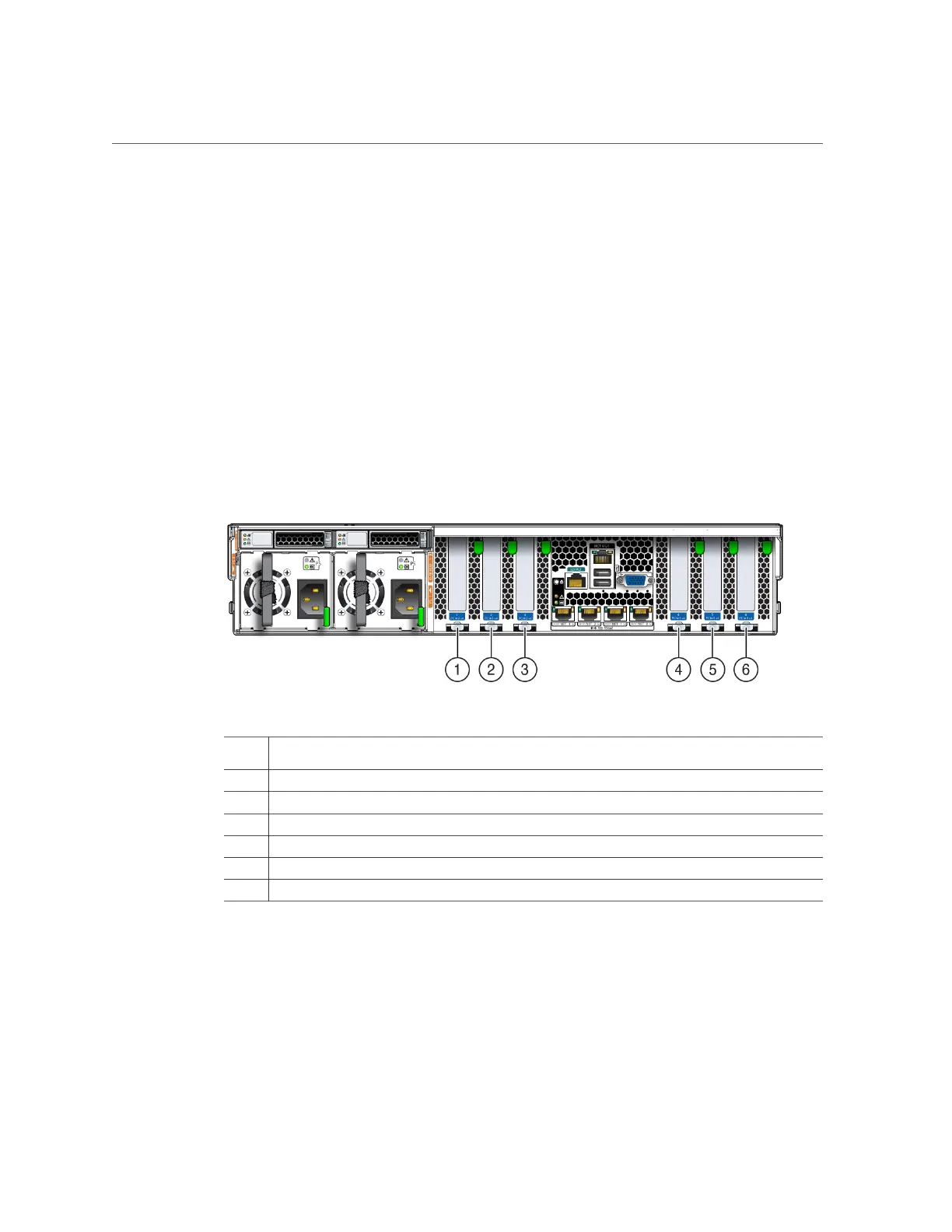

There are six PCIe slots available for optional PCIe cards. The following figure shows the PCIe
slot numbering.
Figure
Legend
Description
1 PCIe slot 1 (Contains the Oracle Flash Accelerator F160 NVMe PCIe Add In Card.)
2 PCIe slot 2 (Contains the Oracle Flash Accelerator F160 NVMe PCIe Add In Card.)
3 PCIe slot 3 (Contains the Sun Dual Port QDR InfiniBand Host Channel Adapter for PCIExpress Gen 3.)
4 PCIe slot 4 (Contains the Oracle Flash Accelerator F160 NVMe PCIe Add In Card.)
5 PCIe slot 5 (Contains the Oracle Flash Accelerator F160 NVMe PCIe Add In Card.)
6 PCIe slot 6 (Contains the Oracle Storage 12 Gb/s SAS PCIe RAID HBA card)
Related Information
■
“Remove a PCIe Card” on page 88
■
“Install a PCIe Card” on page 90
Servicing Components That Require Server Power-Off 87
