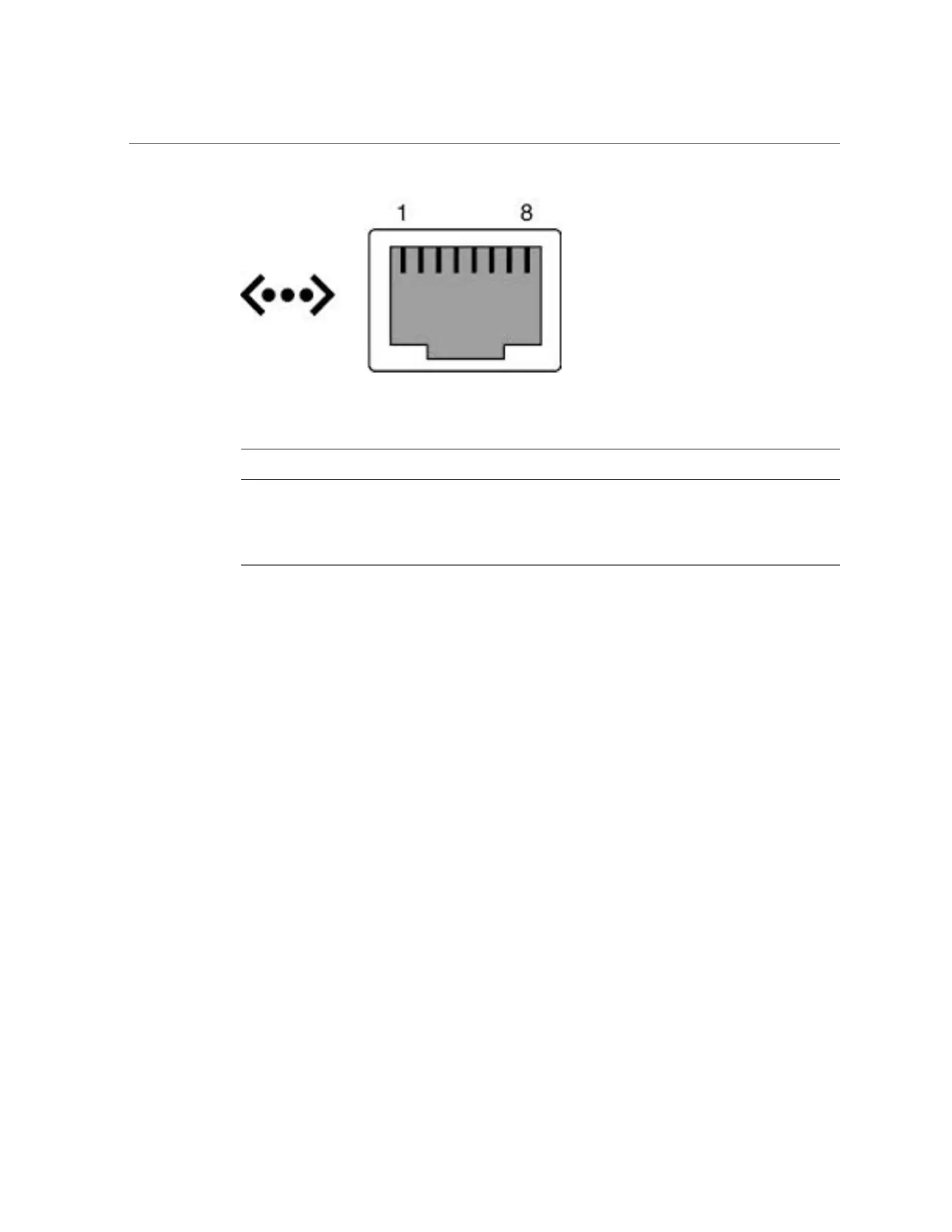

Network Management Port
TABLE 9
10-GbE Port Signals
Pin
Signal Description Pin Signal Description
1 Transmit/Receive Data 0 + 5 Transmit/Receive Data 2 –
2 Transmit/Receive Data 0 – 6 Transmit/Receive Data 1 –
3 Transmit/Receive Data 1 + 7 Transmit/Receive Data 3 +
4 Transmit/Receive Data 2 + 8 Transmit/Receive Data 3 –
Related Information
■
“Rear Panel Components and Cable Connections” on page 15
■
“Server System-Level Status Indicators” on page 27
■
“Disconnect Cables From the Server” on page 54
■
“Reconnect Power and Data Cables” on page 167
Network Management Port
The server has one auto-negotiating 10/100/1000BASE-T Ethernet management domain
interface, labeled NET MGT. For information about configuring this port for managing the
server with Oracle ILOM, refer to the Oracle Integrated Lights Out Manager (ILOM) 3.2
Documentation Library at http://www.oracle.com/goto/ilom/docs.
170 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
