Servicing Fan Modules
The system might have filler panels covering unoccupied drive slots.
3.

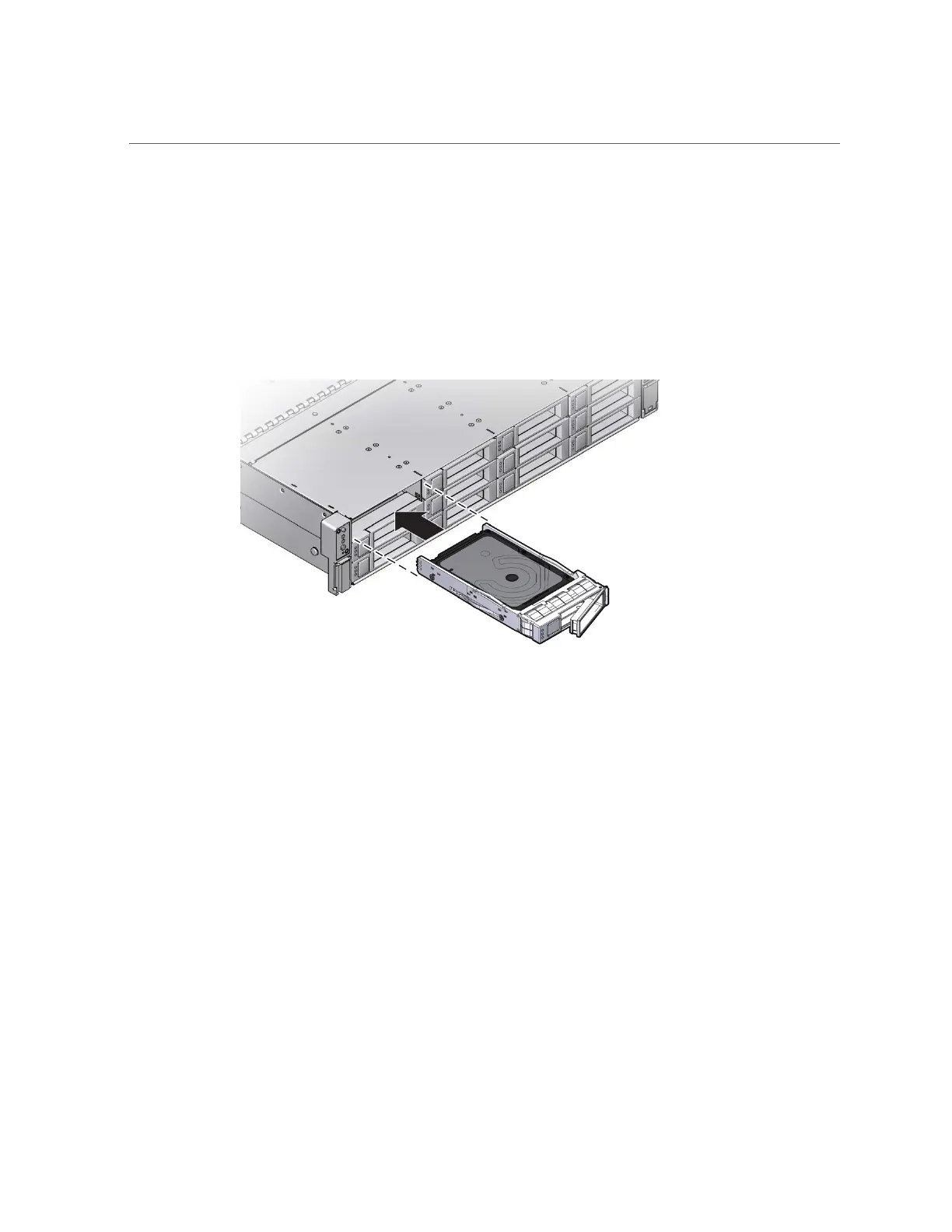

Align the replacement drive with the drive slot.
The drive is physically addressed according to the slot in which it is installed. It is important to
install a replacement drive in the same slot as the drive that was removed.
4.
Slide the drive into the slot until the drive is fully seated.
5.
Close the drive latch to lock the drive in place.
6.
Perform administrative procedures to reconfigure the drive.
Related Information
■
“Storage and Boot Drive Indicators” on page 29
■
“Storage Drives Hot-Plug Conditions” on page 62
■
“Remove a Storage Drive” on page 62
Servicing Fan Modules
The fan modules are located in the front of the server. See the following procedures:
66 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
