Serial Management Port

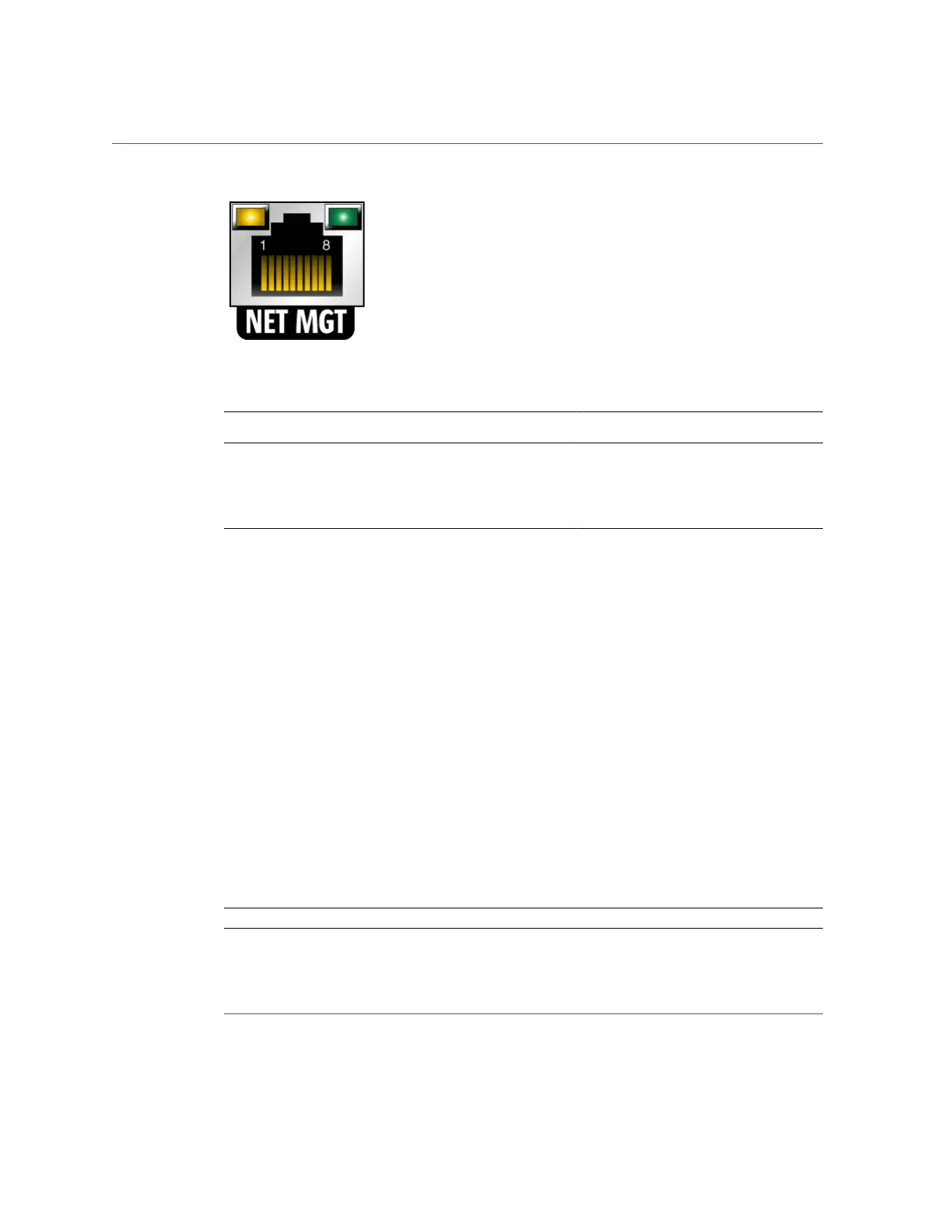

TABLE 10
Network Management Port Signals
Pin
Signal Description Pin Signal Description
1 Transmit Data + 5 Common Mode Termination
2 Transmit Data – 6 Receive Data –
3 Receive Data + 7 Common Mode Termination
4 Common Mode Termination 8 Common Mode Termination
Related Information
■
“Rear Panel Components and Cable Connections” on page 15
■
“Server System-Level Status Indicators” on page 27
■
“Disconnect Cables From the Server” on page 54
■
“Reconnect Power and Data Cables” on page 167
Serial Management Port
The serial management connector (labeled SER MGT) is an RJ-45 connector that can be
accessed from the rear panel. This port is the default connection to the server. Use this port only
for server management.
TABLE 11
Default Serial Connections for Serial Port
Parameter Setting
Connector SER MGT
Rate 9600 baud
Parity None
Stop bits 1
Identifying the Server Ports 171
