Remove the Right LED/USB Indicator Module
Remove the Right LED/USB Indicator Module
1.
Prepare the server for service.
a.
Power off the server and disconnect the power cords from the power
supplies.
See “Powering Down the Server” on page 51.
b.
Extend the server into the maintenance position.
See “Extend the Server to the Maintenance Position” on page 55.
c.
Attach an antistatic wrist strap to your wrist, and then to a metal area on the
chassis.
See “Take Antistatic Measures” on page 57.
d.
Remove the server top cover.
See “Remove the Server Top Cover” on page 58.
2.
Remove the server fan assembly door.
See “Remove the Fan Assembly Door From the Server” on page 59.
3.

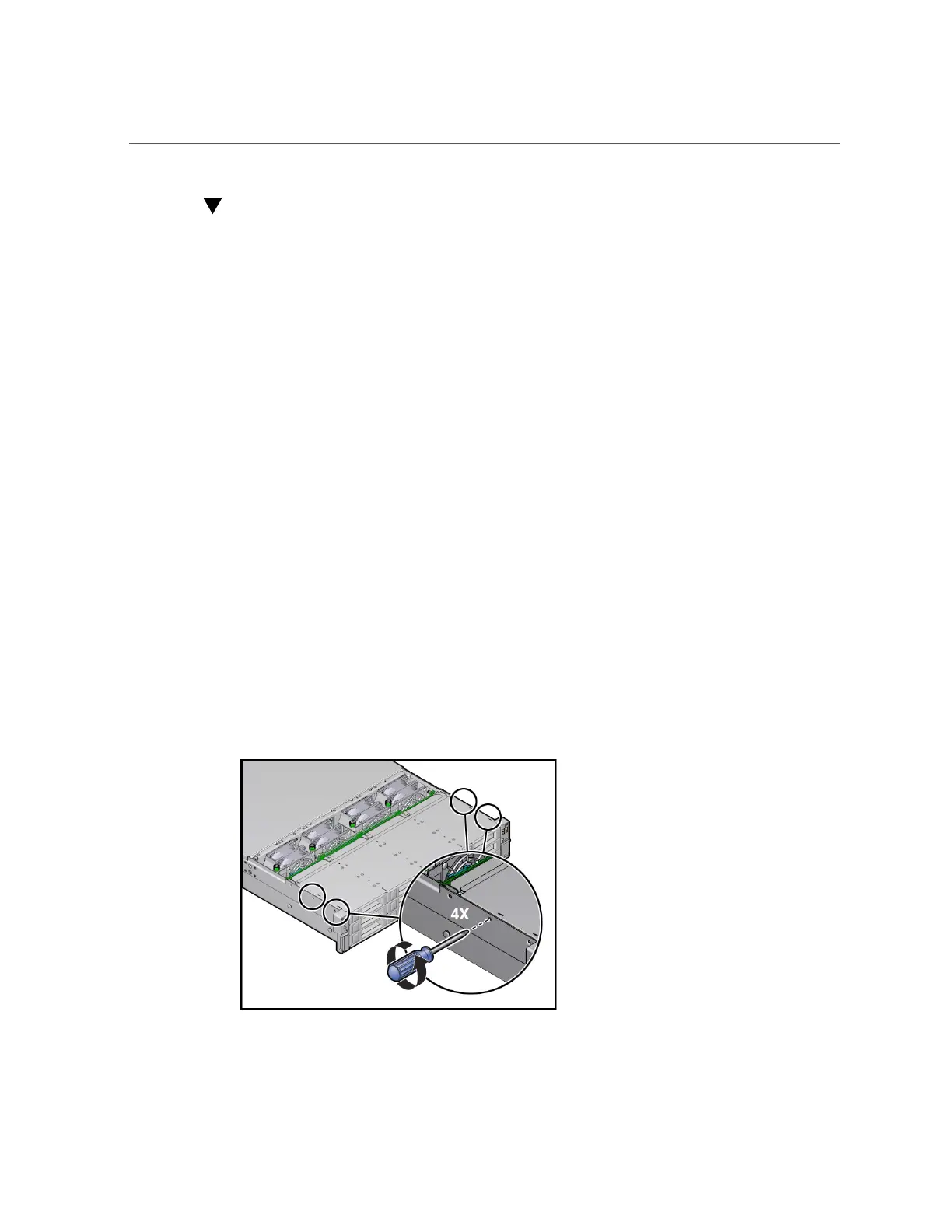

Remove the four remaining No. 2 Phillips screws (two on each side of the
chassis) that secure the disk cage assembly to the server chassis.
138 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
