Video Connector
TABLE 14
RJ-45 to DB-25 Adapter Crossovers Wiring Reference
Serial Port (RJ-45 Connector) DB-25 Adapter
Pin Signal Description Pin Signal Description
1 RTS 5 CTS
2 DTR 6 DSR
3 TXD 3 RXD
4 Signal ground 7 Signal ground
5 Signal ground 7 Signal ground
6 RXD 2 TXD
7 DSR 20 DTR
8 CTS 4 RTS
Related Information
■
“Rear Panel Components and Cable Connections” on page 15
■
“Disconnect Cables From the Server” on page 54
■
“Reconnect Power and Data Cables” on page 167
Video Connector

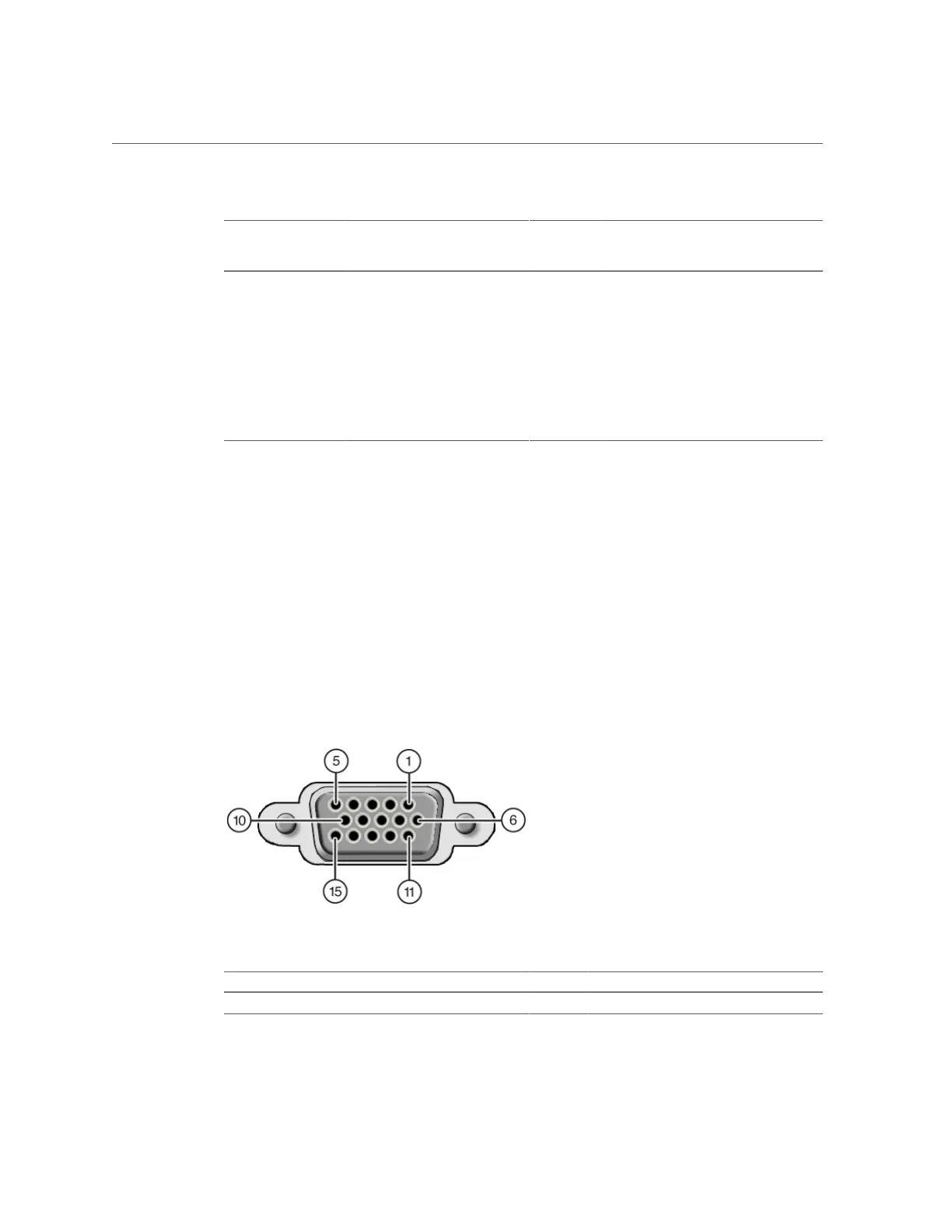

The video connector is a DB-15 connector that can be accessed from the back panel.
TABLE 15
Video Connector Signals
Pin Signal Description Pin Signal Description
1 Red Video 9 [KEY]
