Remove a Storage Drive

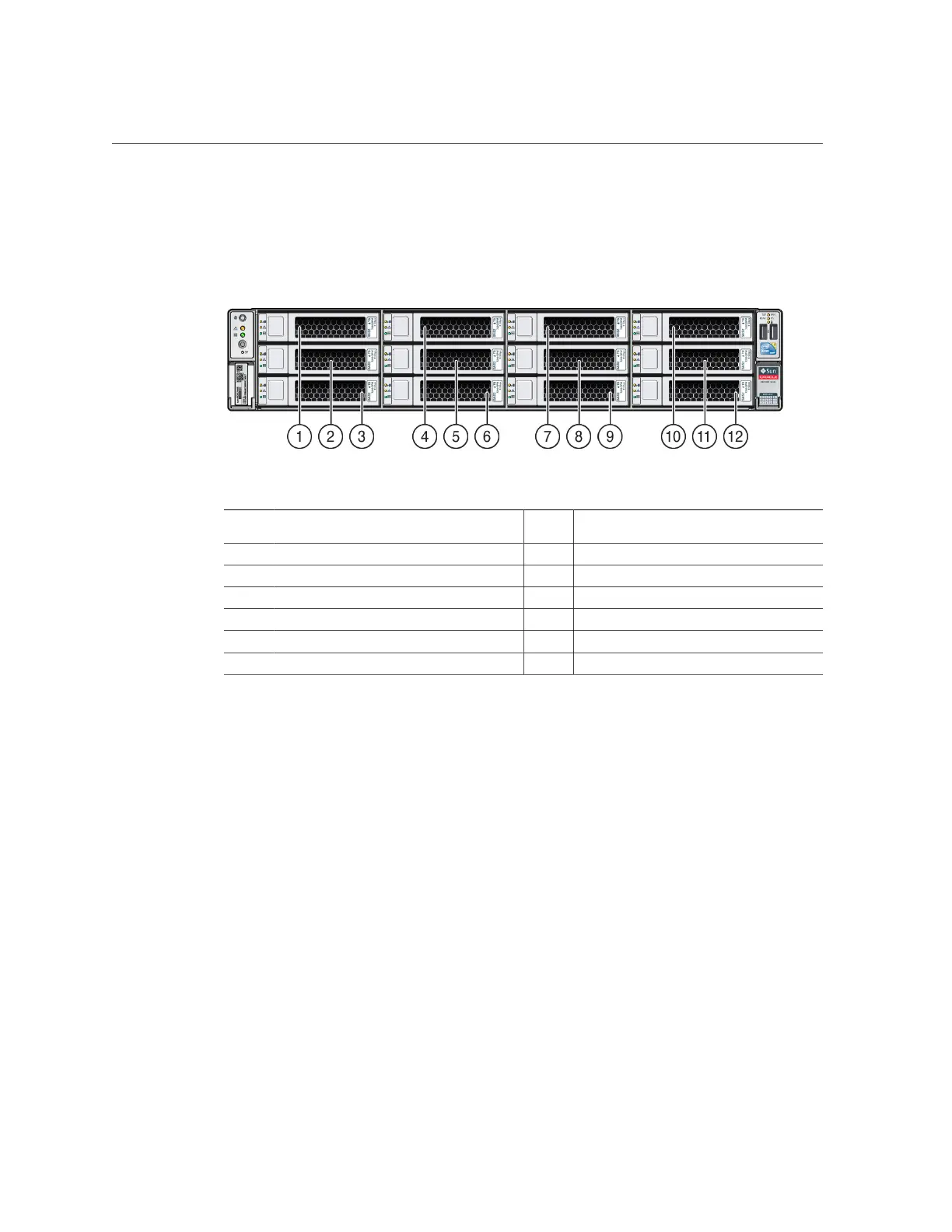

The following illustrations show the location of the drives and the internal system software
designations for the drives. For information on storage drive status indicators (LEDs), refer to
“Storage and Boot Drive Indicators” on page 29.
Figure
Legend
Description Figure
Legend
Description
1 Storage drive 8 (HDD) 7 Storage drive 10 (HDD)
2 Storage drive 4 (HDD) 8 Storage drive 6 (HDD)
3 Storage drive 0 (HDD) 9 Storage drive 2 (HDD)
4 Storage drive 9 (HDD) 10 Storage drive 11 (HDD)
5 Storage drive 5 (HDD) 11 Storage drive 7 (HDD)
6 Storage drive 1 (HDD) 12 Storage drive 3 (HDD)
Servicing Components That Do Not Require Server Power-Off 63
