Remove a Power Supply
For instructions for disconnecting the CMA left-side connectors, see “Remove the Cable
Management Arm” in Oracle Exadata Storage Server X5-2 High Capacity Installation Guide.
Caution - When disconnecting the CMA left-side connectors, be sure to use your arm to
support the CMA so that it does not hang down under its own weight and stress the right-side
connectors; otherwise, the CMA might be damaged. You must continue to support the CMA
until you have reconnected both of the left-side connectors.
4.
Disconnect the power cord from the faulty power supply.
5.

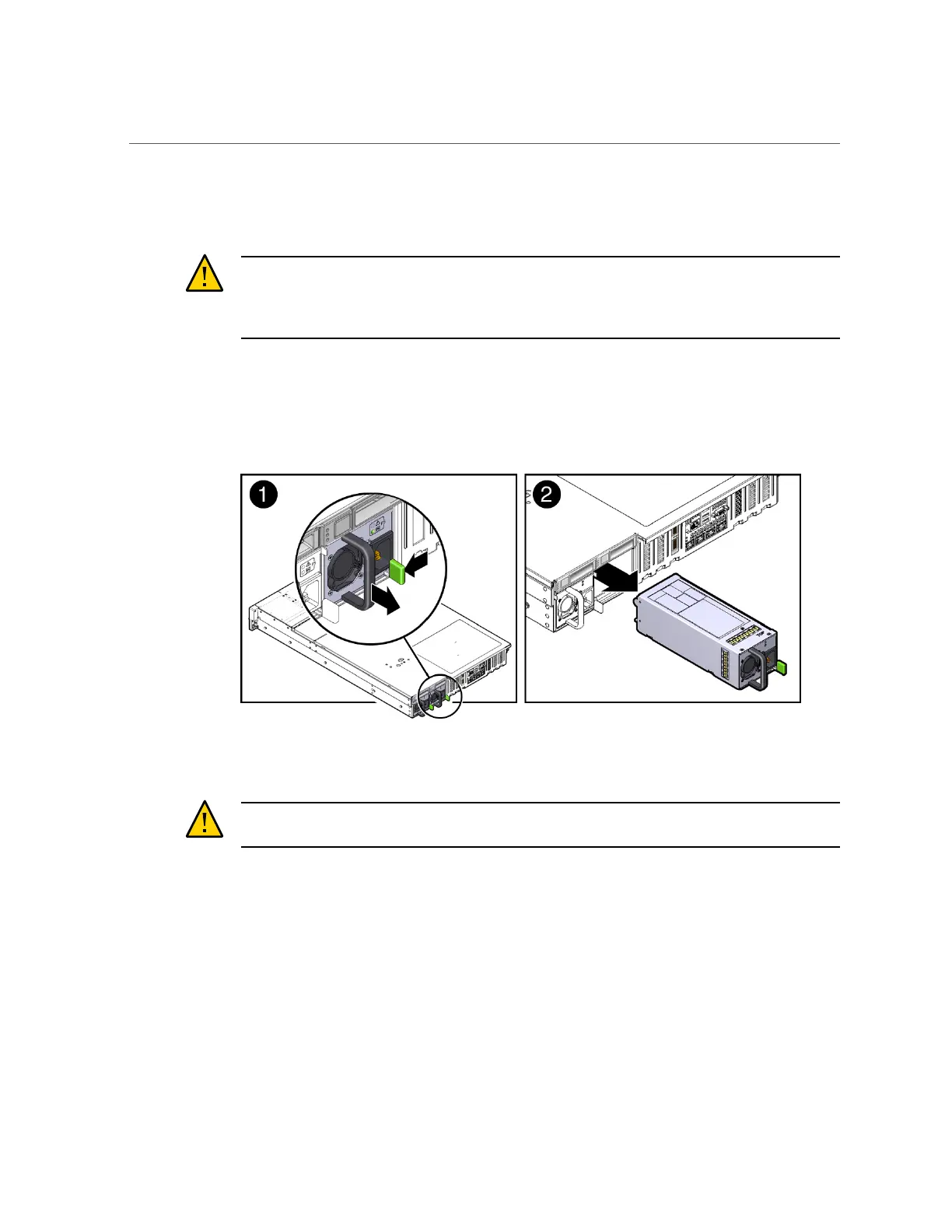

Grasp the power supply handle and push the power supply latch to the left [1].
6.
Pull the power supply out of the chassis [2].
Caution - Whenever you remove a power supply, you should replace it with another power
supply; otherwise, the server might overheat due to improper airflow.
7.
Continue to “Install a Power Supply” on page 75.
Related Information
■
“Rear Panel Components and Cable Connections” on page 15
■
“Power Supply Status Indicators” on page 29
■
“Install a Power Supply” on page 75
74 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
