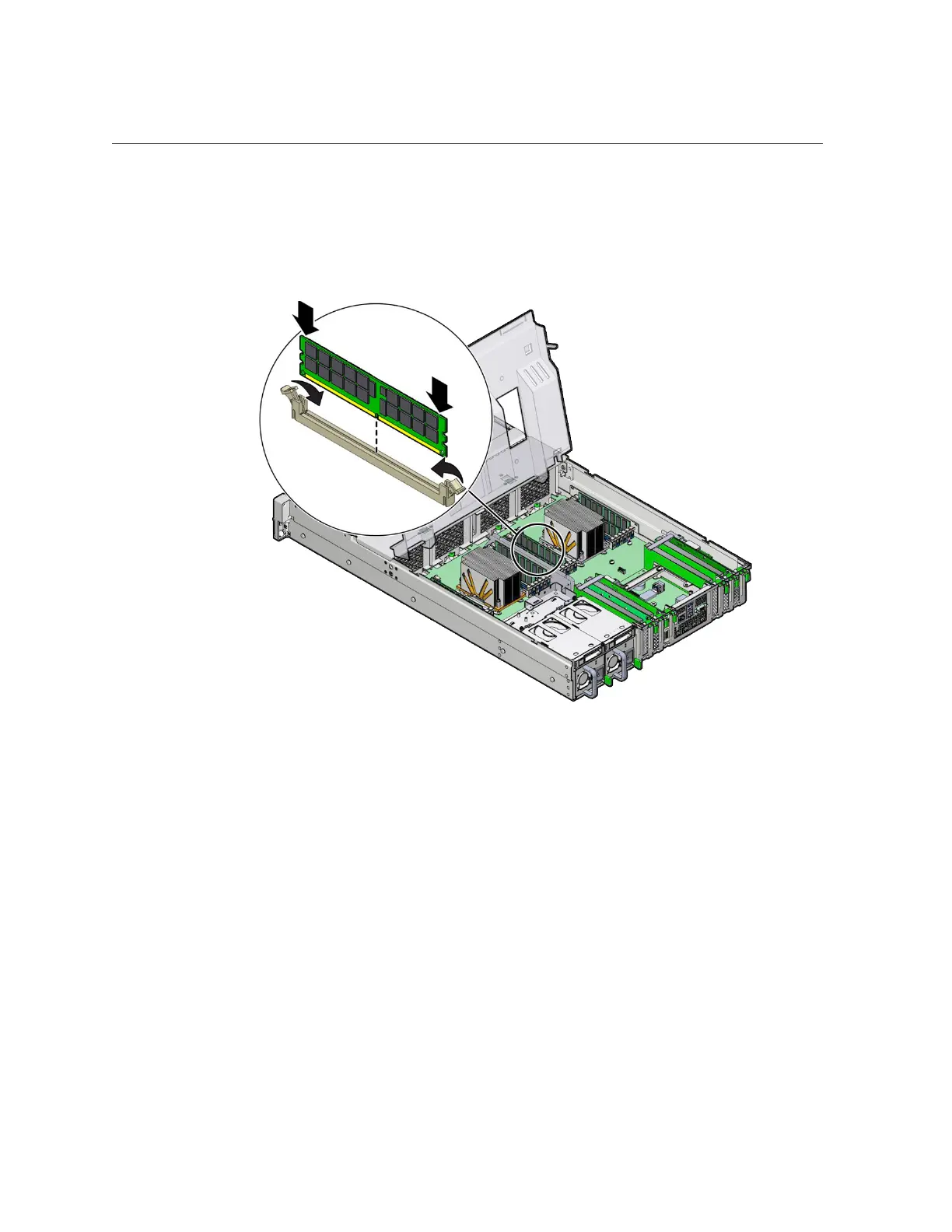

Install a DIMM
If the DIMM does not easily seat into the connector socket, verify that the notch in the
DIMM is aligned with the connector key in the connector socket. If the notch is not
aligned, damage to the DIMM might occur.
4.
Repeat Step 3 until all replacement DIMMs are installed.
5.
Return the server to operation:
a.
Lower the air baffle to the installed position.
b.
Install the server top cover.
See “Install the Server Top Cover” on page 161.
c.
Return the server to the normal rack position.
See “Return the Server to the Normal Rack Position” on page 165.
d.
Reconnect the power cords and data cables to the server.
Servicing Components That Require Server Power-Off 85
