Remove a PCIe Card
5.

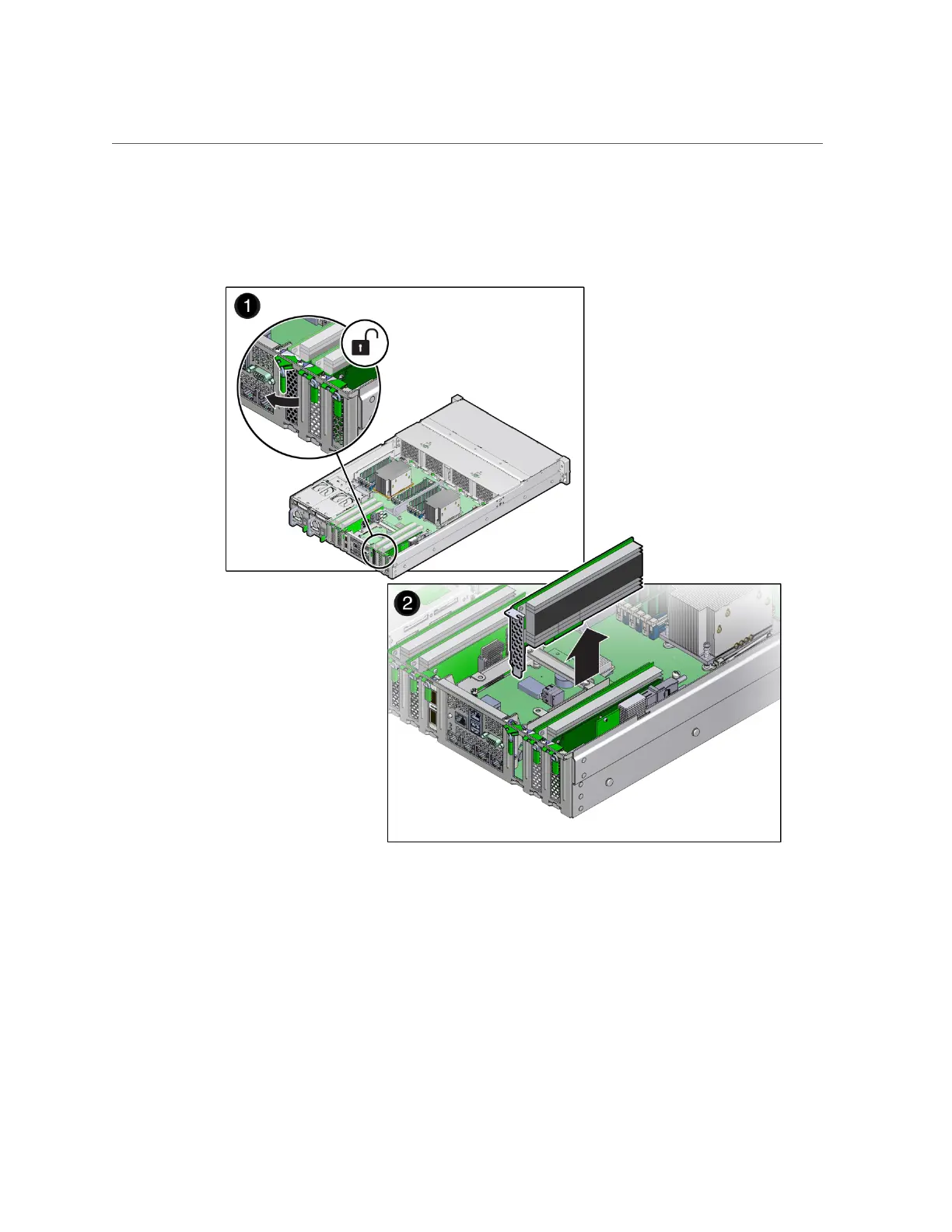

Rotate the PCIe card locking mechanism [1], and then lift up on the PCIe card to
disengage it from the motherboard connectors [2].
6.
Place the PCIe card on an antistatic mat.
Related Information
■
“PCIe Slot Locations” on page 87
■
“Install a PCIe Card” on page 90
Servicing Components That Require Server Power-Off 89
