Install a PCIe Card
4.

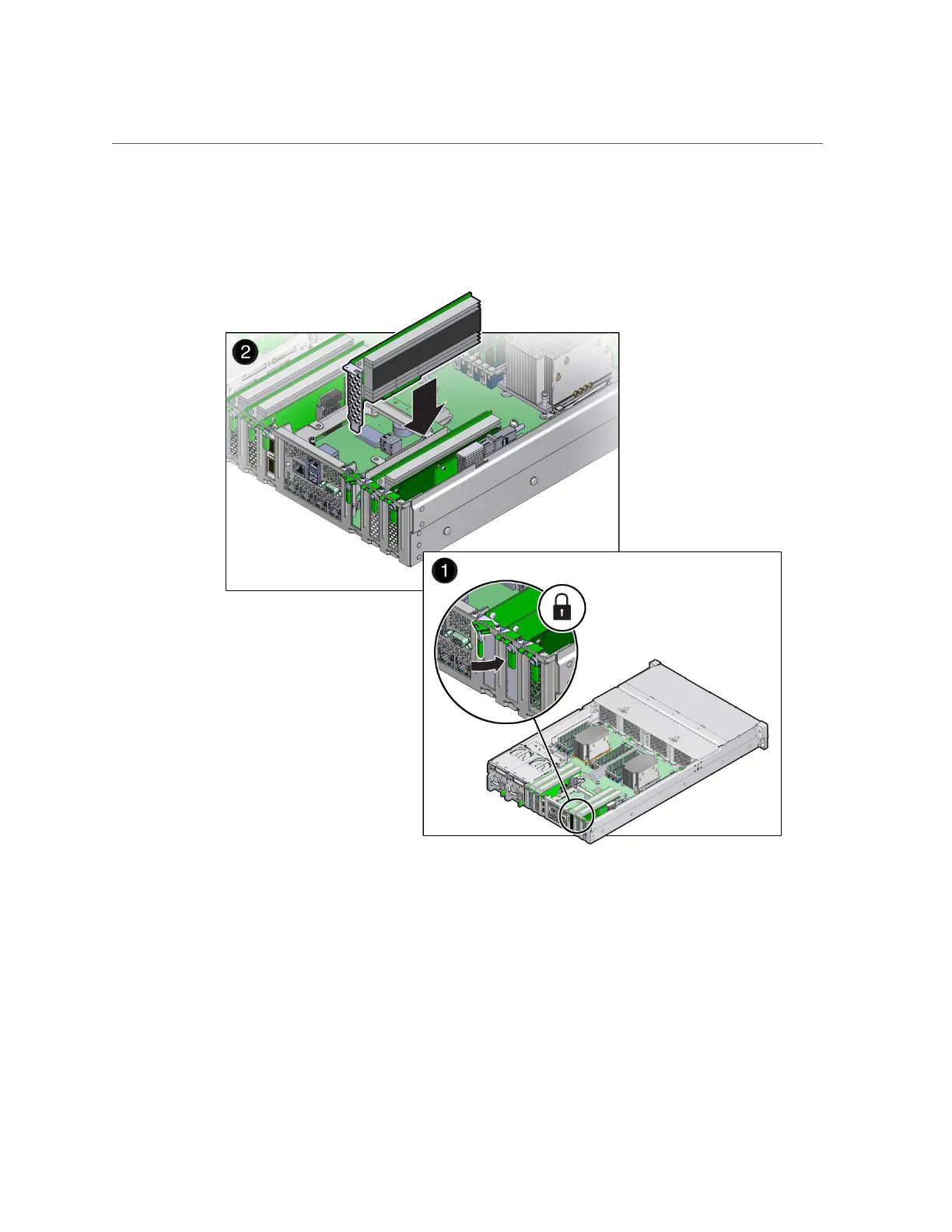

Insert the PCIe card into the correct slot [1], and rotate the PCIe locking
mechanism to secure the PCIe card in place [2].
5.
Reconnect the cables to the PCIe card that you unplugged during the removal
procedure [2].
6.
Return the server to operation.
a.
Lower the air baffle to the installed position.
Servicing Components That Require Server Power-Off 91
