Install a DIMM
Servicing DIMMs 81
8.

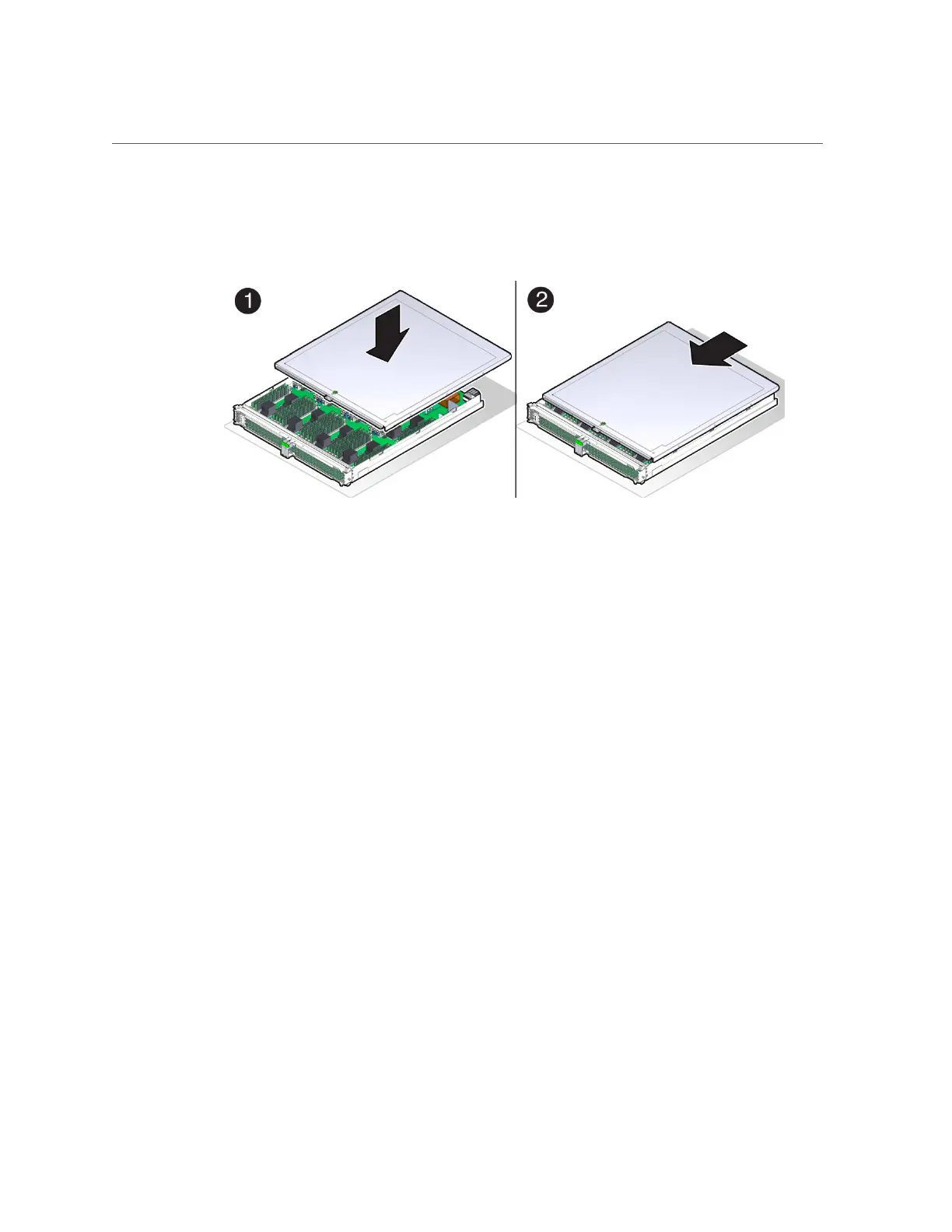

Place the cover onto the processor module and slide the cover forward until the
latch clicks into place.
9.
Consider your next steps.
■
If you are adding a second processor module to the server, return to “Server
Upgrade Process” on page 57.
■
If you are replacing a processor module after installing replacement DIMMs,
proceed to Step 10.
10.
Finish the installation procedure.
See:
■
Install the processor module.
See “Install a Processor Module or Processor Filler Module” on page 64.
■
Return the server to operation.
See “Returning the Server to Operation” on page 191.
■
Verify DIMM functionality.
See “Verify a DIMM” on page 82.
Related Information
■
“DIMM Population Rules” on page 69
■
“DIMM Addresses” on page 70
■
“DIMM Rank Classification” on page 72
■
“Remove a DIMM or DIMM Filler Panel” on page 77
■
“Verify a DIMM” on page 82
■
“DIMM Fault Handling” on page 73
