Parker Compax3 Series

Parker EME
Setting up Compax3
192-120114 N5 C3I22T11 June 2008 149

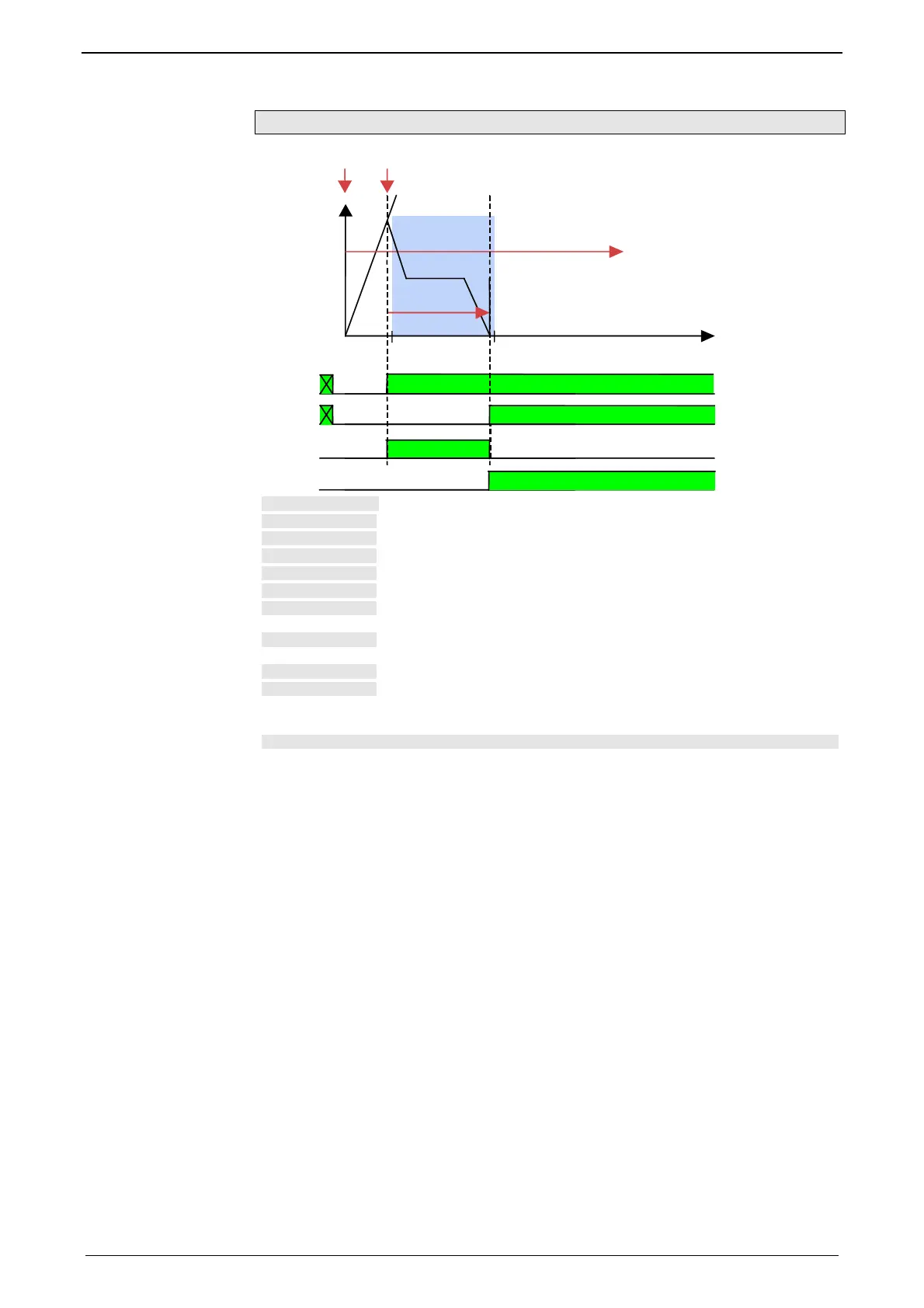

Example 4: Reg comes before the reg restriction window
v
t
Reg
RegSearch
StartIgnore StopIgnore
Start
1
2
active
RegMove
active
Regf
POS
Start
Start signal for reg positioning (Control word 1 Bit 4)
RegSearch:
Positioning for reg search
RegMove:
Positioning according to reg
StartIgnore:
Reg ignore window: (see page 143) beginning of the registration lockout zone
StopIgnore:
Reg ignore window: End of Registration lock-out zone (StopIgnore)
Reg:
Reg signal (I4 on X12/10)
Regf:
Signal: Reg mark detected
(Status word 1 Bit 15)
POS:
Signal: Position reached
(Output O1: X12/3 or status word 1 Bit 9)
1
Programmable status bits of RegSearch (only for positioning with set selection)
2
Programmable status bits of RegMove (only for positioning with set selection)
As from the mark, the drive moves on relatively by the offset defined in RegMove
and then stops at that position (same behavior as in exampe 1).
