Parker EME
Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
1: Operating mode switch (see on page 167) (Single / Normal / Auto / Roll)
2: Setting the time basis (see on page 167)
3: Starting / Stopping the measurement (prerequisites are valid channel sources
and if necessary valid trigger settings.)
4: Setting channel (see on page 168) (Channels 1 ...4)
5: Special functions (see on page 169) (Color settings; memorizing settings and
measurement values)
6: Loading a measurement from Compax3: in the single mode you can close the
ServoManager after the activation of the measurement and disconnect the PC from
Compax3 and upload the measurement later.
7: Setting triggering (see on page 169)
8: Copy osci display to clipboard
9: Zoom of the osci display (1, 2, 4, 8, 16 fold) with the possibility to shift the zoom
window (<,>)

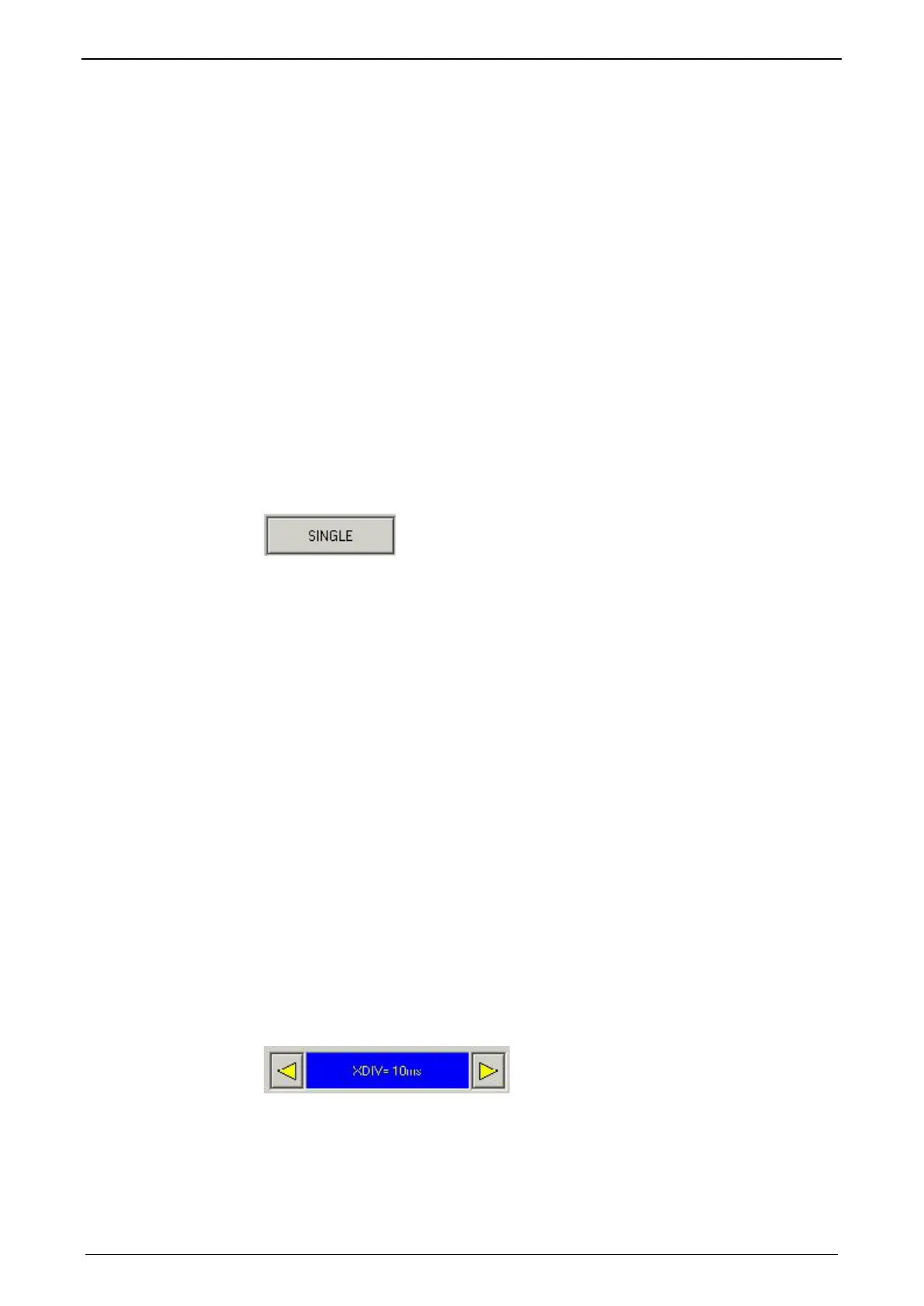

Oscilloscope operating mode switch:
Oscilloscope operating mode switch:
Selection of the desired operating mode: SINGLE, NORMAL; AUTO and ROLL by
clicking on this button.
Changing the operating mode is also permitted during a measurement. The current
measurement is interrupted and started again with the changed settings.
The following operating modes are possible:
SINGLE Single measurements of 1-4 channels with trigger on a freely
selectable channel
NORMAL Like Single, but after each trigger event, the measurement is
started again.
AUTO No Trigger. Continuous measuring value recording with the
selected scanning time or XDIV setting
ROLL Continuous measuring value recording of 1 .. 4 channels with
selectable scanning time and a memory depth of 2000 measuring
values per channel.
With SINGLE / NORMAL / AUTO, the measurement is made in Compax3 and is
then loaded into the PC and displayed.
With ROLL, the measuring values are loaded into the PC and displayed
continuously.
Setting the time basis XDIV
Setting the time basis XDIV
Depending on the selected operating mode, the time basis can be changed via the
arrow keys.
