Leak effect and windowing
If frequencies not corresponding to the frequency resolution are present in the
analyzed spectrum, the so-called leak effect can be caused.

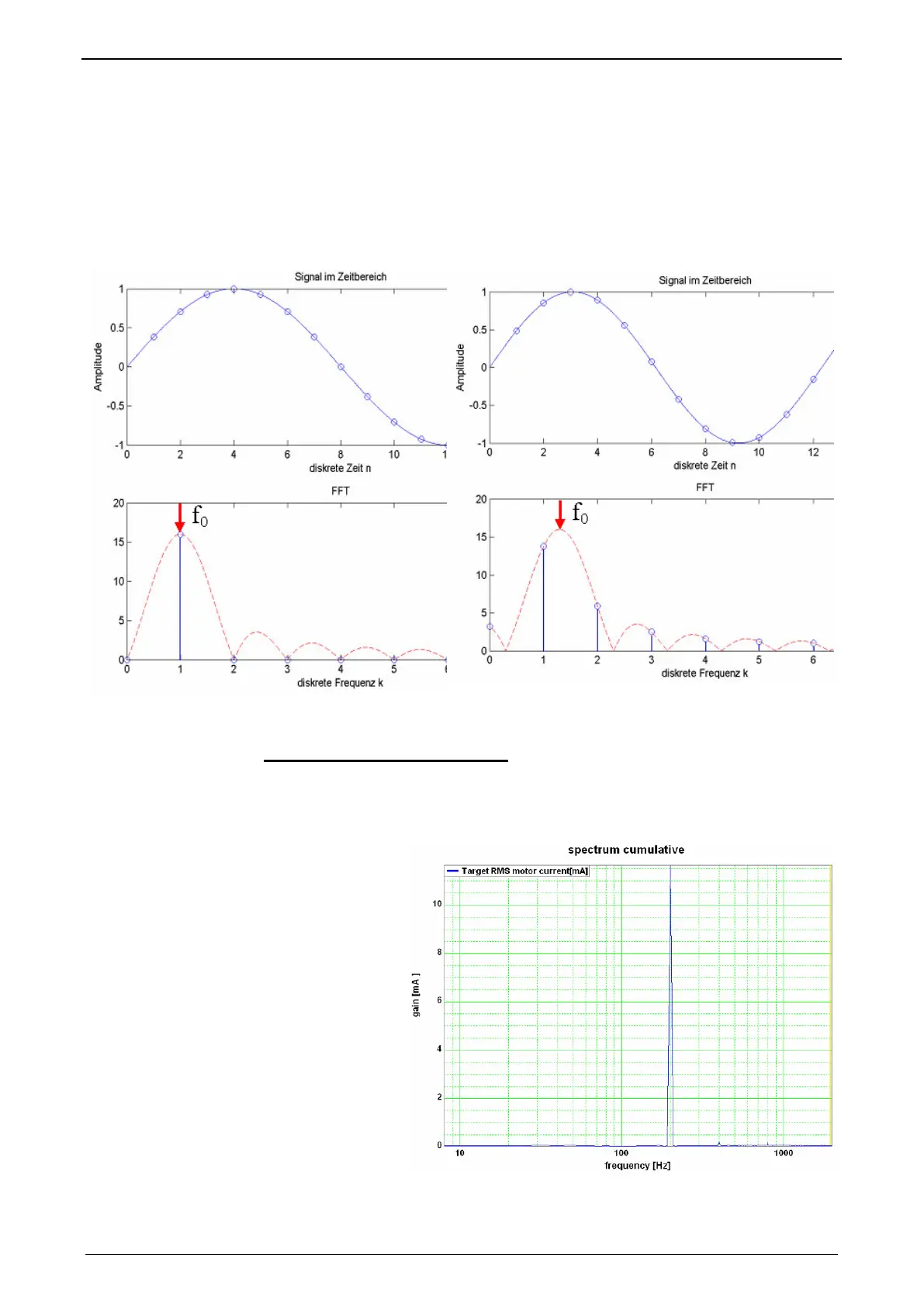

Display of the leak effect with the aid of a 16 point discrete Fourier transformation
Complete oscillation period in the scanning
period
Envelope without leak effect
Non complete oscillation period in the scanning
period
Envelope with leak effect
Sine at 200Hz without windowing
Consequence of the leak effect shown at the example of a sine signal.
(fA=4000Hz; N=500; => ∆f=8Hz
f0=200Hz = 25*∆f frequency corresponds to the frequency-resolution
The sine frequency is exactly on a multiple of the frequency resolution (200Hz /
8Hz=25). The spectrum is clearly separated and there are no leak effects visible.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
