Parker Compax3 User Manual

Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
81

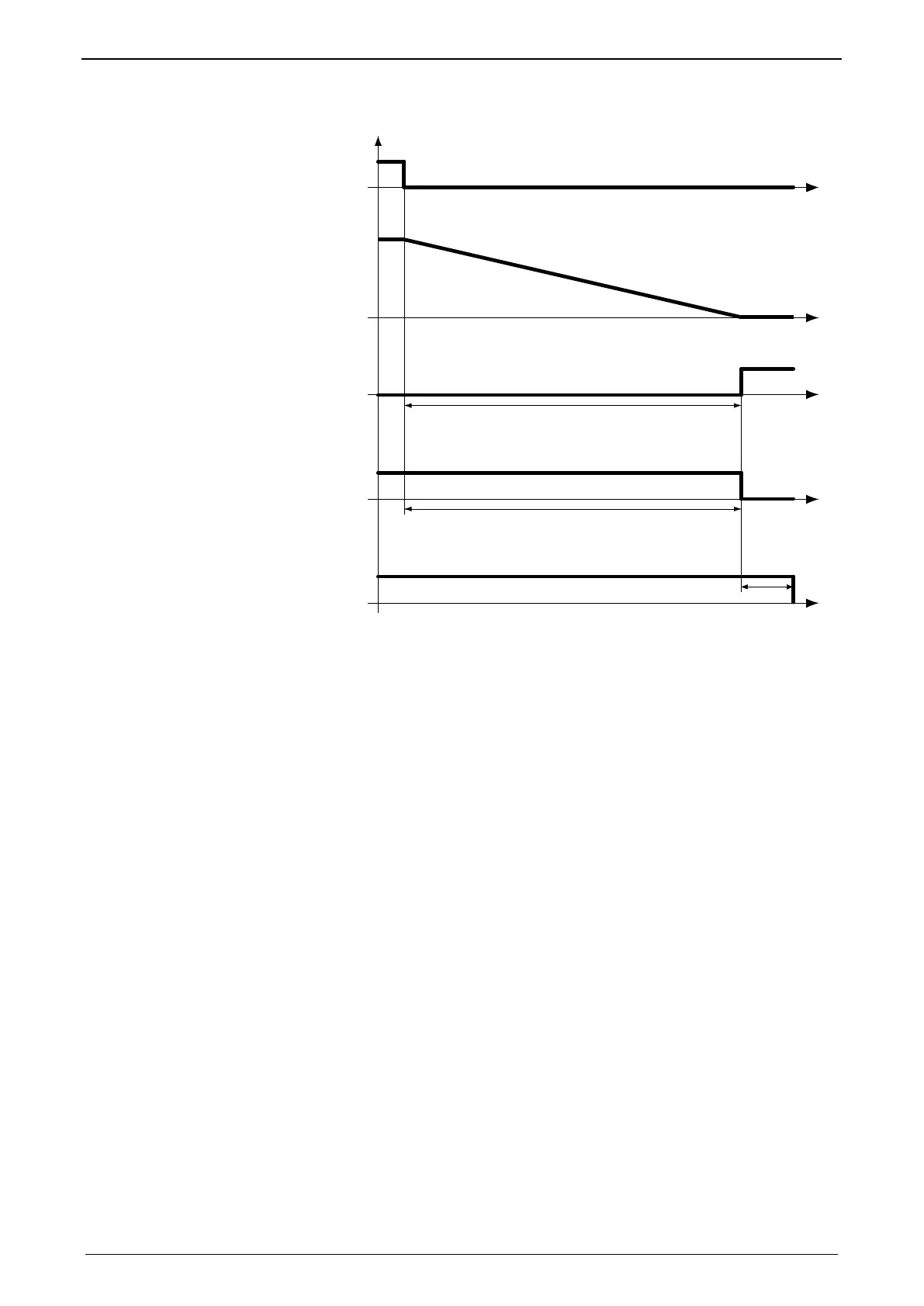

STO delay times
Input Channel 1
(Energize)
Speed
Feedback
Channel 1
t_deceleration
(configurable in Compax3)
t_delay_time
(configurable in UE410)
t_delay_relay_ch2
Input Channel 2
(ENAin)
Feedback
Channel 2
The deceleration time t_deceleration depends on the configuration of the
Compax3. It must be configured so that oscillation free bringing to standstill is
possible, depending on the mechanical load. The delay time t_delay_time must be
set in the safety control device UE410 so that t_delay_time > t_deceleration.
Only after the elapsing of the relay delay t_delay_relay_ch2, the STO function is
completely activated. The relay delay time t_deay_relay_ch2 is 15 ms.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
