Pentair INTELLITOUCH User Manual

IntelliTouch
®
Control System User’s Guide
45
Setting up Set Colors and Color Swim with SAm, SAL,
or FIBERworks (Continued)

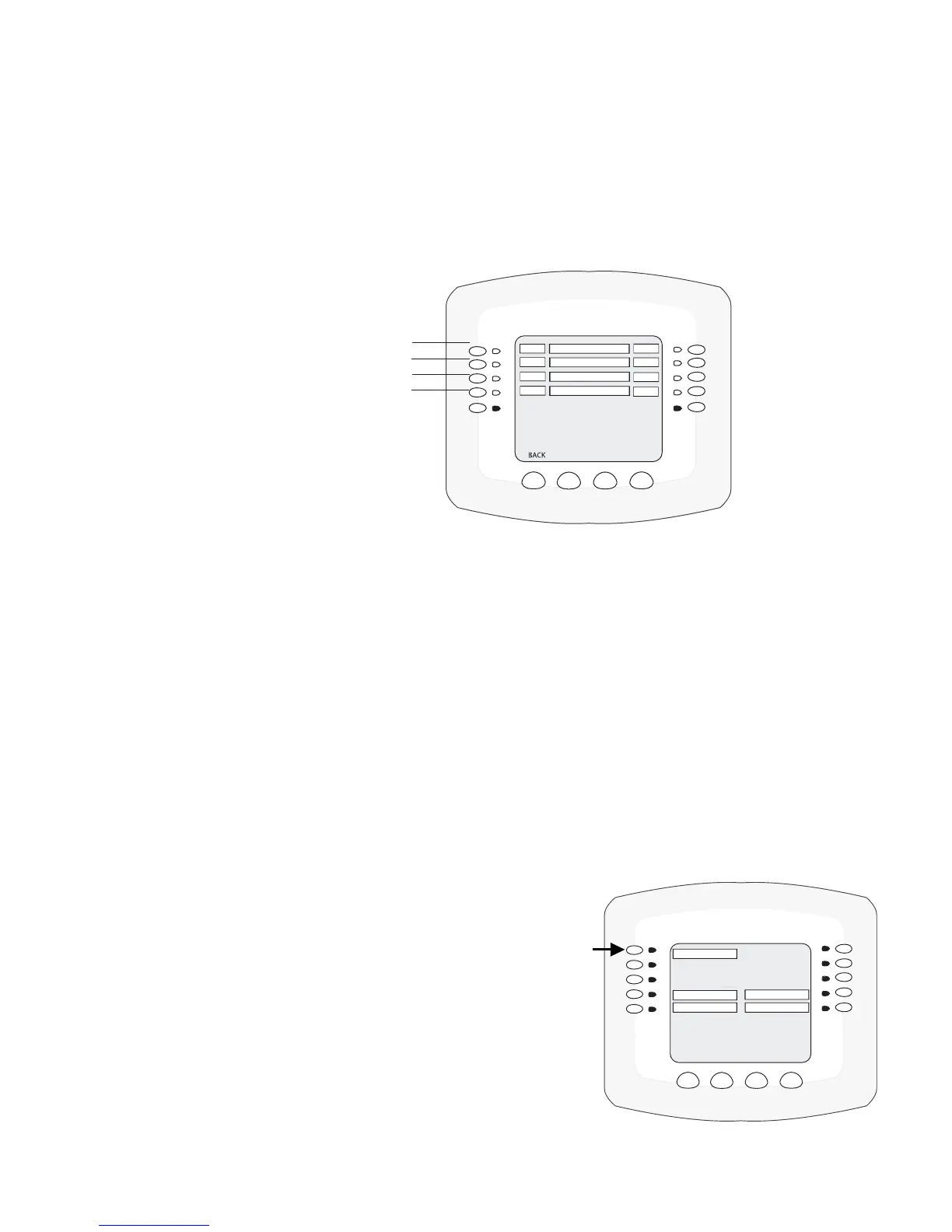

14. Press the top left or right side button to scroll through the available light circuits which can be used
for the Color Set and Color Swim feature. Stop at the circuit name you wish to use. The displayed
circuit names selections are circuit names that were previously assigned (when assigning a circuit
function). If there are no circuits available for selection, refer to “Assigning Circuit Names,
” on page 3, and “Assigning Circuit Functions and Freeze Protection” on pages 39 for more
information.
15. UsingtheColorSetfeature: Press the second button down from the top to scroll through the
color choices. Select the color of your choice. The selections are, White, Light Green, Cyan, Blue,
Lavender, Magenta and Light Magenta.
16.
SetLightPosition:Press the third button down from the top to set the position of the rst light in
the sequence. Position1 will lead all the other lights in the color changing sequence. Position2
follows Position 1 and so on. There are 12 position to choose from. More than one light may be
assigned to the same position number so that their colors may be synchronized. For example, to
make the colors swim right to left, make your right most light POSITION 1. You may need to go
back to Step 1 and scroll through your lights to nd the right most light, and set it as POSITION 1.
17. UsingtheColorSwimfeature: Press the forth button down from the top to set the time delay
between this light and the previous position. Use a higher delay time for lights spread further apart.
Try ve seconds for all lights and observe the effect. Use different time settings to achieve unique
lighting moods and effects.
18. Press the Save button to save the current setting for the rst
light. The previous “CONFIGURE-SELECTION” screen
is displayed. Continue to setup the light circuits. Press the
button next to “NEXT GROUP” to access the next screen
for an additional six circuits. Repeat step 1 through 5 to set
the light for POSITION 2 for Color Swim, and a new color
choice for Color Set. Press Save. Repeat this process until
all desired lights have set colors, positions and delays.
19. Press Back to view the Lights screen. “SPA SAL” on and
off switch is now assigned to the AUX 1 button.
LIGHTS
ALL OFF
SYNC
SAVE ALL ON
CONFIGURE
NEXT GROUP
SPA SAL
COLOR SET
COLOR SWIM
LIGHTS/CONFIG/SPA SAL
PREV
NEXT
PREV
PREV
PREV
NEXT
NEXT
NEXT
SPA SAL
WHITE
1ST POSITION
DELAY 5 SECS
SAVE EXIT
Select the light circuit
Select the color
Select the light position
Color Swim: Set the delay time
between lights
