THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 19
Feb 19/04
1L1
APPENDIX 1
DETAIL B
FWD
FUEL SELECTOR VALVE (REF.)
RIGHT
OUTBD
ARM
SCREW, AN515-632R12
DETAIL A
WASHER, NAS1149FN632P
NUT, NAS679A-06
BRACKET
ARM
SPACER
WASHER, NAS1149FN632P
NUT, NAS679A-06
POTENTIOMETER
SPRING
SPACER
SETSCREW
CABLE ASSEMBLY
LOOKING DOWN
SEE DETAIL A
SEE DETAIL B
CABLE ASSY.
CABLE ASSY.
BOLT, AN3-4A
WASHER, NAS1149F0363P
NUT, NAS679A-3W
FUEL LINE FROM
RIGHT WING
ADJUST CLAMP TO MAINTAIN
.125 INCH CLEARANCE BETWEEN
CABLE AND TORQUE TUBE
WITH FULL FLAPS SELECTED.
MAINTAIN A
MINIMUM CLEARANCE
OF 1/4 INCH IN
ANY FLAP POSITION
ROLL SERVO BRIDLE CABLE
MAINTAIN A MINIMUM CLEARANCE
OF 3/16 INCH IN ANY FLAP POSITION.
FLAP TORQUE TUBE
UP
FWD
LOOKING INBOARD
.125
SCREW, AN515-632R12

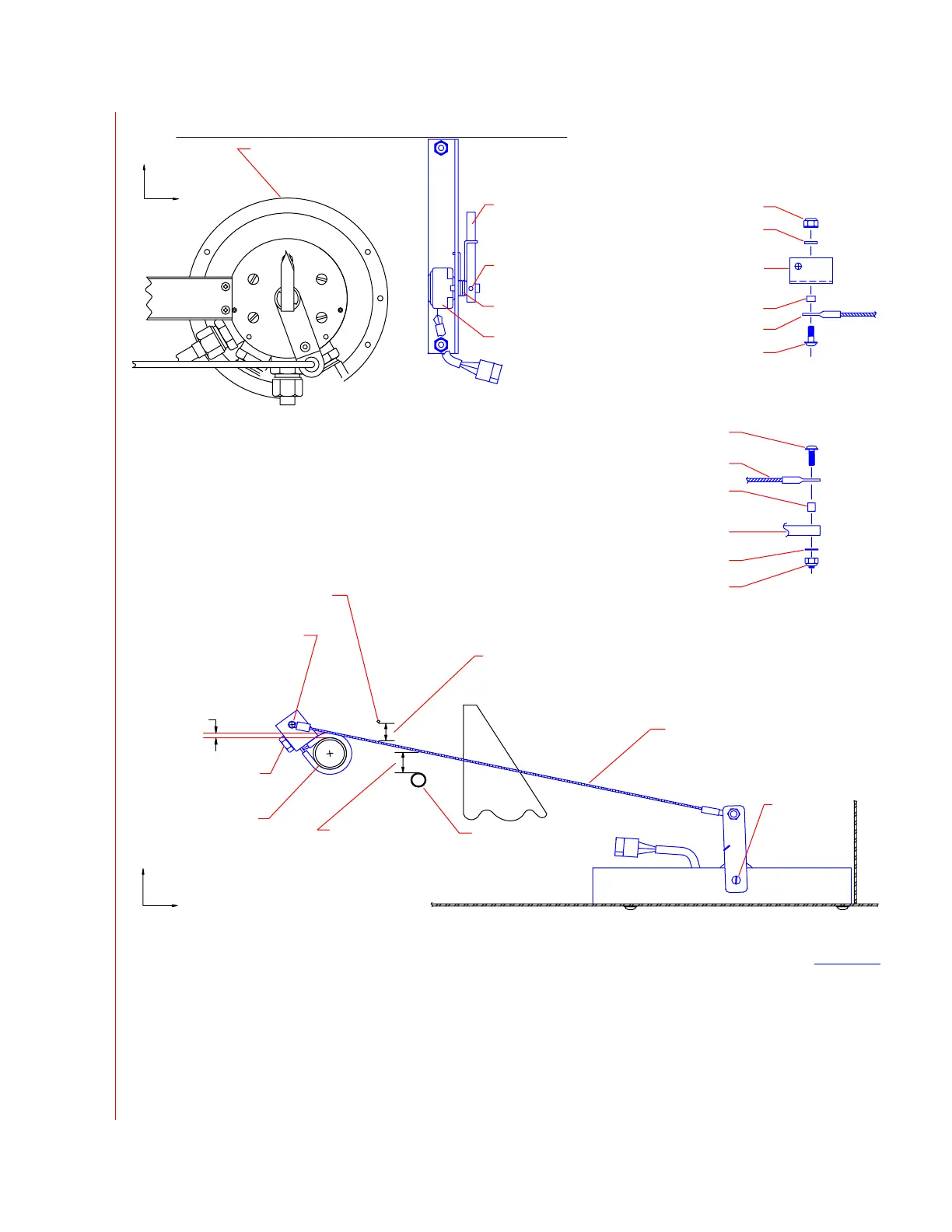

Flap Compensator Installation
Figure 8
Eff
ectivity
3232003 & up
3255001 & up
