(i) Separate rotor, fan and pulley from the front housing by removing hex nut. A special tool,
similar to that depicted in Figure 11, is required to remove nut. Remove pulley, fan and
rotor.
(j) Remove front bearing from housing by removing bearing retainer screws. The bearing is
normally a slip-fit. If stuck, support housing and press bearing from the housing. (Refer to
Figure 12.)

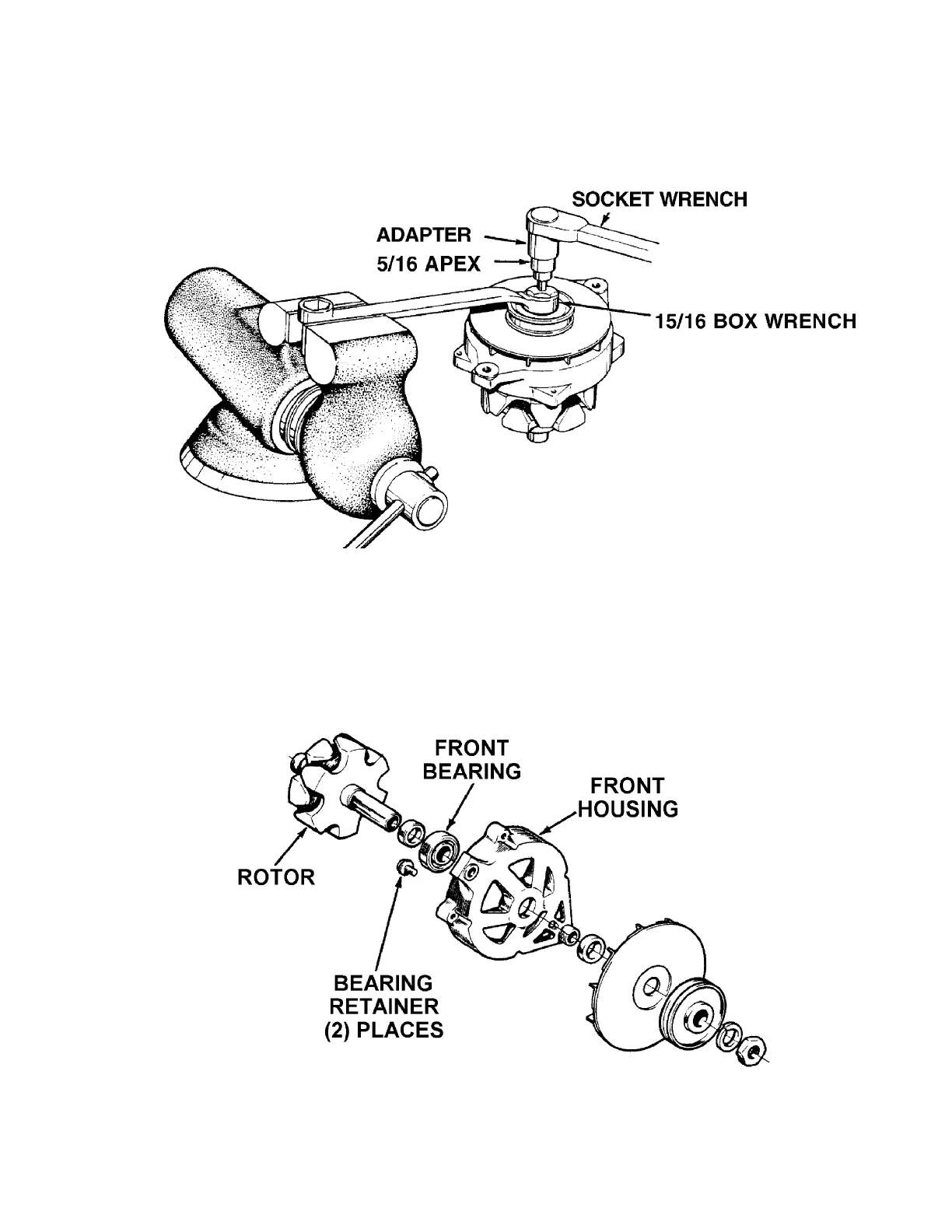

Front Housing Disassembly
Figure 11
Front Housing Components
Figure 12
