THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 7
Jun 1/03
2J17
27-20-00

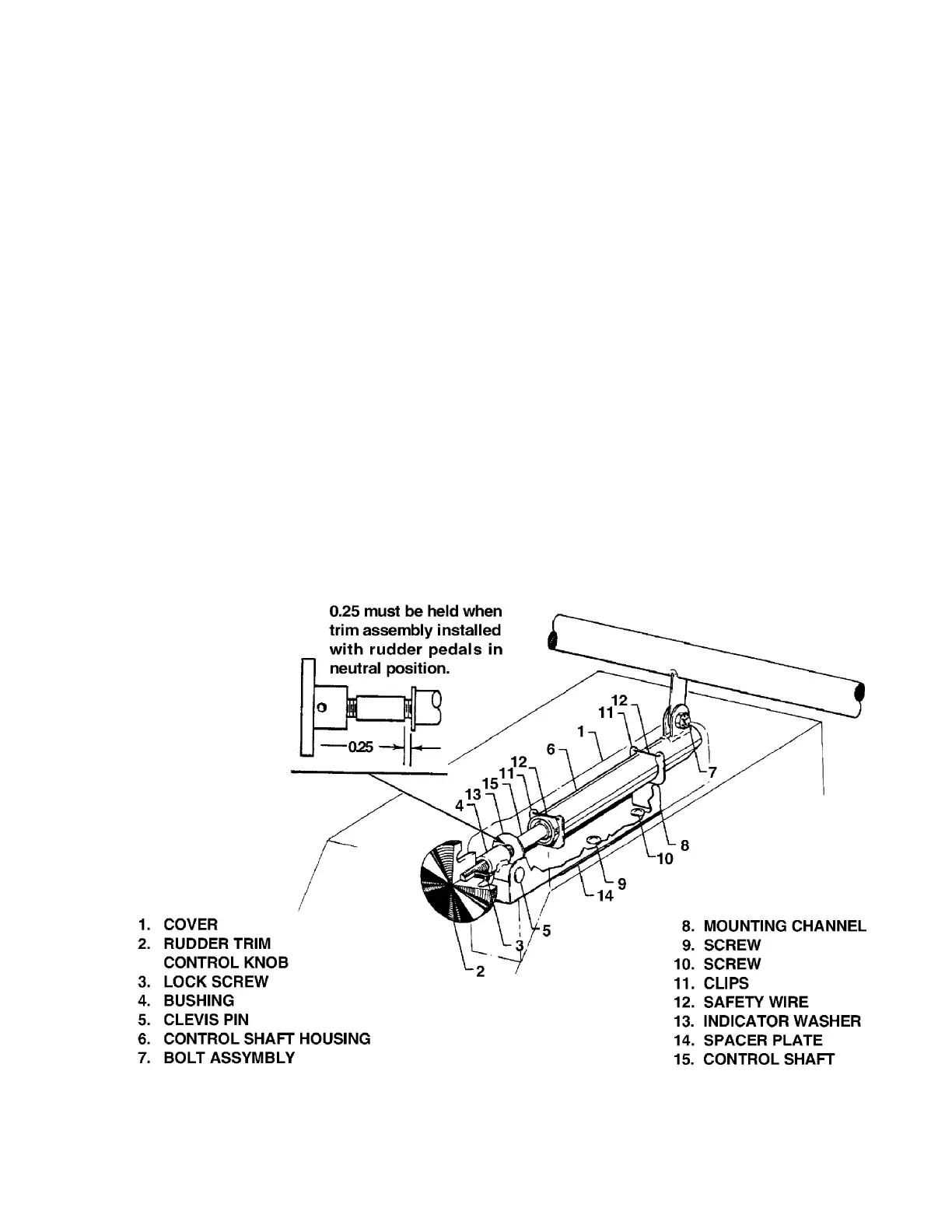

Rudder Trim Control
Figure 6
(3) Before attaching assembly to mounting channel, check that:
(a) Clips are installed so safety wire will be on top.
(b) Threaded bushing is installed on assembly shaft with welded attachment bushing forward
or toward housing.
(4) Attach housing lug to arm provided on rudder pedal torque tube. Secure with bolt, washer and
nut. Tighten nut only finger tight and safety with cotter pin.
(5) Clamp rudder pedals in neutral. Position threaded bushing and shaft extension in mounting
channel.
(a) Install the clevis pin and cotter pin.
(b) Check that dimensions noted in Figure 6 are maintained.
(6) Install fuel selector panel cover and cover attachment screws.
(7) Install rudder trim knob
(8) Ensure that neutral indicator aligns with neutral position on cover placard.
