QUANTA Rackgo X Series F03A User Manual

ESMS FUNCTIONAL SPECIFICATION LAUNCH KVM OVER IP
4-2
2. Press enter to open RKVM through web user interface (UI). See sample screen shot
below.

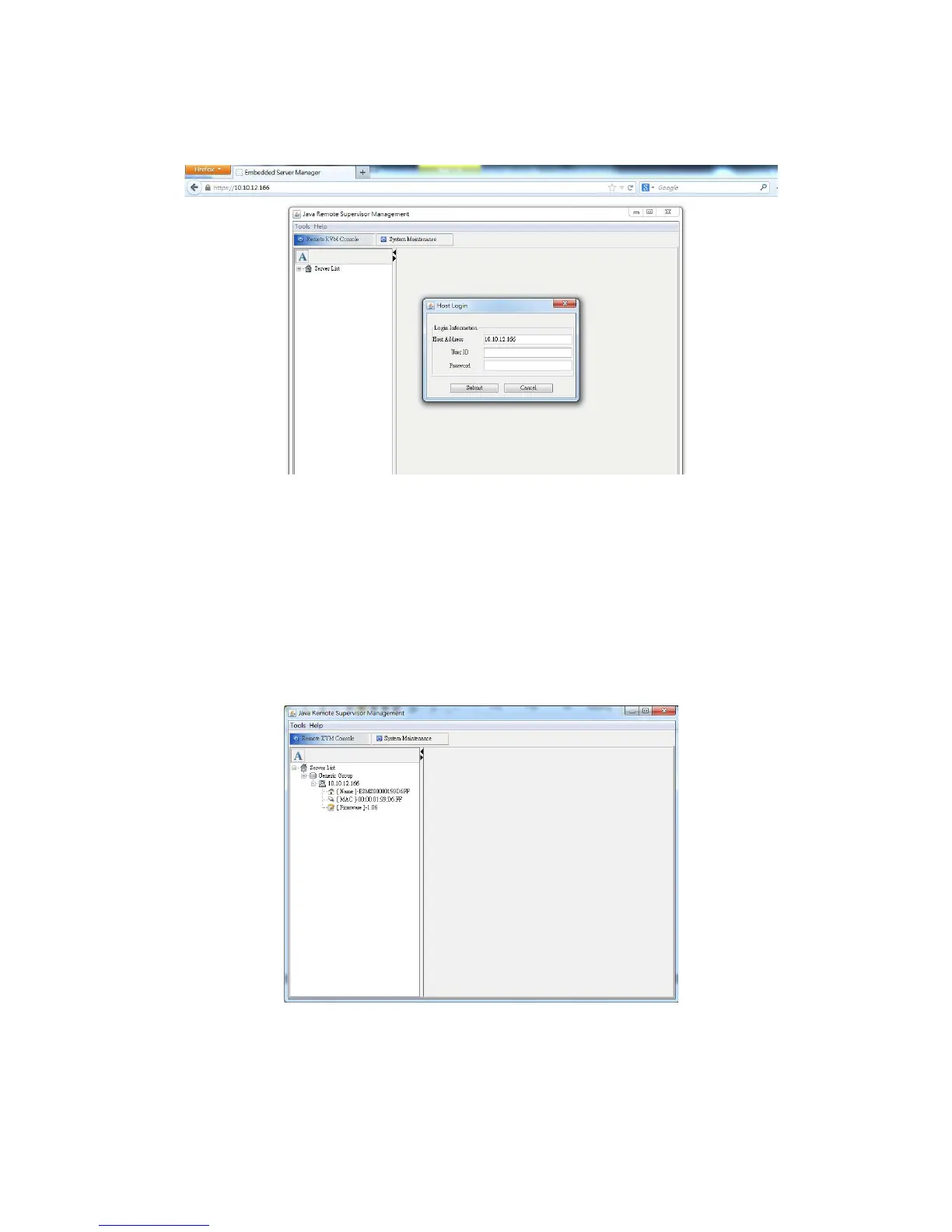

Figure 4-1. Launch KVM over IP
3. Upon launching, it will download jnlp file and call Java Web Start program to parse
the file. Then it will download Java Remote KVM jar File and perform Remote KVM
function.
4. By default, as indicated Figure 4-1, RKVM will show the login dialog when opened
and the “Host Address” field shall automatically contain BMC IP data.
5. Input correct “User ID” and “Password” and press Submit button
6. Java Remote KVM will be displayed as in Figure 4-2.
Figure 4-2. Java Remote KVM at PC console on Windows platform
