INSTALLING A PROCESSOR INSTALLING HARDWARE
2-27
3. Lift and remove the processor.

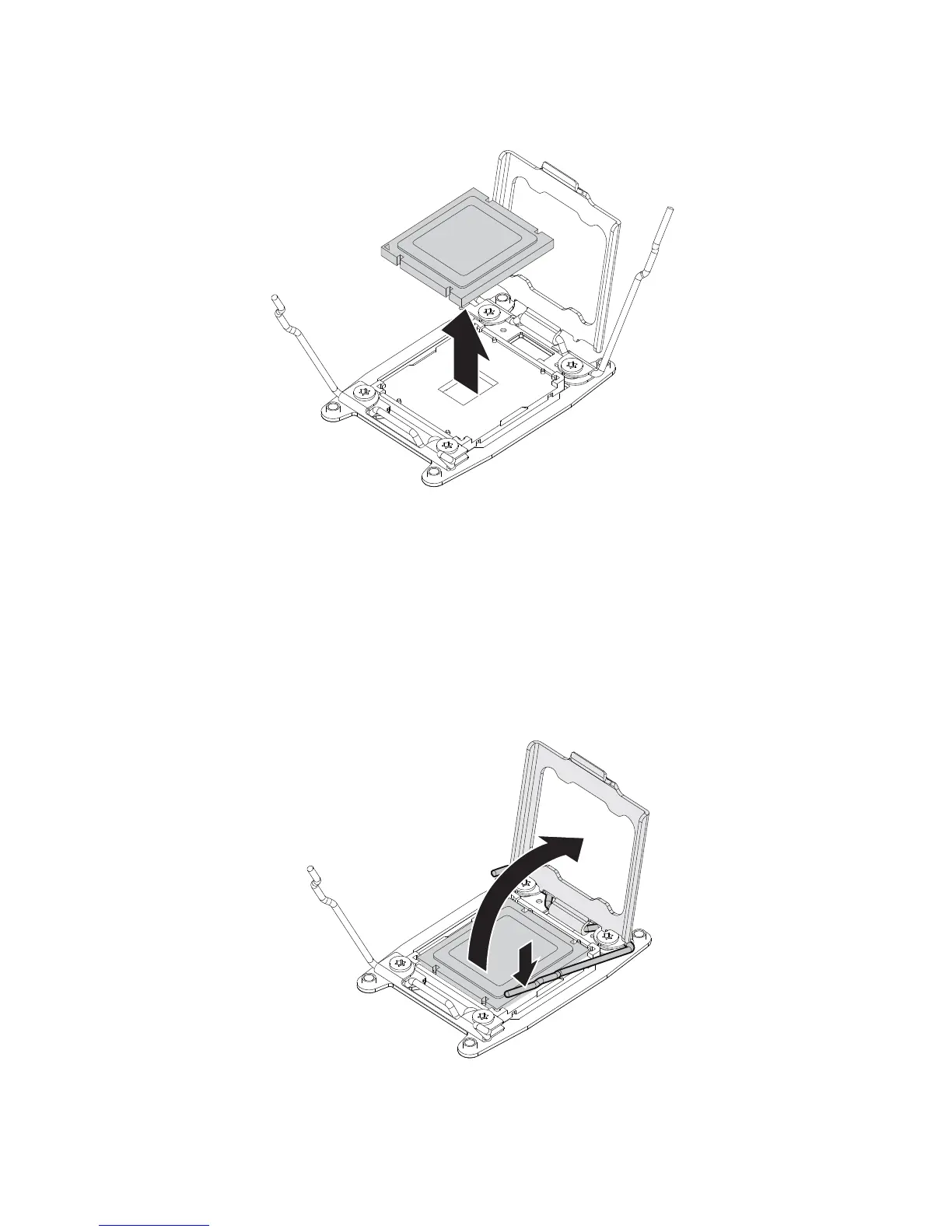

Figure 2-37. Removing Processor
Installing a Processor
1. Open each of the processor locking levers in the order indicated, and then open the
processor cover.
2. Align the gold triangle identifying pin 1 of the processor with the triangular cutout
of the processor, and the indents on processor with the tabs on the socket.
3. Lift the processor load plate.
Figure 2-38. Installing Processor
