QUANTA Rackgo X Series F03A User Manual

SYSTEM OVERVIEW ABOUT THE SYSTEM
1-5
Node Overview

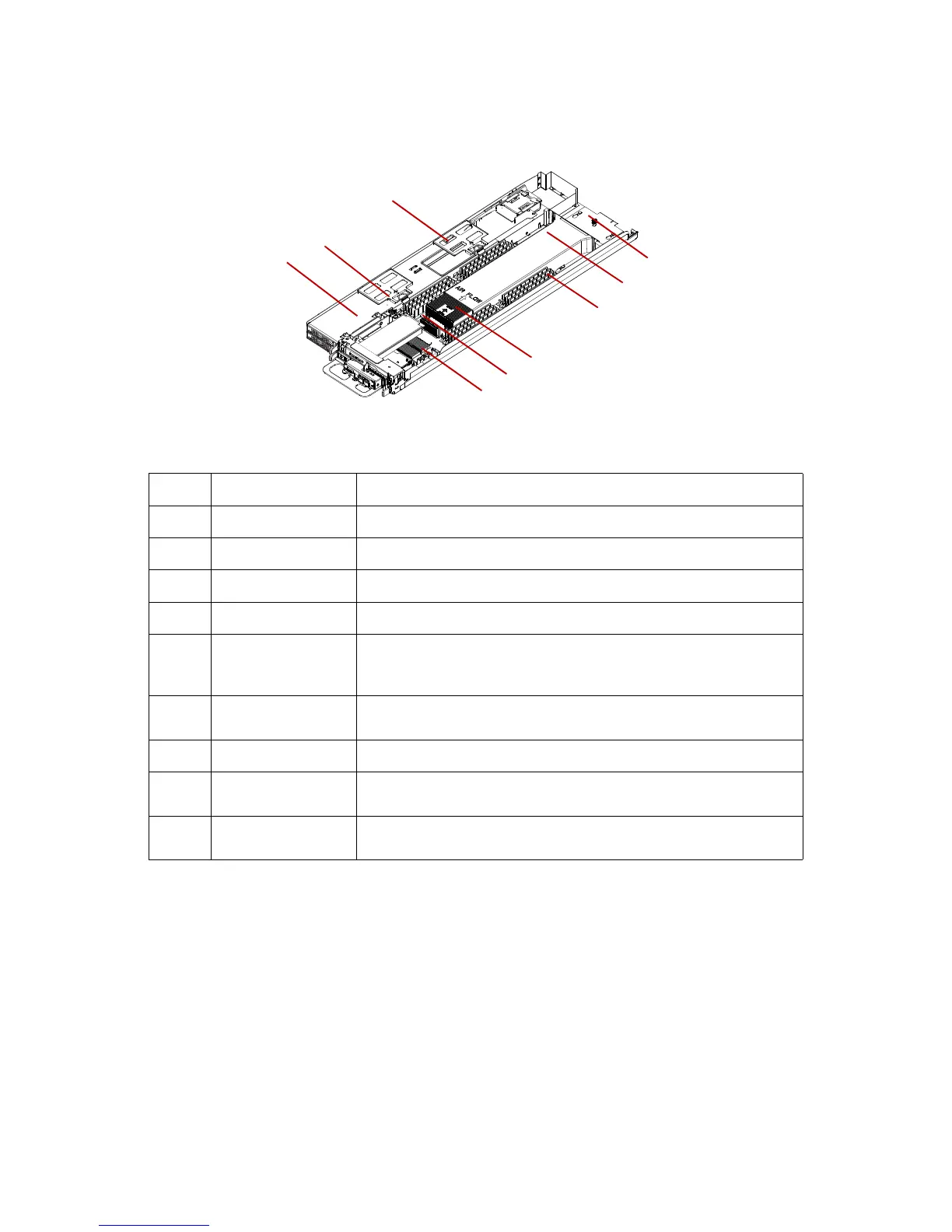

Figure 1-4. Node Component Overview
Table 4: Component Overview
NO.ITEM DESCRIPTION
1 Interposer board A board connects both motherboard and middle plane board
2 Air duct Direct the air flow on the processor
3DIMM Memory modules
4 CPU Support the computing power to system
5 Mainboard
A printed circuit board that implements the components like CPU
socket, memory slots, chipsets, expansion slots and I/O ports to provide
the system hardware features
6
Mezzanine board
connector
Connects to Quanta's OCP Mezzanine board (optional)
7 HDD Tray Tray that supports
up to two SAS/SATA hard disk drives
8 PCIe riser bracket
Features one or two PCIe slots for the installation of expansion cards
(low-profile cards) (optional)
9iBBU
Intelligent Battery Backup Unit (optional) supports the storage PCIe
card (optional)
2
3
4
6
5
1
9
8
7
