QUANTA Rackgo X Series F03A User Manual

INSTALLING HARDWARE FAN MODULE
2-6
2.4 Fan Module
The system fan cage includes six (6) fan modules. The modules can be removed and
installed.
In the following illustration the fan modules are numbered as defined by the location on
the midplane board.

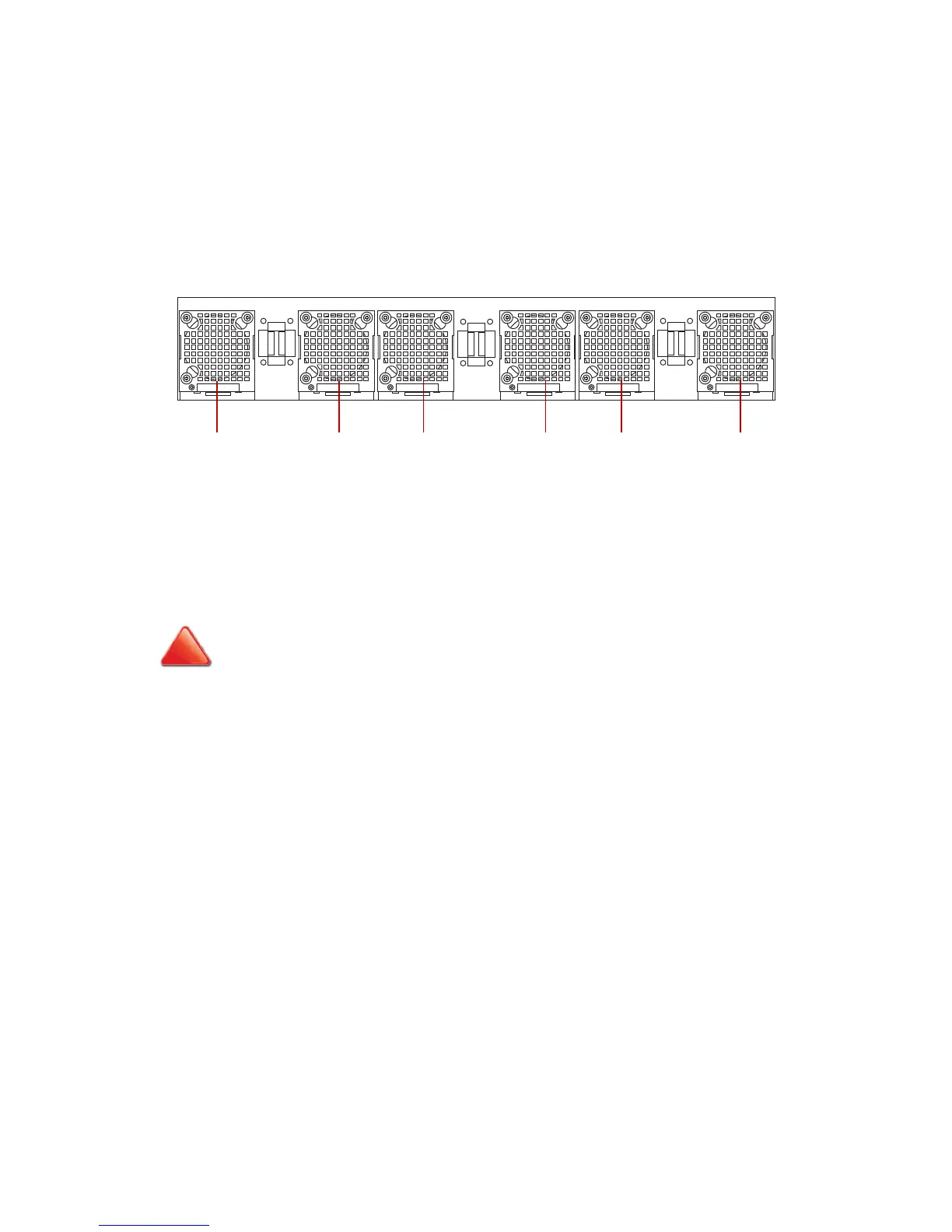

Figure 2-6. Fan Module Identification
Removing a Fan Module
The system supports six hot-swap fan modules.
1. Locate the fan assembly to remove.
2. Press up on the tray release lever on the fan tray.
CAUTION!
ENSURE ALL POWER IS DISCONNECTED FROM THE SYSTEM BEFORE PROCEEDING.
0 1 2 3 4 5
!
