FAN BOARD CONNECTORS AND JUMPERS
5-5
Fan Board

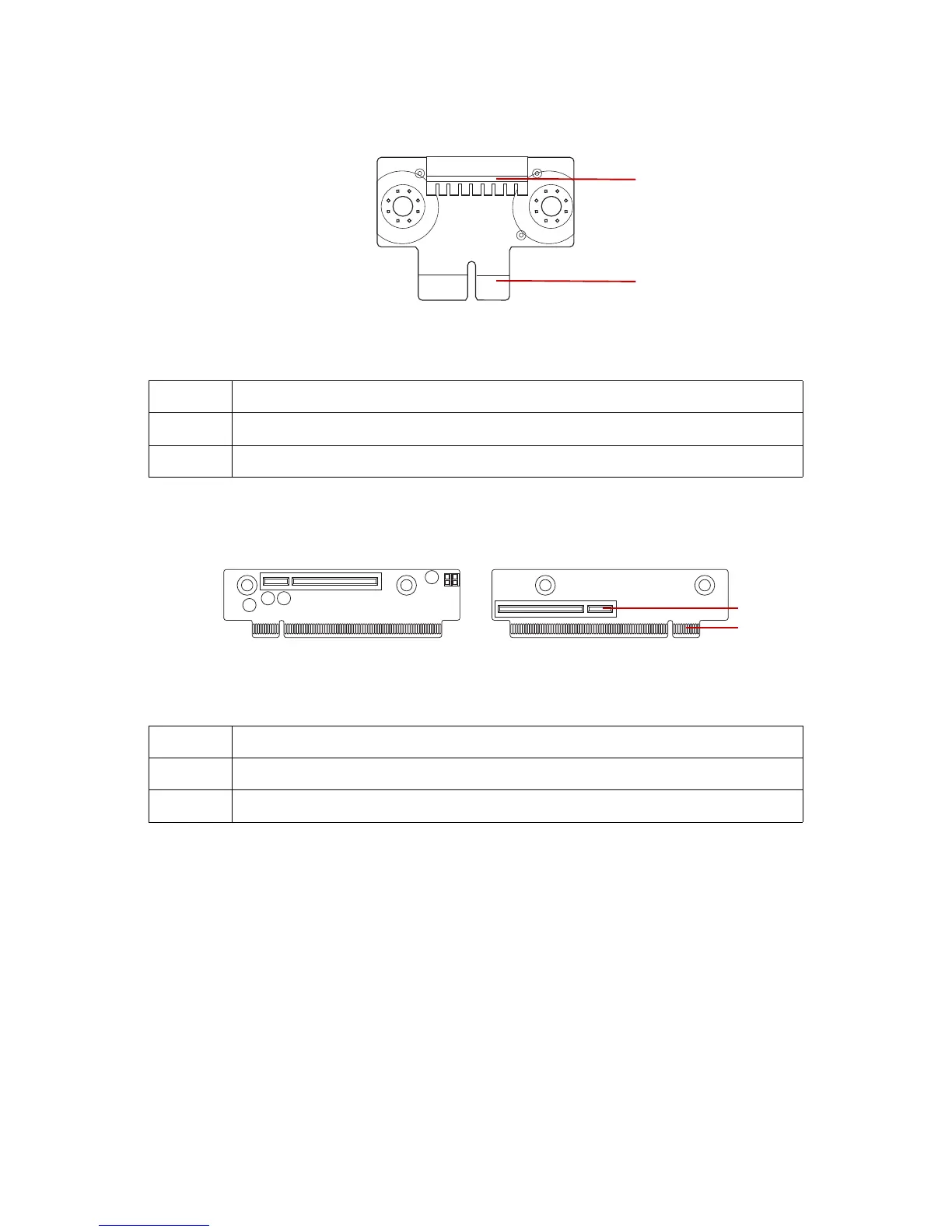

Figure 5-4. Fan Board Connectors (Front View)
\
PCIe Riser
Figure 5-5. PCIe Riser Connectors
Table 5: Fan Board Connectors
LOCATION DESCRIPTION
1Fan connector
2Midplane connector
Table 6: PCIe Riser Connectors
LOCATION DESCRIPTION
1PCIe slot
2 PCIe golden finger
1
2
1
2
