MEZZANINE BOARD (OPTIONAL)INSTALLING HARDWARE
2-31
2.11 Mezzanine Board (optional)
The mainboard has one slot for a single PCIe x8 mezzanine board.
Removing the Mezzanine Board
1. Power off the sled tray by sliding the sled tray out of the chassis. See Releasing the
Sled Tray on page 2-2.
2. Place the sled tray on a clean work surface.
3. Remove the securing screw from the bracket.
4. Remove the bracket from the mezzanine board.

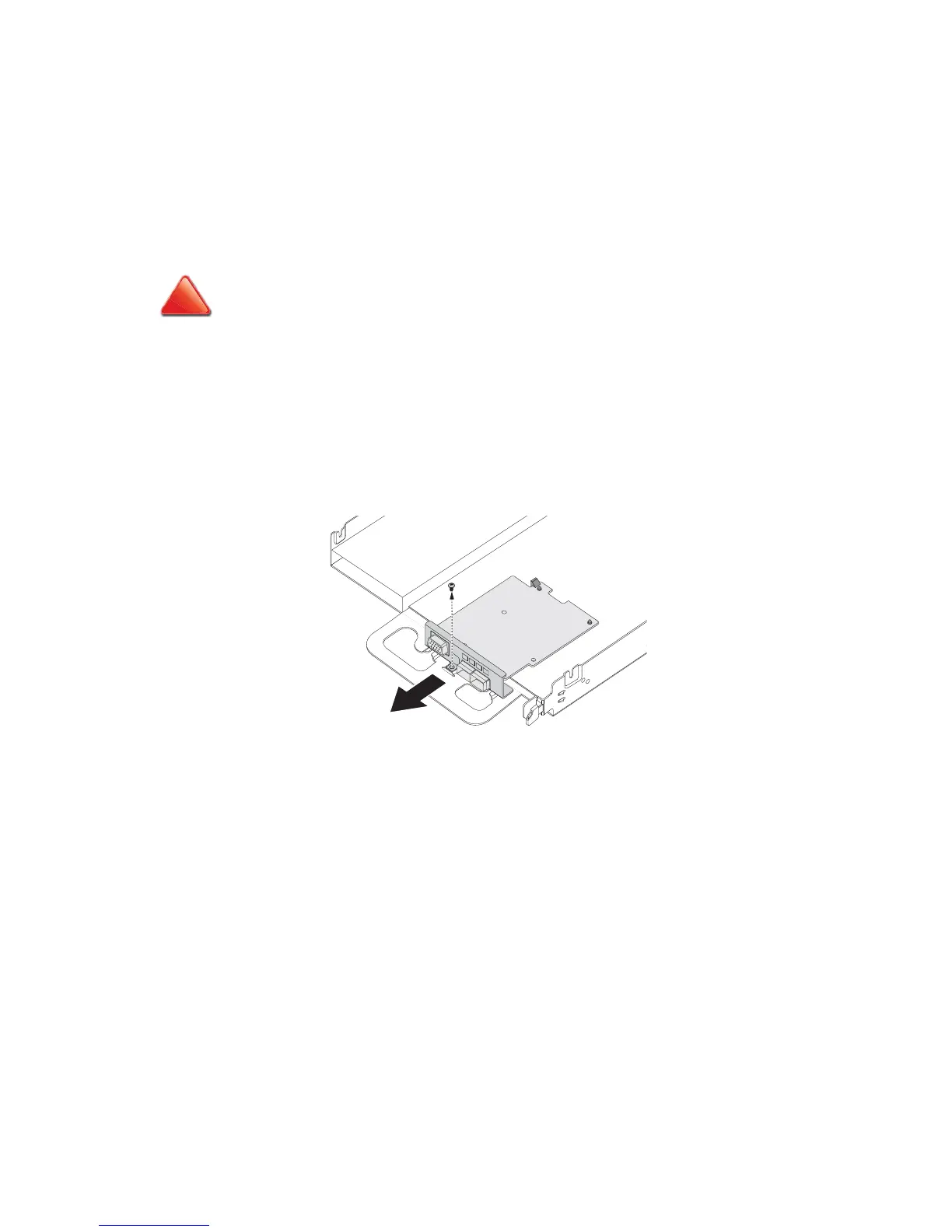

Figure 2-43. Removing the Mezzanine Board
5. Push the securing clips outward to free the mezzanine board and lift the mezzanine
board to release from the two securing clips.
6. Remove the mezzanine board from the mainboard.
7. Carefully turn the mezzanine board over and disconnect the USB cable.
8. Release the USB cable from the clip.
