INSTALLING HARDWARE INSTALLING THE INTERPOSER BOARD
2-30
1. Align the interposer board with the connector on the mainboard and slide until it is
seated correctly.
2. Tighten the captive screw.
3. Lift the sled tray and align it with the chassis bay.
4. Slide the sled tray in the chassis. See Securing a Sled Tray on page 2-2.

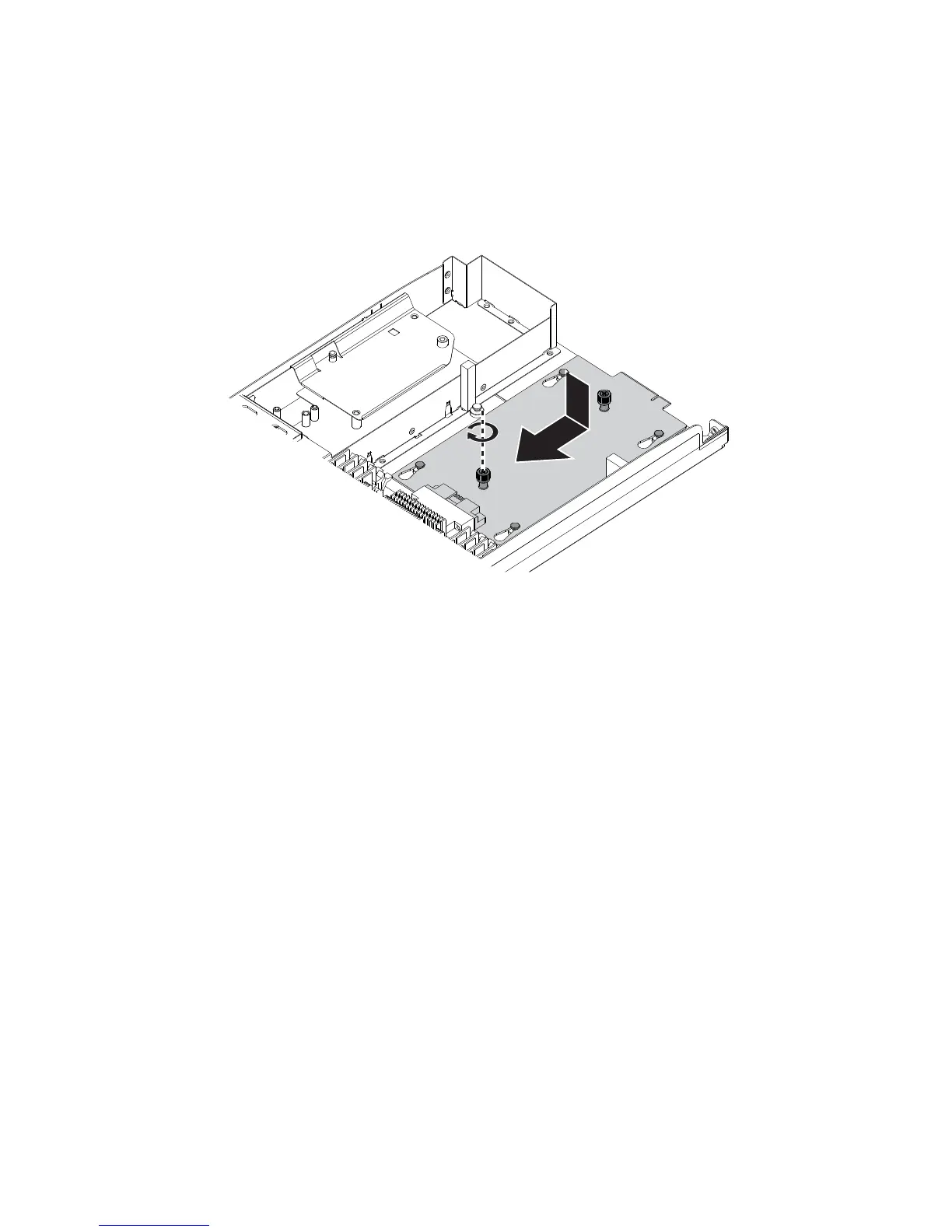

Figure 2-42. Installing the interposer board
