INSTALLING HARDWARE AIR DUCT
2-4
2.3 Air Duct
The air duct is a espcially designed to allows air flow to improve ventilation inside the sled
tray and prevent system overheat.
Removing an Air Duct
1. Locate the air duct on the sled tray.
2. Position your thumb over the bottom of the air duct, see following illustration.

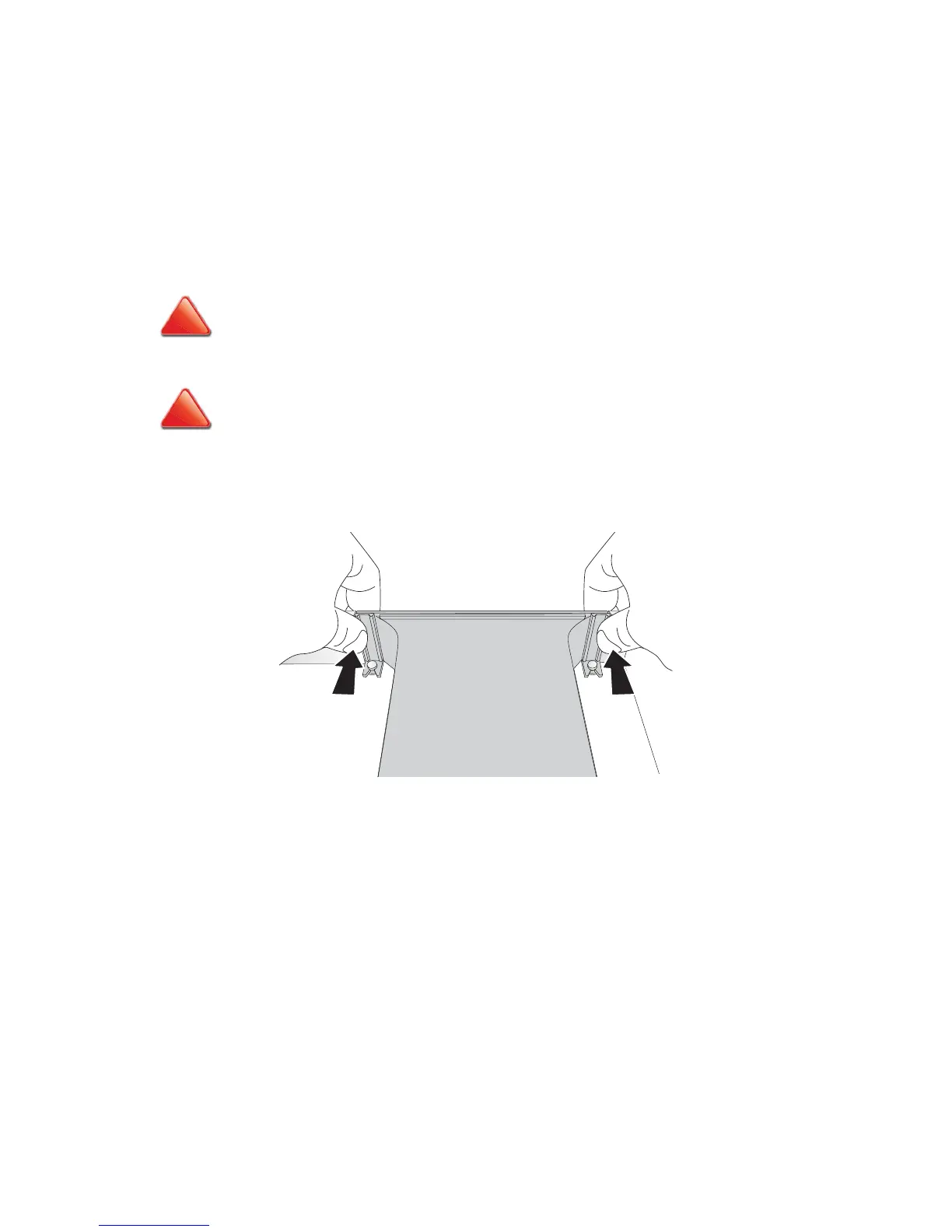

Figure 2-3. Removing an Air Duct
3. Press the air duct outward to release it from the standoffs.
CAUTION!
ENSURE ALL POWER IS DISCONNECTED FROM THE SYSTEM BEFORE PROCEEDING.
CAUTION!
TO PREVENT SYSTEM OVERHEATING, ENSURE THAT THE AIR DUCT IS CLOSED AND PROPERLY SEATED WHEN THE
SYSTEM IS POWERED ON.
!
!
