INSTALLING HARDWARE INSTALLING THE MIDPLANE
2-14
Installing the Midplane
Make sure the enclosure is on a clean work surface before starting this procedure.
1. Align the midplane board with the standoffs on the rear assembly.
2. Slide the midplane from right to left to lock the midplane on the rear assembly.

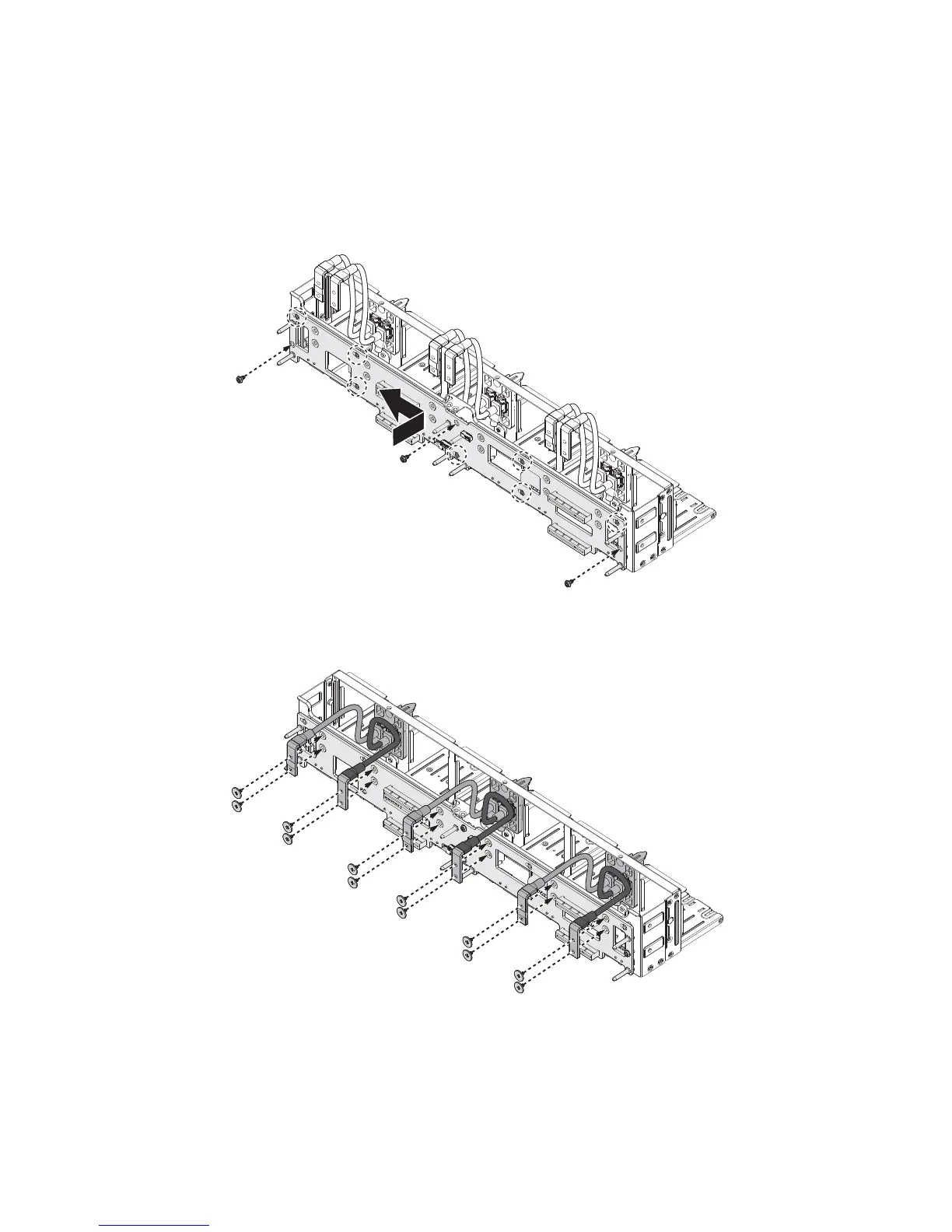

Figure 2-19. Installing the midplane
3. Secure the midplane and rear assembly with the provided screws.
Figure 2-20. Installing the midplane
