REMOVING THE MIDPLANE INSTALLING HARDWARE
2-13
5. Remove the bus bar cabling from the midplane.

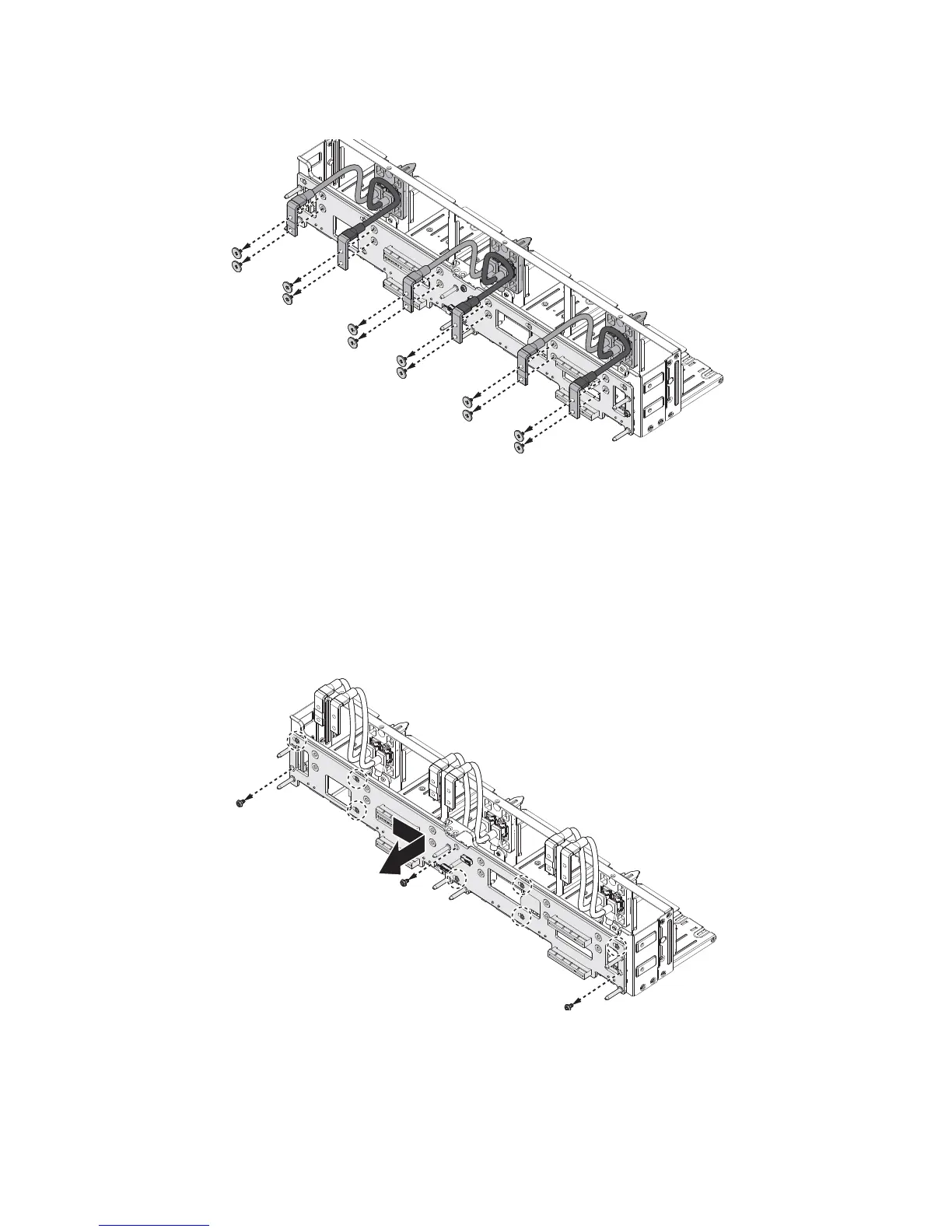

Figure 2-17. Removing Bar Cabling
6. Move the cabling out of the way to prevent interference with the remaining proce-
dure.
7. Remove the securing screws from the midplane and rear assembly.
8. Slide the midplane from left to right to unlock the midplane from the standoffs on
the rear assembly.
9. Remove the midplane board.
Figure 2-18. Removing the midplane
