INSTALLING AN IBBU INSTALLING HARDWARE
2-21
6. Remove screws securing the battery to the bracket.

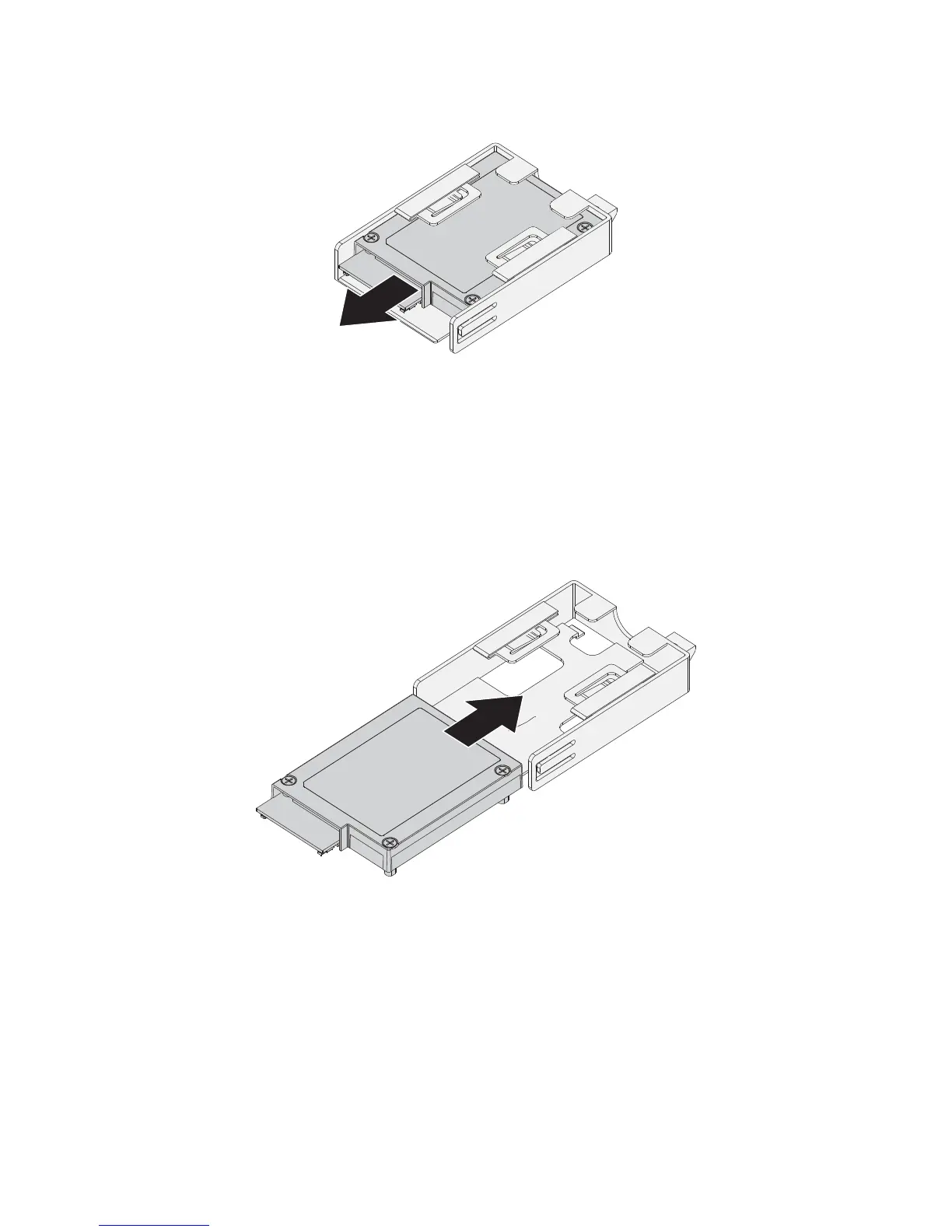

Figure 2-27. Removing the iBBU from the Bracket
Installing an iBBU
1. Locate the sled tray and remove it from the chassis. Place it on a clean work surface.
See Releasing the Sled Tray on page 2-2.
2. Align the iBBU battery and bracket screw holes, and install the iBBU on the bracket.
3. Secure with the provided screws.
Figure 2-28. Installing the iBBU Bracket
4. Align the iBBU assembly and chassis screw holes.
To Next Page
