INSTALLING HARDWARE INSTALLING AN IBBU
2-22
5. Secure with the provided screws

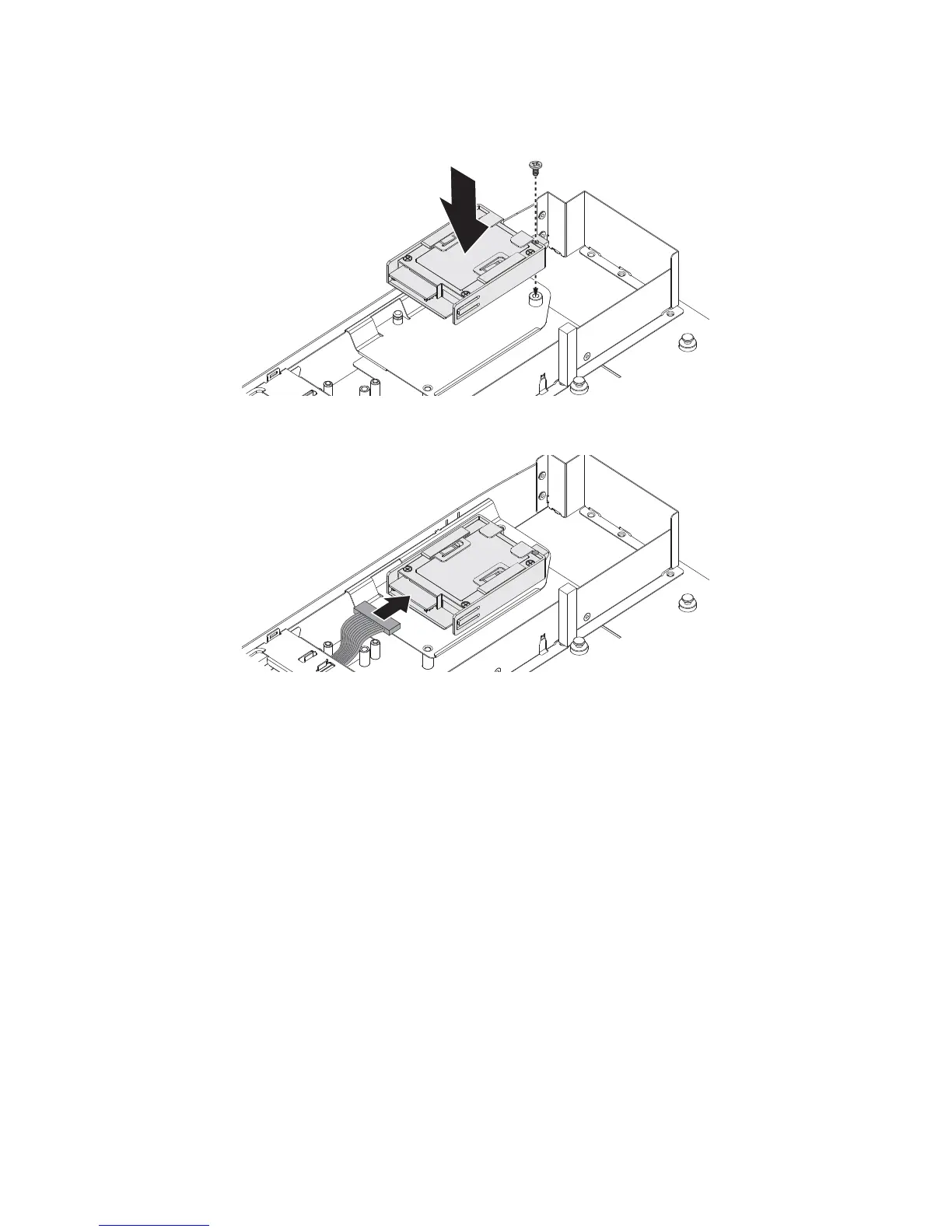

Figure 2-29. Installing the iBBU Assembly
6. Connect the iBBU cable to the battery
Figure 2-30. Connecting the iBBU Cable
7. Connect the iBBU cable to the expansion card.
8. Lift the sled tray and align it with the chassis bay.
9. Slide the sled tray in the chassis. See Securing a Sled Tray on page 2-2.
Note:
The iBBU can be connected to either a mezzanine card or an expansion card.
