2.10 Interposer Board
The interposer board is a board between the mainboard and the mid-plane board. It
passes power and fan signals between these boards.
Removing the Interposer Board
1. Power off the sled tray by sliding the sled tray out of the chassis. See Releasing the
Sled Tray on page 2-2.
2. Place the sled tray on a clean work surface.
3. Locate the interposer board behind the mainboard.
4. Loosen the captive screw.
5. Slide out and remove the interposer board.

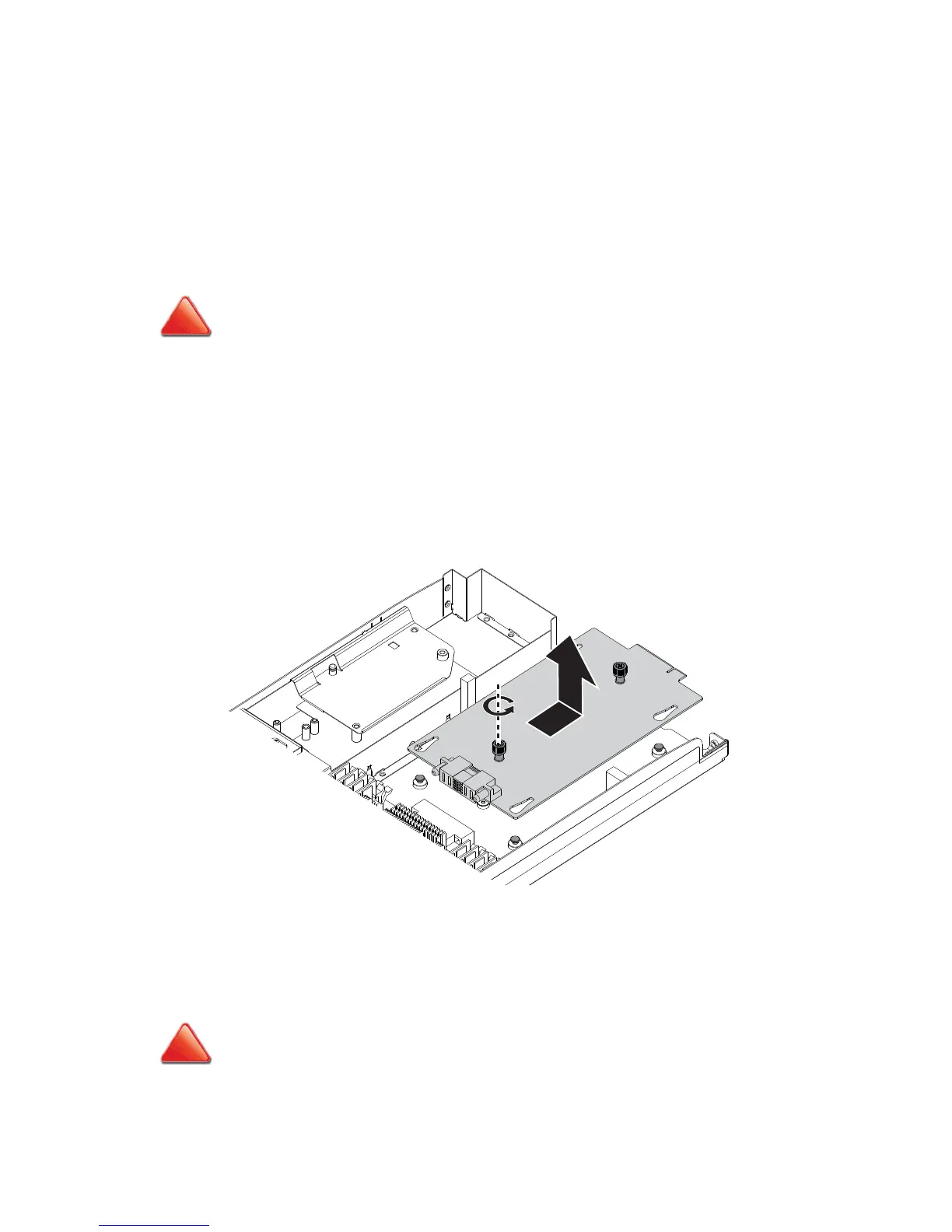

Figure 2-41. Removing the interposer board
Installing the Interposer Board
CAUTION!
ENSURE ALL POWER IS DISCONNECTED FROM THE SYSTEM BEFORE PROCEEDING.
CAUTION!
ENSURE ALL POWER IS DISCONNECTED FROM THE SYSTEM BEFORE PROCEEDING.
!
!
