QUANTA Rackgo X Series F03A User Manual

INSTALLING HARDWARE INSTALLING THE MEZZANINE BOARD
2-32
9. Place the mezzanine board in an anti- static bag.

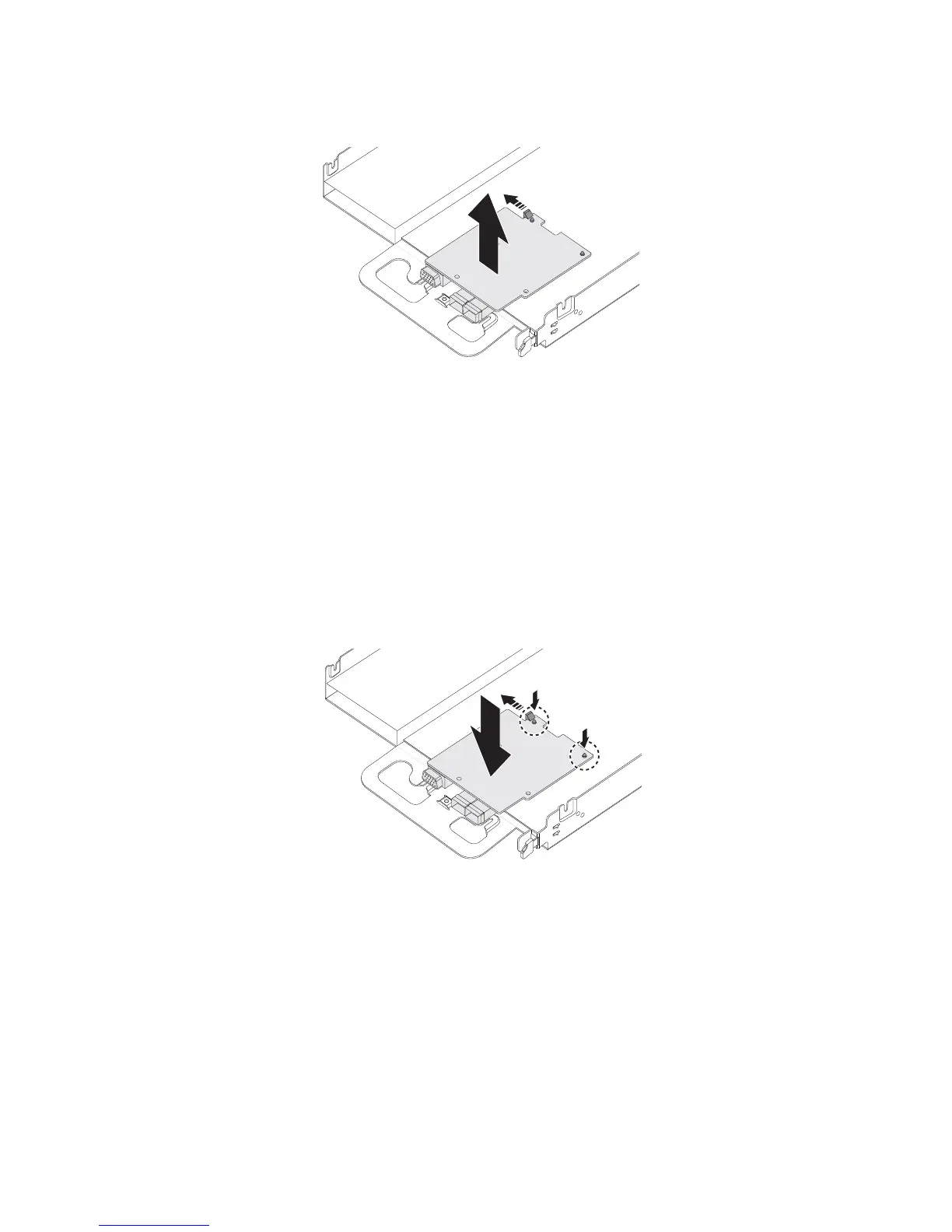

Figure 2-44. Removing the Mezzanine Board
Installing the Mezzanine Board
1. The mezzanine board requires the attachment of a mezzanine sponge (with mylar).
Align the sponge to the mezzanine board along the marked area.
2. Connect the USB cable to the mezzanine card connector.
3. Align the holes located at one end of the mezzanine card with the guide posts on
the securing clips.
4. Lower the mezzanine board and gently press down to secure with the clips.
Figure 2-45. Installing the Mezzzanine Board
5. Align the bracket with the I/O ports on the mezzanine board.
