INSTALLING HARDWARE MIDPLANE BOARD
2-12
2.5 Midplane board
The midplane board serves as a bridge between the power system and the nodes.
Removing the Midplane
1. Power off the sled tray by sliding the sled tray out of the chassis. See Releasing the
Sled Tray on page 2-2.
2. Place the sled tray on a clean work surface.
3. Remove the enclosure from the rack. Place the enclosure on a clean work surface.
4. Remove the rear assembly.

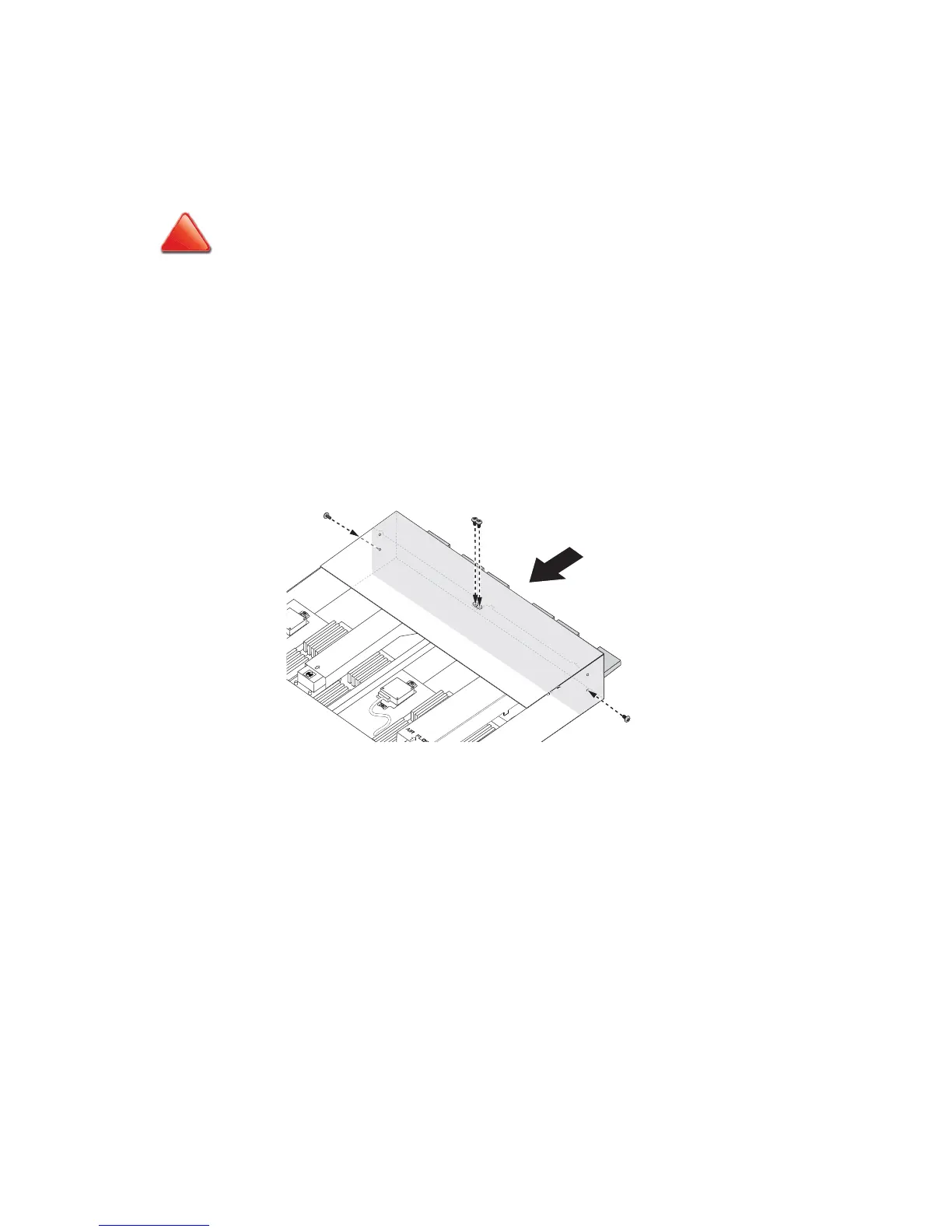

Figure 2-16. Removing rear assembly
CAUTION!
ENSURE ALL POWER IS DISCONNECTED FROM THE SYSTEM BEFORE PROCEEDING.
!
A
IR
FL
OW
CPU0C
P
U0
Air
A
IR
FL
OW
C
P
U
0
