QUANTA Rackgo X Series F03A User Manual

INSTALLING AN AIR DUCT INSTALLING HARDWARE
2-5
4. Slide the air duct and lift it up to remove.

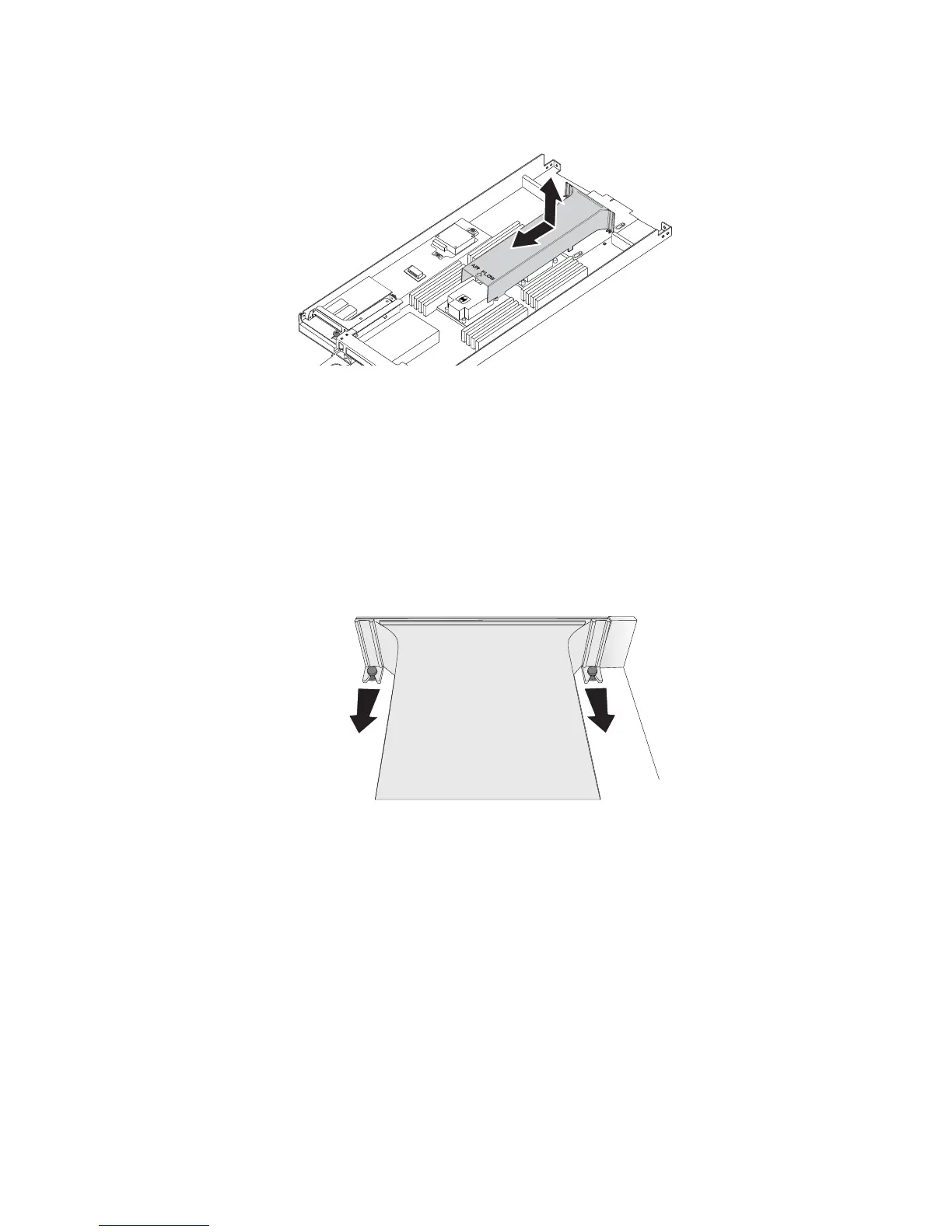

Figure 2-4. Removing an Air Duct
Installing an Air Duct
1. Align the air duct over the chassis, see the following illustration.
2. Align the air duct with the standoffs on the sled tray.
3. Slide the air duct under the standoffs to seat in place.
Figure 2-5. Installing Air Duct
CPU0C
P
U0
Air
