INSTALLING A MEMORY MODULE INSTALLING HARDWARE
2-19
3. Press down on both corners of the DIMM module until the ejector levers lock in
place.

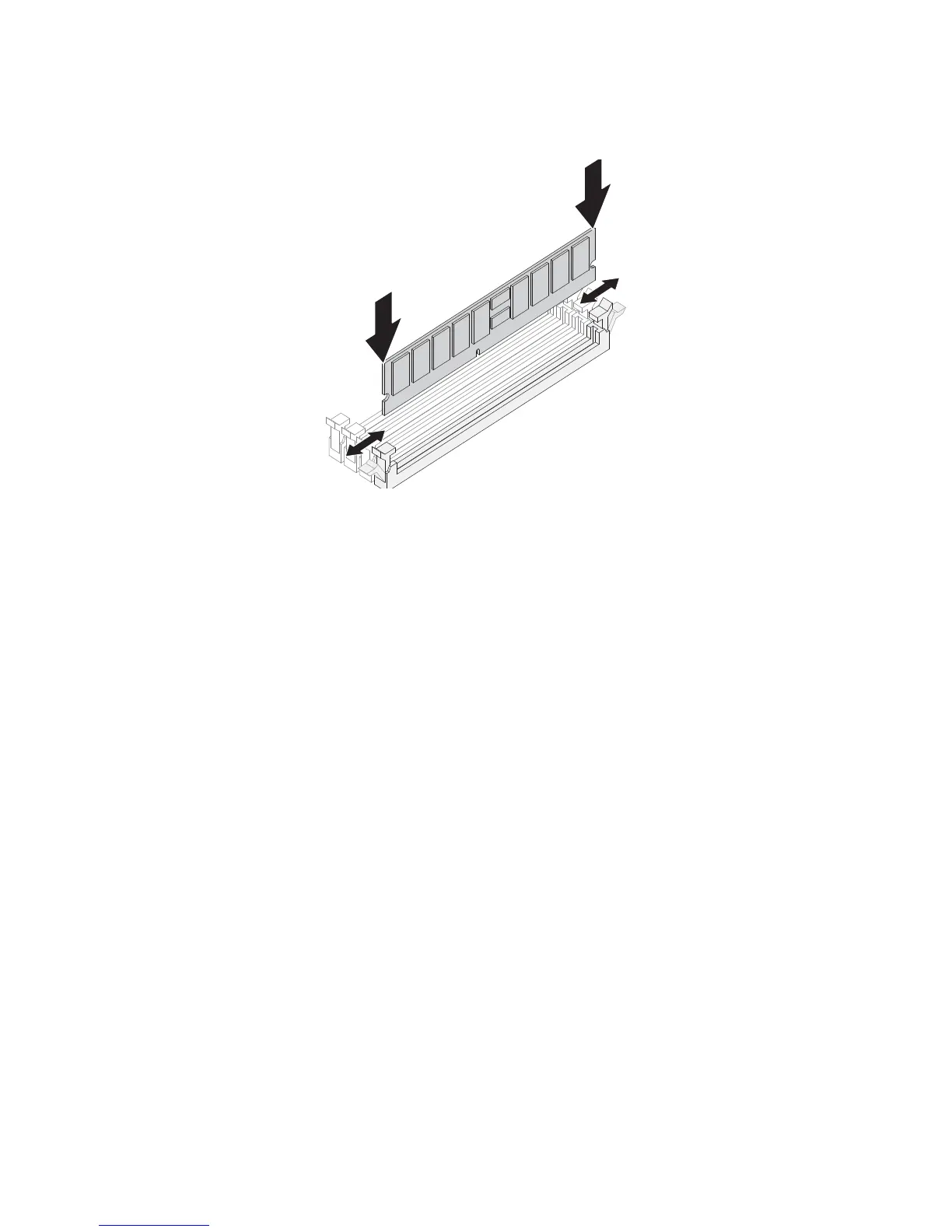

Figure 2-24. Installing Memory Module
4. Replace the air duct. See Removing an Air Duct on page 2-5.
5. Lift the sled tray and align it with the chassis bay.
6. Slide the sled tray in the chassis. See Securing a Sled Tray on page 2-2.
